Description

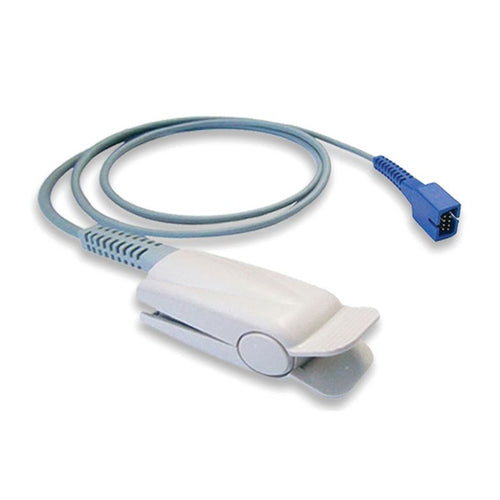

The ADC SpO Finger Sensor for ADView 2 Modular Diagnostic Station is available in both adult (#9005SP) and pediatric sizes (#9005SPDYS). The adult reusable finger sensor includes an 8-foot cable and DB-9M connector for adults and pediatric patients that weigh more than 88 lb (40 kg); Nellcor-compatible sensor DS-100A. The pediatric single-use finger sensor includes an 18" (4.6 m) cable and DB-9M connector for pediatric patients that weigh 22-110 lb (10-50 kg), 24/box, foam; Nellcor-compatible sensor D-20.
Note: This includes the finger sensor only and does not include the rest of the SpO module or the ADView 2 Modular Diagnostic Station.
Warranty: 90 Days.
The ADC SpO Finger Sensor can be used in conjunction with the ADC SpO Module which allows you to measure the oxygen saturation of arterial blood flow and displays the reading on the ADView 2.
Features
ADC SpO Finger Sensor for ADView 2 Modular Diagnostic Station Features
- Pulse oximetry module measures oxygen saturation of arterial blood flow in about 10 seconds.
- The ChipOx Nellcor Compatible SpO module displays pulse rate signal strength during measurement.
- Alternatively, choose the Masimo SET SpO module upgrade.
- Pediatric/multi-site sensor is also available.
Specifications
ADC SpO Finger Sensor for ADView 2 Modular Diagnostic Station Specifications
- SpO2 Module Specifications:
- Saturation Normal (no motion): 70-100%Arms +/- 2%.
- Saturation Motion: N/A.
- Low Perfusion: N/A.
- Pulse Heart Rate: 20-300 BPM: +/-3 BPM.
- Pulse Heart Rate w/motion: 20-300 BPM: +/-3 BPM.
