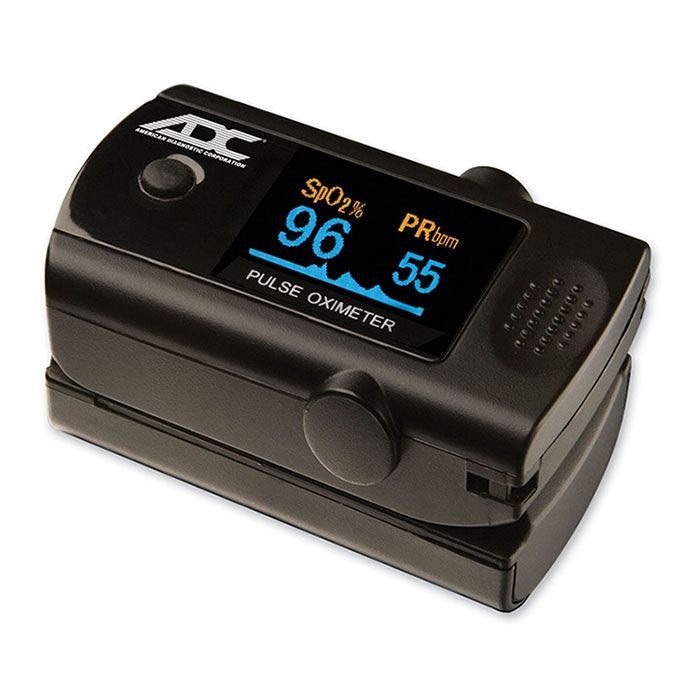

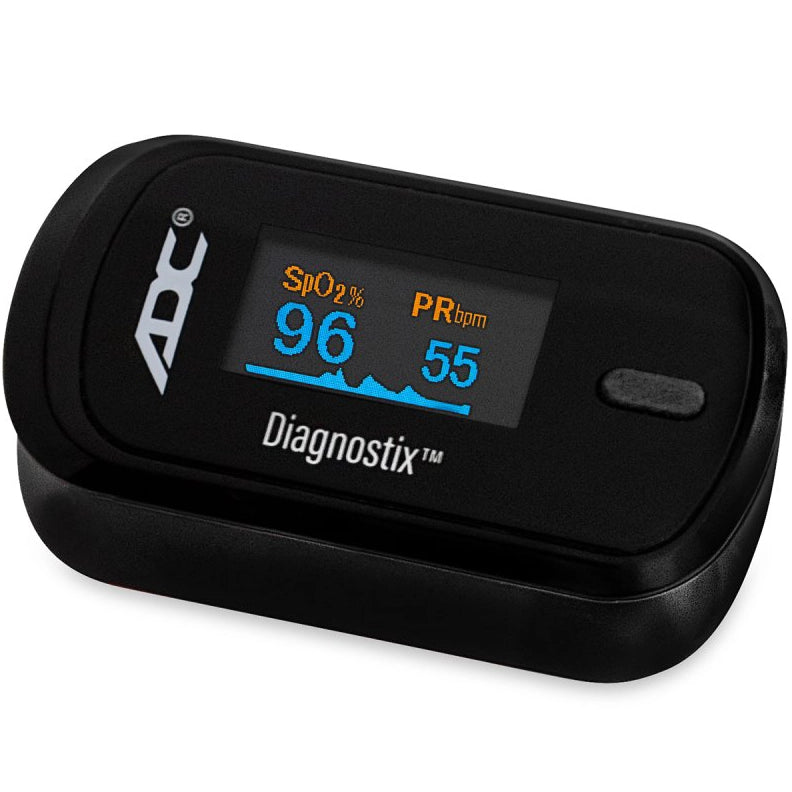

ADC Diagnostix 2100 Fingertip Pulse Oximeter

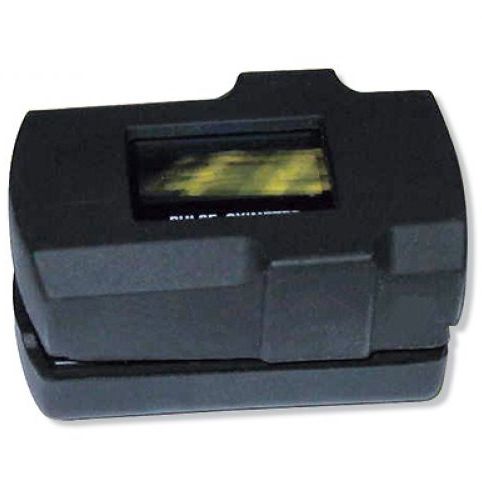

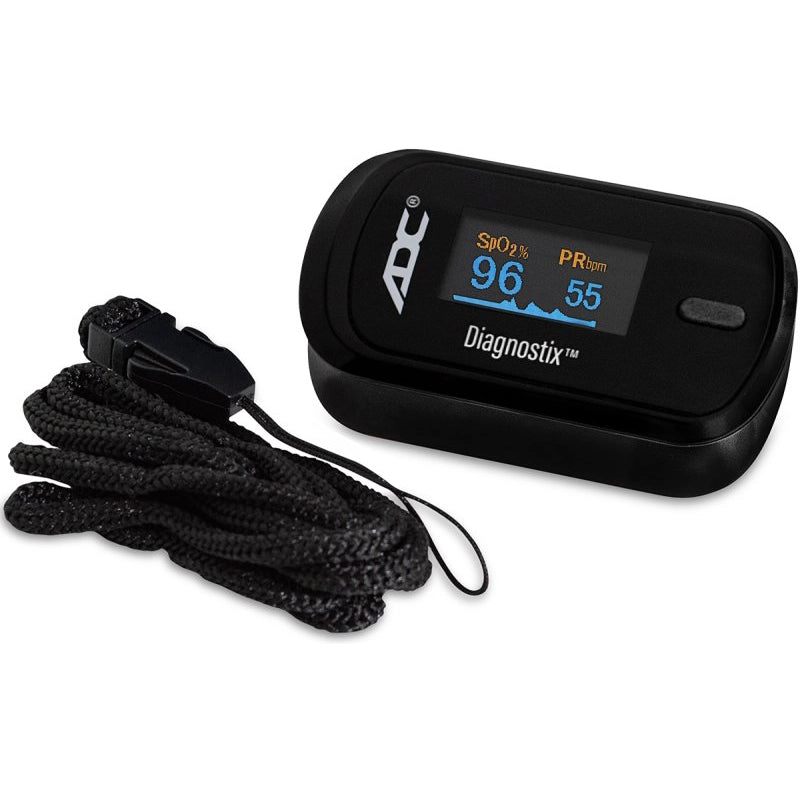

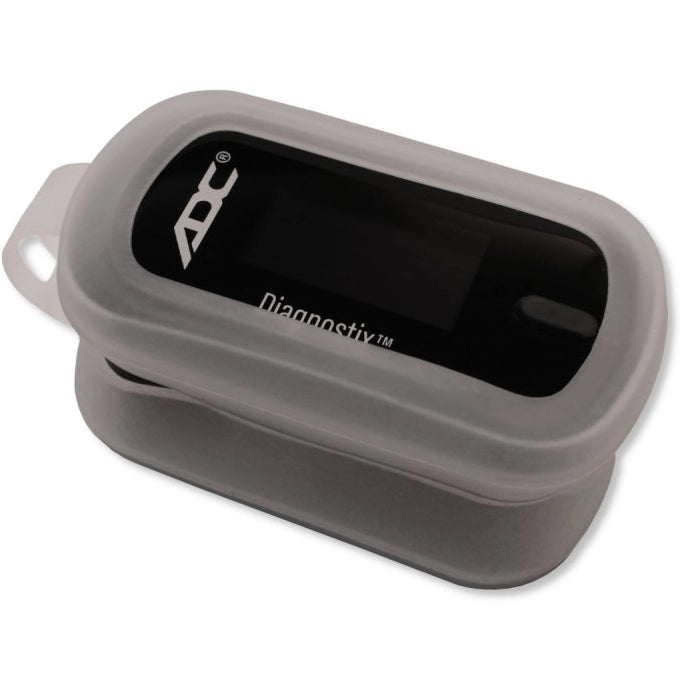

The ADC Diagnostix 2100 Fingertip Pulse Oximeter comes complete with a Carry Lanyard (#2100-1), rubberized bumper, two AAA batteries, and an instruction booklet.

Warranty: 2 Years Limited - Defects in Materials and Workmanship under normal use and service.

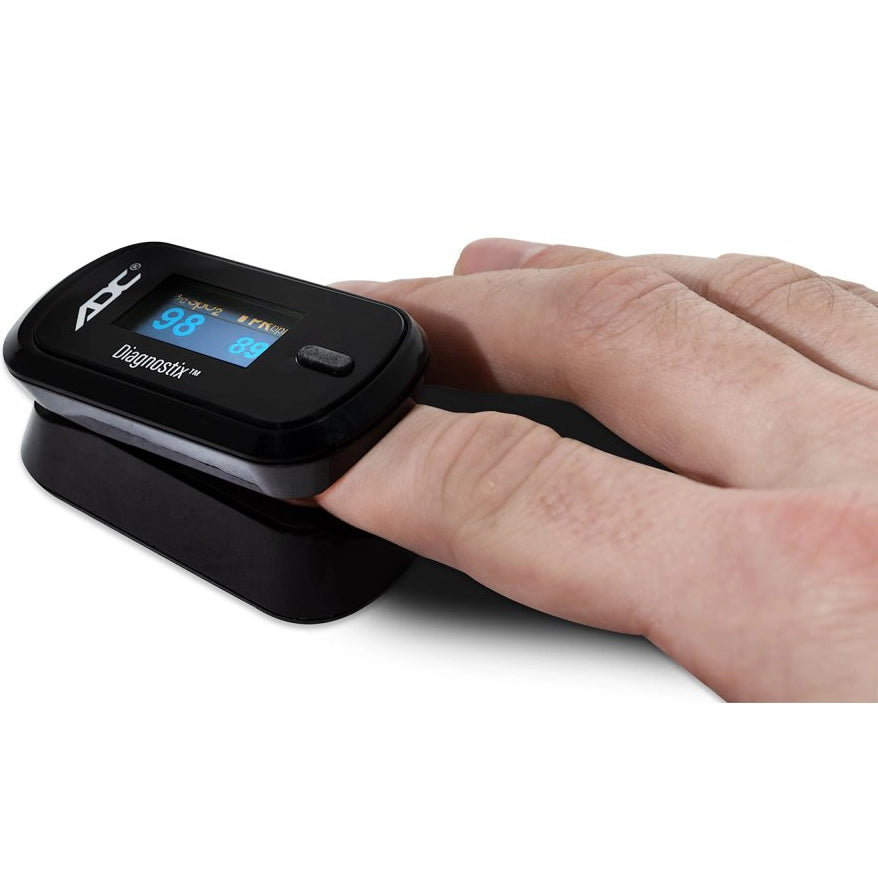

The Diagnostix 2100 is a portable, feature rich pulse oximeter that provides spot readings of SpO₂ and heart rate in just a few seconds for the busy healthcare professional. The simple, non-invasive digital device indirectly measures the functional oxygen saturation (SpO₂) of an adult or pediatric patient's blood.

The Diagnostix 2100 is perfect for EMS, a visiting nurse, or wherever portability is required.

Functional oxygen saturation refers to the ratio of oxyhemoglobin to all hemoglobin that is capable of carrying oxygen. This oximeter is not intended for continuous monitoring. It requires no routine calibration or maintenance other than replacement of batteries.

ADC Diagnostix 2100 Fingertip Pulse Oximeter Features

• Reads SpO₂ and Pulse Rate.
• Display: Dual color OLED.
• Six changeable display modes.
• 10 display brightness settings.
• 25% smaller than competing models.
• Audible and visual alarm.
• Hinged battery cover is more secure.
• Meets or exceeds ISO 9919.

ADC Diagnostix 2100 Fingertip Pulse Oximeter Specifications

• Type: Fingertip.
• Finger Range: 8 mm - 20 mm (0.31" - 0.79") thick [distance between the fingernail (top) and the finger pad (bottom)].
• SpO₂ Range: 0 - 100%.
• PR Range: 30 - 235 bpm.
• PR Display Mode: Bargraph.
• SpO₂ Accuracy: +/- 2% @ 80 - 99% / +/- 3% @ 70 - 80%.
• PR Accuracy: +/- 2 bpm.
• Power Requirements: Two AAA Alkaline batteries.
• Power Consumption: 40 mA.
• Battery Life: 30 hours (continuous).
• Dimensions: 2.3" x 1.3" x 1.3" (58 mm x 32 mm x 34 mm).
• Weight: 1.8 oz. (50 g).
• Operating Temperature: 41 to 104 °F (5 to 40 °C).
• Storage Temperature: 14 to 104 °F (-10 to 40 °C).
• Relative Humidity in Operation: 15 - 80%.
• Relative Humidity in Storage: 10 - 80%.

ADC Diagnostix 2100 Fingertip Pulse Oximeter Colors

• #2100: With Black Bumper.

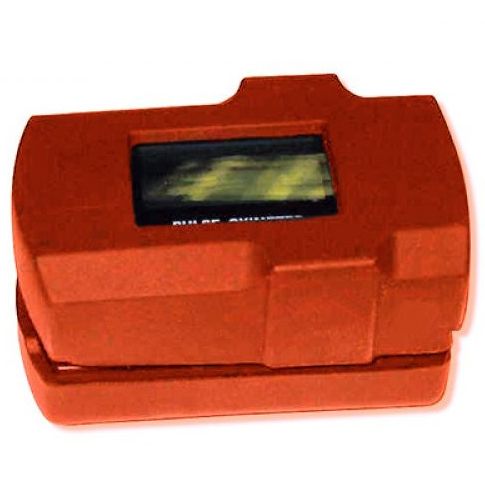

• #2100OR: With Orange Bumper.
