- Weight: 0.3 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 9005SP
- Phone: (800) 232-2670
Frequently asked questions
Is this sensor compatible with other diagnostic systems?
This sensor is engineered specifically for use with the ADC ADView 2 Modular Diagnostic Station and requires the separate ADC SpO2 Module to function. Guaranteed functionality and compatibility are limited exclusively to the ADView 2 system.
Key specifications related to compatibility include:
- System Requirement: Must be used with the ADView 2 Modular Diagnostic Station.
- Connector Type: Features a standard DB-9M connector.
- Sensor Standard: The reusable adult sensor is based on a Nellcor-compatible (DS-100A) design.
While the sensor follows a Nellcor-compatible standard, compatibility with other systems or brands cannot be guaranteed.
Is the ADC SpO2 sensor Nellcor compatible?
Yes, the standard ADC SpO2 Finger Sensor is designed to be Nellcor-compatible for reliable operation with the ADView 2 Modular Diagnostic Station (provided the necessary SpO2 module is installed).
This sensor utilizes ChipOx Nellcor Compatible SpO2 technology to measure the oxygen saturation of arterial blood flow.
Does this sensor include the ADView 2 station or module?
No, this purchase is for the ADC SpO2 Finger Sensor accessory only.
To utilize this sensor for non-invasive oxygen saturation monitoring, you must already own or purchase separately the:
- ADView 2 Modular Diagnostic Station
- Required SpO2 Module (which enables the monitoring function)

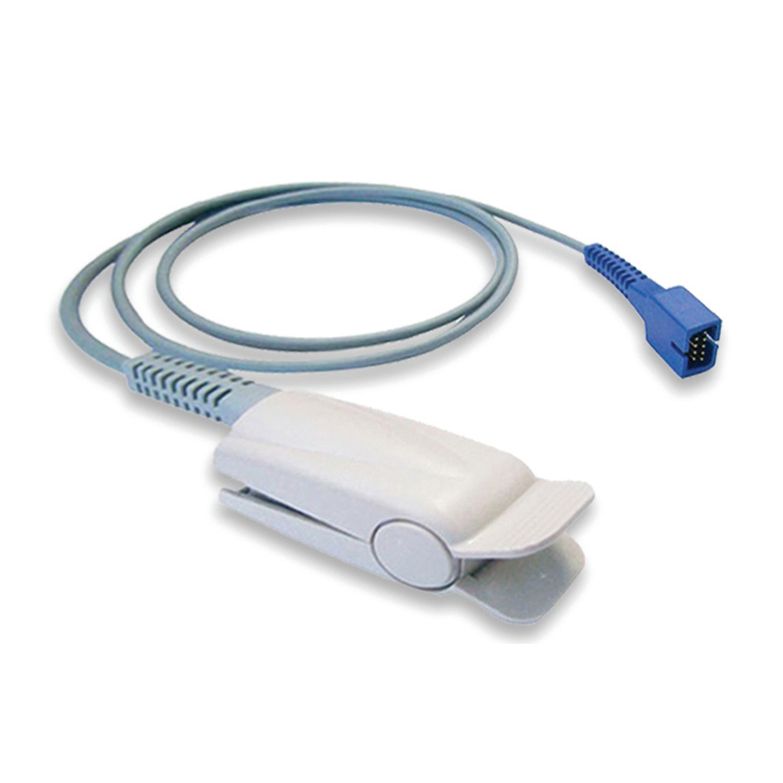

What is Included (Adult Configuration):
This package provides the essential reusable adult finger sensor (MPN 9005SP), designed for seamless integration with your ADView 2 SpO2 Module. It is suitable for patients weighing more than 88 lb (40 kg) and features:
- A Nellcor-Compatible reusable finger sensor
- An attached 8-foot cable
- A durable DB-9M connector
Which diagnostic station uses this sensor?
This sensor is specifically designed for seamless integration with the ADC ADView 2 Modular Diagnostic Station.
It enables non-invasive monitoring of arterial blood oxygen saturation (SpO2) and pulse rate, typically delivering a reading in about 10 seconds.
Important Compatibility Note:
This finger sensor must be connected through a dedicated ADC SpO2 Module (sold separately), which processes the signal for the ADView 2 unit. The system is designed for use with the ChipOx Nellcor Compatible technology.
Does the sensor provide fast SpO2 readings?
Yes, the sensor is designed for rapid measurement, capable of acquiring oxygen saturation (SpO2) readings in approximately 10 seconds.
This rapid performance is complemented by precise accuracy specifications:
- SpO2 Accuracy (No Motion): The readings are accurate within +/- 2% across the normal saturation range (70% to 100%Arms).
- Pulse Rate Accuracy: The sensor provides high accuracy of +/- 3 BPM over the full measurement range (20 to 300 BPM), which applies both with and without patient motion.
The sensor utilizes Nellcor-compatible technology, integrating seamlessly with the ADView 2 Modular Diagnostic Station.
What is the minimum patient weight for the adult sensor?
The reusable adult sensor configuration is suitable for patients weighing over 88 lb (40 kg).
What vital signs does this sensor measure?
This sensor, when integrated with the required ADC SpO2 Module and the ADView 2 Modular Diagnostic Station, accurately measures two key vital signs:
- Blood Oxygen Saturation (SpO2): This monitors the oxygen saturation of arterial blood flow using Nellcor-compatible sensor technology.
- Rapid Measurement: Readings are typically obtained in approximately 10 seconds.
- Accuracy: Provides 70-100%Arms saturation readings with an accuracy of +/- 2% (under normal, non-motion conditions).
- Pulse Rate: The system also monitors the patient’s corresponding pulse rate.
- Range: 20 to 300 BPM.
- Accuracy: Precise pulse rate measurement of +/- 3 BPM, which is maintained even during patient motion.
How long is the adult SpO2 sensor cable?
The reusable adult SpO2 finger sensor comes equipped with a lengthy 8-foot cable.
This provides ample flexibility and reach during patient monitoring when connected to the ADView 2 Modular Diagnostic Station.
This specific sensor configuration is:
- Designed for patients weighing more than 88 lb (40 kg).
- Utilizes a DB-9M connector.
- Features a reliable, Nellcor-compatible design (DS-100A).
What type of connector does the SpO2 finger sensor have?
The connector type for the ADC SpO2 Finger Sensor is DB-9M, ensuring proper connectivity with the ADView 2 Modular Diagnostic Station.
What is the warranty period for this SpO2 sensor?
The ADC SpO2 Finger Sensor is covered by a 90-day warranty from the date of purchase.
