Condition:
-
Warranty:
- Weight: 1.1 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 9005S
- Phone: (800) 232-2670
Frequently asked questions
What SpO2 measurement configurations are offered?
The ADC SpO2 Module for the ADView 2 Diagnostic Station is available in two primary technology configurations, allowing you to choose the best option for your monitoring needs:

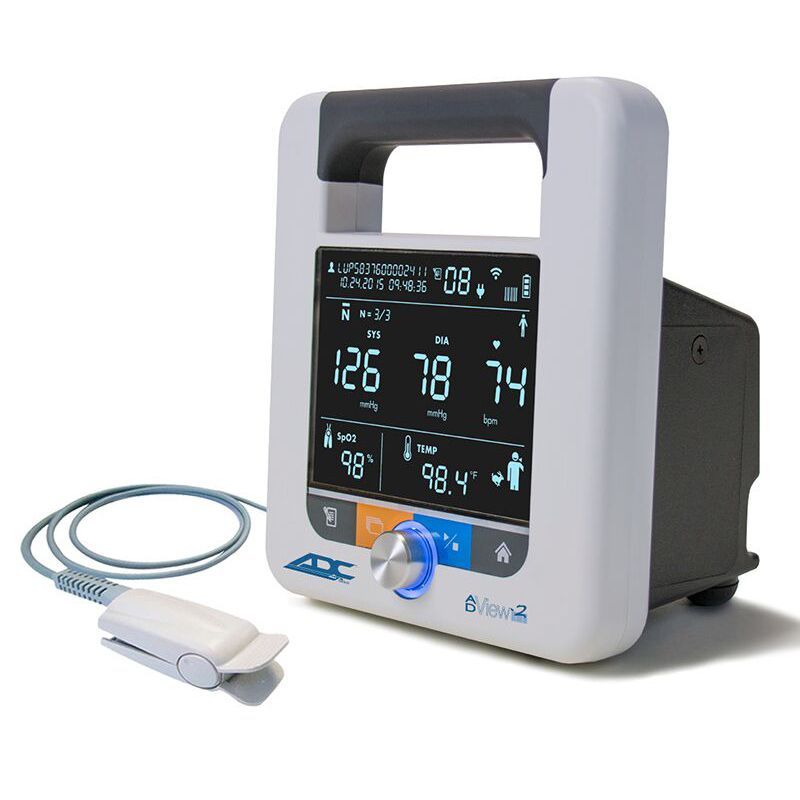

- ChipOx Nellcor Compatible: This configuration displays the pulse rate signal strength during the measurement process.

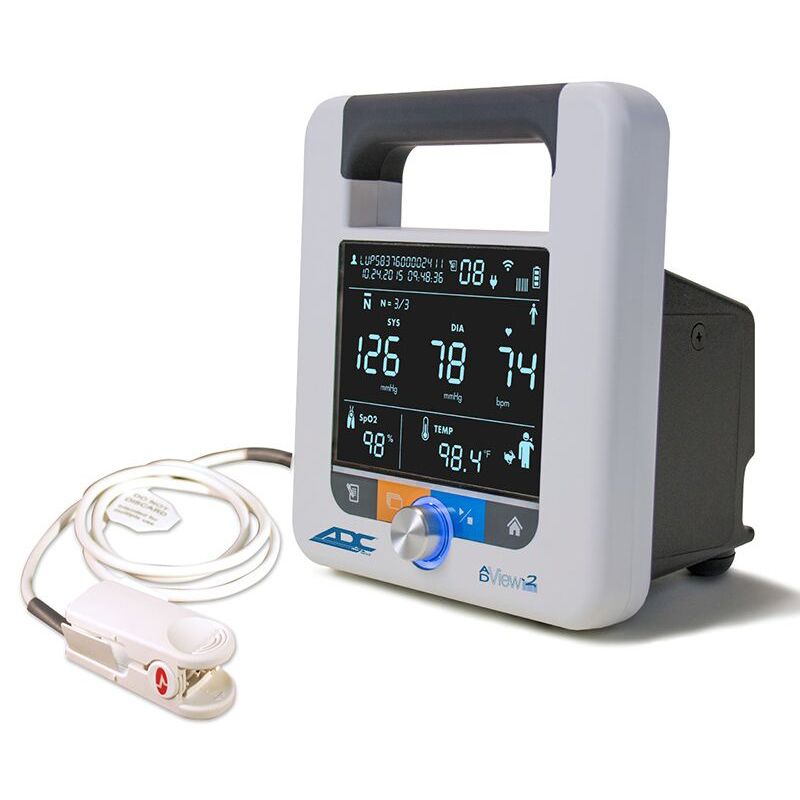

- Masimo SET Technology: This configuration is highly regarded for its performance and includes both a reusable adult finger sensor and an eight-foot extension cable.
Both configurations deliver rapid, high-accuracy readings, measuring arterial blood oxygen saturation in approximately 10 seconds, and are backed by a robust 3-year warranty.
What SpO2 module configurations are available?
The ADC SpO2 Module is available in two specialized technological configurations for use with the ADView 2 Modular Diagnostic Station:

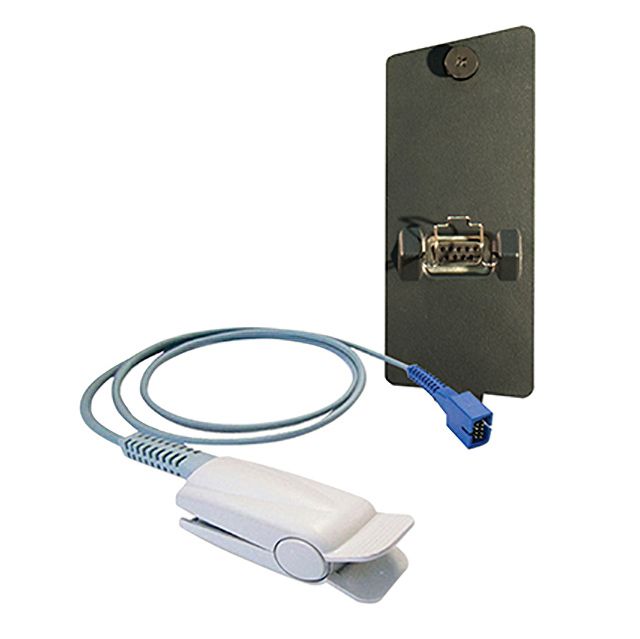

- ChipOx Nellcor Compatible Module: This configuration measures oxygen saturation and pulse rate. A unique feature is that it displays the pulse rate signal strength during measurement.

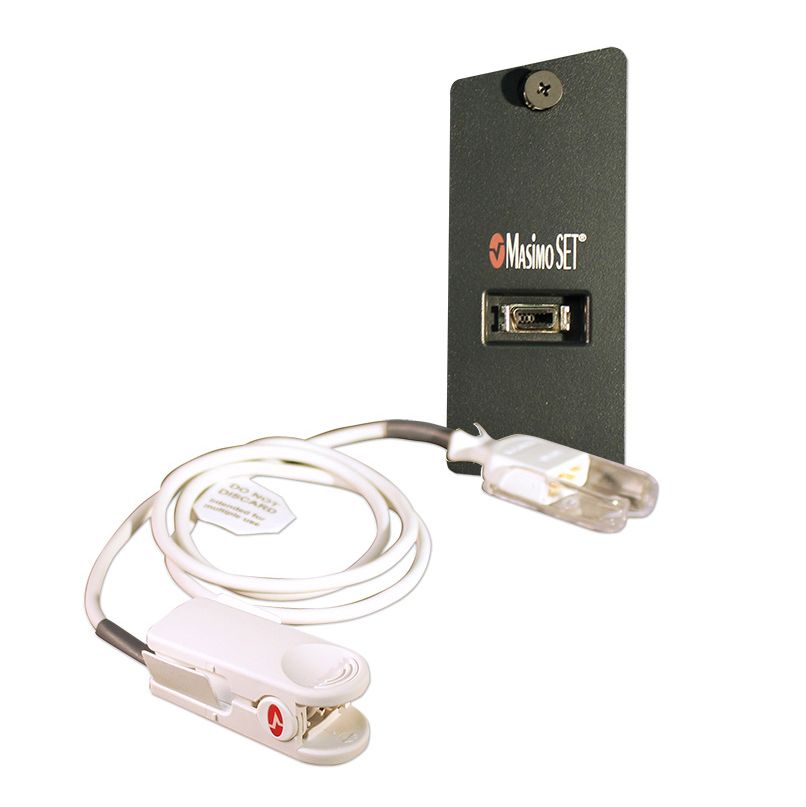

- Masimo SET Module: This configuration uses Masimo SET technology and is supplied with a reusable adult finger sensor and an eight-foot extension cable.
Both module types offer rapid measurement, typically acquiring readings in about 10 seconds, and are backed by a robust 3-year warranty.
Is the ADView 2 Modular Diagnostic Station included?
No, the ADView 2 Modular Diagnostic Station is not included with this purchase. This product is the optional SpO2 measurement module only, designed to seamlessly integrate with the ADView 2 Diagnostic Station, which must be acquired separately.
What is included with the Masimo SET configuration?
The Masimo SET configuration includes the necessary components for immediate patient monitoring when integrated with the ADView 2 Modular Diagnostic Station. Specifically, it comes with: * The ADC SpO2 Measurement Module (featuring Masimo SET technology) * A reusable adult finger sensor * An eight-foot extension cable
What is the warranty period for the ADC SpO2 Module?
The ADC SpO2 Module is backed by a 3-year warranty.
What vital signs does the SpO2 module monitor?
The ADC SpO2 Module, designed for use with the ADView 2 Modular Diagnostic Station, primarily monitors:
- Arterial Oxygen Saturation (SpO2): Measures the oxygen percentage in arterial blood.
- Pulse Heart Rate (BPM): Monitors the pulse rate in beats per minute.
It delivers measurements in approximately 10 seconds. If you choose the ChipOx Nellcor Compatible configuration, it also displays pulse rate signal strength during measurement.
What are the SpO2 module's performance specifications?
The ADC SpO2 Module is designed for rapid and highly accurate measurement when paired with the ADView 2 Modular Diagnostic Station. It provides both SpO2 and Pulse Heart Rate readings.
Key performance specifications include:
- Rapid Measurement Time: Oxygen saturation readings (SpO2) are acquired in approximately 10 seconds.
- SpO2 Accuracy: The module maintains an accuracy of +/- 2% within the normal range of 70-100% Arms (under no-motion conditions).
- Pulse Heart Rate (PHR): The detectable range is 20-300 BPM.
- PHR Accuracy: The pulse heart rate measurement is highly accurate at +/- 3 BPM, which is maintained even when the patient is in motion.
Is there a pediatric sensor available for the ADC SpO2 Module?
Yes, an optional pediatric/multi-site sensor is available for the ADC SpO2 Module.
Does this module provide rapid SpO2 measurements?
Yes, the ADC SpO2 Module is designed for rapid pulse oximetry. It measures the oxygen saturation level (SpO2) of arterial blood flow in approximately 10 seconds, allowing for quick and efficient diagnostic feedback when integrated with the ADView 2 station.
Is this module compatible with the ADView 2?
Yes, the module is specifically designed for seamless integration with the ADView 2 Modular Diagnostic Station.
