Description

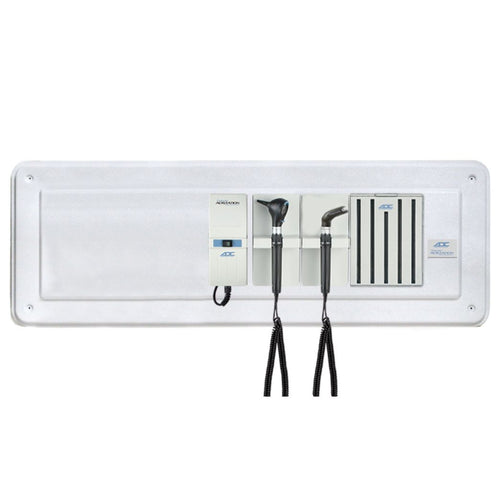

The ADC Adstation 5611-36 3.5V Wall Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 includes a Diagnostix 5420 3.5V Otoscope Head, Diagnostix 5426 3.5V Throat Illuminator Head, power supply base unit that includes a power switch, two 3.5V handles, extension module, 5630 Wall Specula Dispenser, and an Adstation Wallboard that allows you to easily mount your diagnostic set while leaving enough space to add and install an ADC ADView 2 Modular Diagnostic Station.
The wall transformer is available with a standard 120 V power supply and is easy to mount on to the included ADC Wallboard. The Diagnostix 5420 3.5V Otoscope Head and the Diagnostix 5426 3.5V Throat Illuminator Head is available with a halogen/xenon lamp or an advanced AdLED lamp.
The large wallboard comes complete with all hardware for easy installation.
The Adtemp 429 Non-Contact Infrared Thermometer can also be added, and can be stored on the wallboard using the included wall cradle.
Note: This does not include the ADView 2 Modular Diagnostic Station itself, but the station is designed to fit on the included wallboard, and is available for purchase on our website.
Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head, Xenon Lamps, and Wallboard), Lifetime (LED Lamp), 2 Years - Defects in Materials and Workmanship (Thermometer).
The Diagnostix 5420 3.5V Otoscope Head is designed for examination of the inner ear while the Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.
The 5630 Wall Specula Dispenser is a hygienic and practical solution to storing specula and includes five tubes that can store specula. The Adstation Wallboard is a durable, easy-to-clean mounting solution and is made from long-lasting ABS with acrylic, for added UV stability. The Adtemp 429 Non-Contact Infrared Thermometer features an infrared sensor that reads temperature from the middle of the forehead with no skin contact required for a safe and comfortable experience that minimizes the risk of cross-contamination. The infrared sensor simplifies temperature measurement which makes it ideal for screening, and measures the temperature in about one second.
Features
ADC Adstation 5611-36 3.5V Wall Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Features
- Diagnostix 5420 3.5V Otoscope Head Features:
- Fiber-optic light transmission for an unobstructed view.
- Optical glass reduces reflection and provides 3X magnification.
- Bidirectional swivel lens allows instrumentation.
- Insufflator port for pneumatic otoscopy.
- Compatible with Welch Allyn specula.
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
- Anti-theft locking feature is standard.
- Diagnostix 5426 3.5V Throat Illuminator Head Features:
- PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
- Tongue blade holder facilitates examination of the mouth and throat.
- Eject button discards used tongue blade.
- Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
- Anti-theft locking feature is standard.
- Wall Transformer Power Supply Features:
- Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
- Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
- Adtronic electronic rheostatic light intensity control provides infinite continuous control.
- Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
- Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
- Base unit contains the power switch and one handle and the extension holds the other handle.
- UL approved.
- Adtemp 429 Non-Contact Infrared Thermometer Features:
- Measures in about one second without patient contact eliminating the concern of cross contamination or costly probe covers.
- Measurement feedback system signals proper operating distance for accuracy.
- Measures at a distance of 1.5 to 2.5" (4 to 6 cm) from patient's forehead.
- Dual mode - body and object.
- Large backlit LCD display is easy to read.
- Wide temp range.
- Fahrenheit-Celsius switchable.
- Auto-off function after 30 seconds conserves battery life.
- Audible beep when measurement is complete, Night mode mutes volume.
- Compact ergonomic design.
- Measurement Accuracy (Laboratory):
- Body Mode: 50 to 122 °F (10 to 50 °C).
- Object Mode: 32 to 212 °F (0 to 100 °C).
- Body Mode: ± 0.5 °F, 71.6 to 104 °F (± 0.3 °C, 22 to 40 °C).
- Object Mode: < 68 °F ± 1 °F, > 68 °F ± 5% (< 20 °C ± 1 °C, > 20 °C ± 5%).
Specifications
ADC Adstation 5611-36 3.5V Wall Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Specifications
- Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
- Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
- Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
- Thermometer Specifications:
- Range:
- Fahrenheit: 50 to 122 °F.
- Celcius: 10 to 50 °C.
- Accuracy:
- Fahrenheit: 0.5 °F.
- Celcius: 0.3 °C.
- Response Time: 1 sec.
- Memory: 30x.
- Battery Type: 1.5 V (AAA).
- Battery Life: 2,000 uses.
- Dimensions: 2.06" x 1.75" x 5" (52.4 mm x 44.5 mm x 129.9 mm).
- Weight: 3 oz (87 g).
- Operating Environment: 60.8 to 95 °F (16 to 35 °C).
- Storage Environment: -13 to 131 °F (-25 to 55 °C).
Configurations
ADC Adstation 5611-36 3.5V Wall Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Configurations
- #5611X-36X9W: Xenon Otoscope/Xenon Throat Illuminator.
- #5611L-36L9W: LED Otoscope/LED Throat Illuminator.
- #5611L-36X9W: LED Otoscope/Xenon Throat Illuminator.
- #5611X-36L9W: Xenon Otoscope/LED Throat Illuminator.
- #5611X-346X9W: Xenon Otoscope/Xenon Throat Illuminator with Thermometer.
- #5611L-346L9W: LED Otoscope/LED Throat Illuminator with Thermometer.
- #5611L-346X9W: LED Otoscope/Xenon Throat Illuminator with Thermometer.
- #5611X-346L9W: Xenon Otoscope/LED Throat Illuminator with Thermometer.
Literature
ADC Adstation 5611-36 3.5V Wall Otoscope/Throat Illuminator Diagnostic Set with Wallboard for ADView 2 Literature
ADC Adstation Modular Diagnostic Station Instructions for Use
ADC Adstation Wallboard Mounting Instructions
ADC Adstation Specula Extension Assembly Instructions
ADC Adstation Extension Module Assembly Instructions
ADC Diagnostix 3.5V Diagnostic Instruments Instructions for Use
ADC Diagnostic Instruments Literature
ADC Adtemp 429 Non-Contact Infrared Thermometer Instructions for Use
