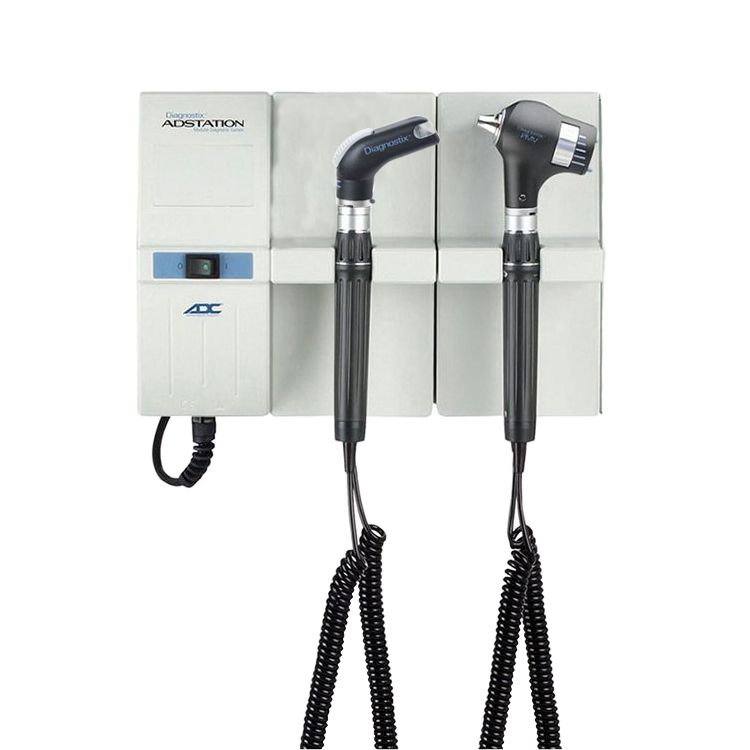

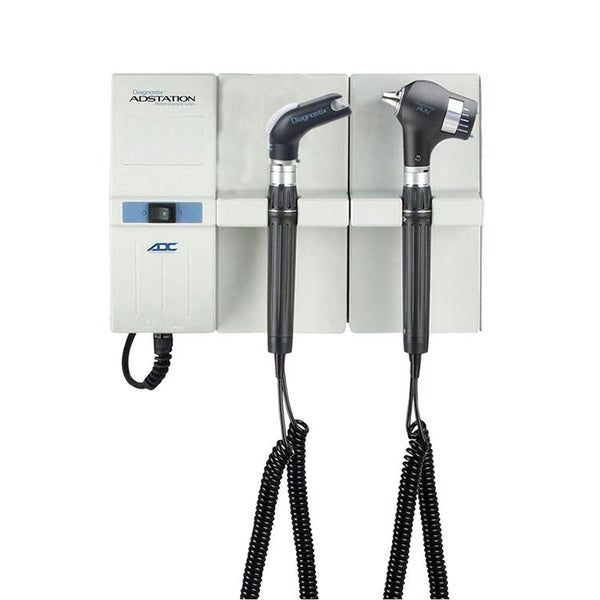

ADC Adstation 5681-6 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set

The otoscope head is designed to be compatible with Welch Allyn specula, providing flexibility for medical professionals.

Yes, the ADC Adstation features an advanced, integrated power management system for safety and energy efficiency. It relies on the following features:

• Magnetic Switching: The system uses magnetic switches that automatically activate the instrument when lifted from its cradle and deactivate it when replaced.
• Adtronic Auto-Off: For safety and to conserve energy, the system is designed to automatically power off the instrument after two minutes of inactivity (if left powered on but unused).
• Light Control: Illumination intensity is precisely managed using the Adtronic electronic rheostatic control, which allows for continuous and infinitely variable adjustment.

Yes, the ADC Adstation 5681-6 is designed as a highly configurable and modular wall-mounted diagnostic system, allowing customization to meet diverse clinical needs.

Key aspects of its modularity and versatility include:

• Custom Illumination: Users can select between high-performance LED illumination (4,200 Kelvin, CRI = 92) or traditional Xenon illumination for the otoscope and throat illuminator heads.

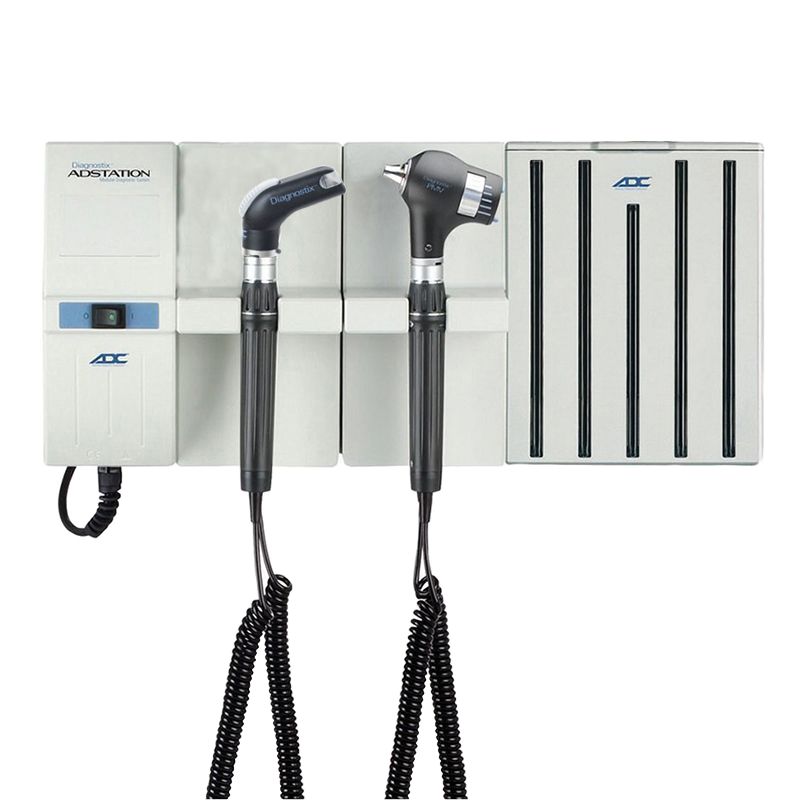

• Accessory Integration: The modular structure supports the seamless integration of optional components, such as the ADC 5630 Specula Dispenser or the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer.
• Universal Compatibility: The base unit features a universal bayonet instrument mount, ensuring compatibility with all major brands of 3.5V instrument heads.
• Configuration Options: The set is available in 16 different combinations, based on illumination choice and the inclusion of optional components, demonstrating its flexibility.

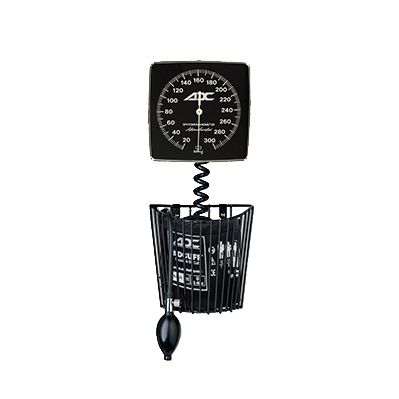

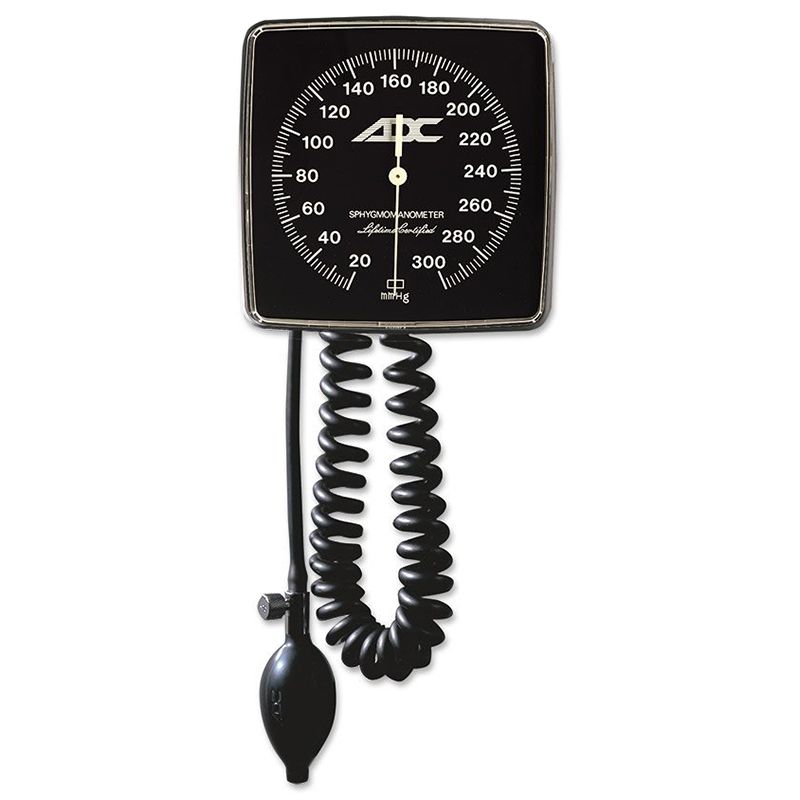

The optional component is the ADC Diagnostix 750W Wall Aneroid Sphygmomanometer, designed to integrate professional blood pressure monitoring into the Adstation setup. It is built for clinical efficiency and long-term reliability.

Key features and components include:

• Large, Highly Visible Dial: It features a 6-inch luminescent dial for effortless reading across the room.
• Durable Movement: The unit uses a 300 mm Hg no-pin stop movement for long-term accuracy and stability.
• Extended Reach: The sphygmomanometer comes with eight feet of coiled tubing, certified as not made with natural rubber latex.

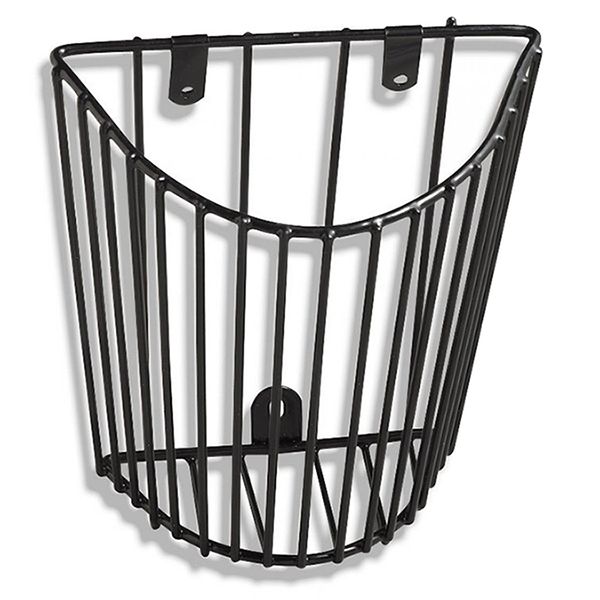

• Complete Adcuff Inflation System: The set includes the Adflow Bulb and Valve, a Cuff Storage Basket, and two Adcuff Nylon Cuffs:
  • Adult (9” – 15.7” / 23 cm – 40 cm)
  • Large Adult (13.3” – 19.6” / 34 cm – 50 cm)

The 750W Wall Aneroid is backed by a 3-year warranty, and the manometer itself carries a lifetime calibration warranty.

Yes, the handles are constructed to be highly durable and ergonomic:

• Material: The handles are CNC machined from solid brass and finished with chrome plating to ensure maximum longevity.
• Grip and Design: They feature a black ribbed surface for a secure, non-slip ergonomic grip.
• Light Control: Each 3.5V handle includes the advanced Adtronic electronic rheostatic light control, allowing for infinite, continuous adjustment of light intensity during use.

Yes, the Adstation is equipped with the advanced Adtronic electronic rheostatic control system, which allows for extremely precise and smooth adjustment of light intensity.

This system ensures convenience and efficiency with several key features:

• Infinite Continuous Control: Clinicians can infinitely and smoothly adjust the light intensity to the exact level required for optimal viewing during different examinations.
• Magnetic Power Activation: A magnetic switch instantly activates the instrument when a handle is removed from its cradle, and automatically deactivates it when replaced.
• Auto-Off Safety Feature: If the handle is left out of the cradle, the system includes a safety feature that automatically powers down the unit after two minutes to conserve energy and prevent overheating.

Yes, the ADC Adstation diagnostic set is supported by comprehensive warranties that vary depending on the component:

• Lifetime Warranty:
  • AdLED Lamp (where applicable).
  • Calibration for the optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer.
• 5-Year Warranty:
  • Wall Transformer base unit.
• 3-Year Warranty:
  • Optional Wall Aneroid Sphygmomanometer (ADC Diagnostix 750W, excluding calibration).
• 2-Year Warranty:
  • Instrument Heads (like the PMV Otoscope and Throat Illuminator).
  • Xenon Lamps.

The ADC Adstation allows you to configure the Diagnostix 5422 PMV Otoscope Head with two distinct illumination types:

1. LED Illumination: This option provides long-lasting, superior white light optimized for diagnostic accuracy. Key specifications include:
   • Color Temperature: 4,200 Kelvin
   • Color Rendering Index (CRI): 92, ensuring excellent detail and true-to-life tissue colors.
   • Warranty: The LED lamp carries a Lifetime warranty.
2. Xenon Illumination: This provides traditional, high-quality illumination.
   • Warranty: Xenon lamps come with a 2-year warranty.

Yes, the ADC Diagnostix 5422 PMV Otoscope Head is specifically engineered for superior visualization using reflection-optimized, high-performance glass optics. It significantly surpasses standard otoscopes in performance:

• 5X Magnification: Provides 66% greater magnification than standard models.
• 11 mm Field of View (FoV): Offers twice the field of view, ensuring a panoramic, detailed look at the auditory canal and tympanic membrane.

This technology delivers a comprehensive and highly magnified view, making examinations clearer and more precise.

Yes, for enhanced security in clinical settings, both included diagnostic heads are equipped with an anti-theft locking feature.

This security measure applies to:

• ADC Diagnostix 5422 PMV Otoscope Head
• ADC Diagnostix 5426 Throat Illuminator Head
