Condition:
-
Warranty:
- Weight: 7.93 lb
-
Learn more:
-
MFR:
American Diagnostic Corporation
Ships from MFI Medical
-
MPN: 5680X-56X
- Phone: (800) 232-2670
Frequently asked questions

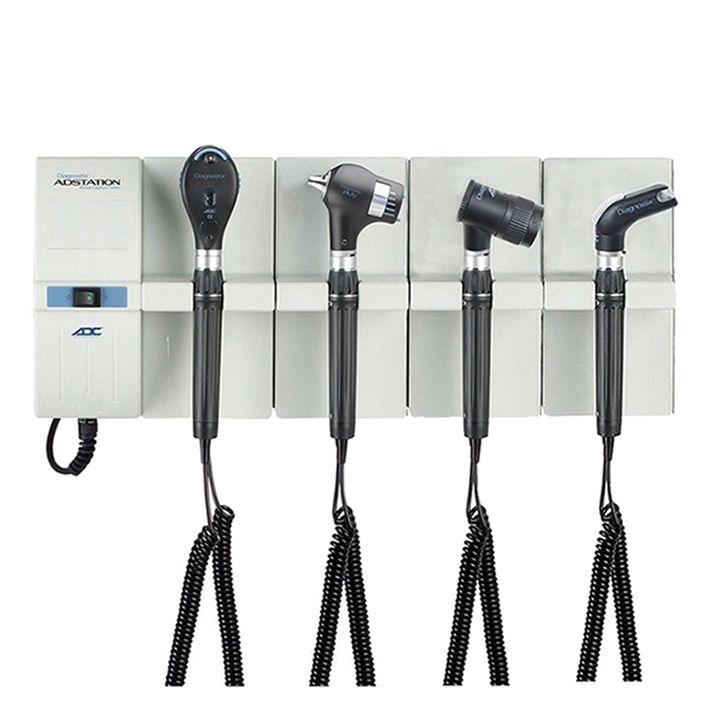

What diagnostic instruments are included in the ADC Adstation 5680-56?
The ADC Adstation 5680-56 includes four essential diagnostic instruments:

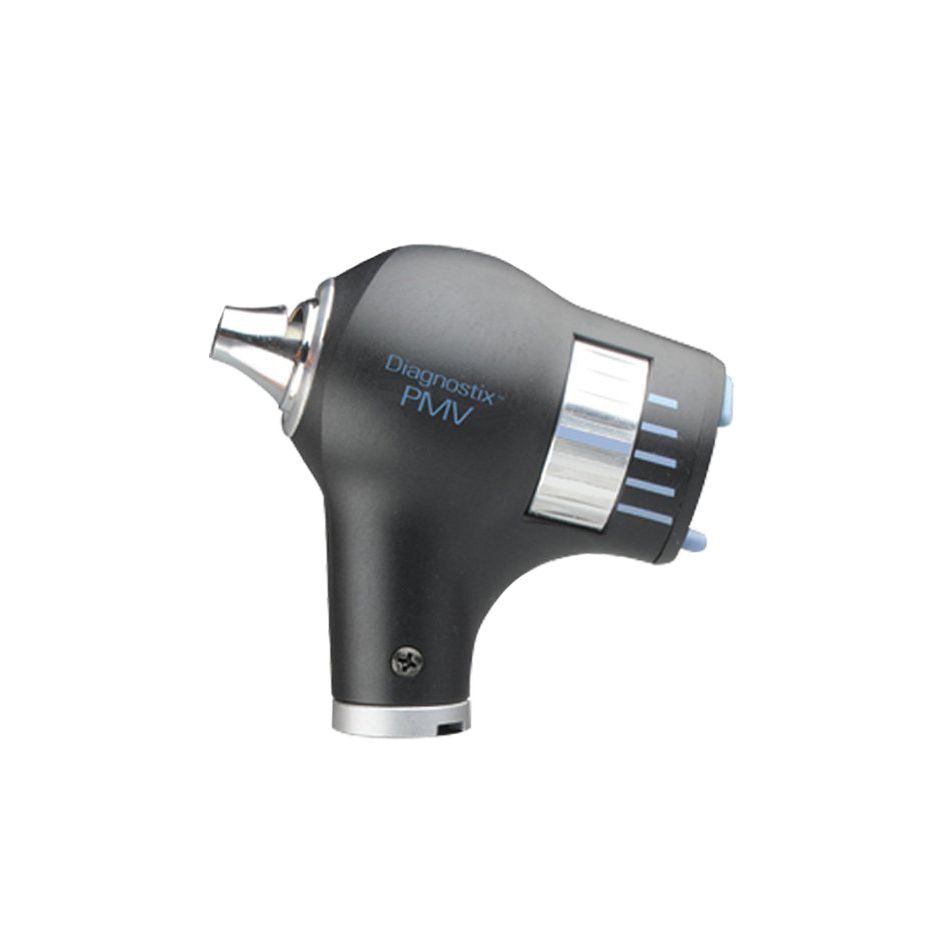

- Otoscope: For inner ear examination.
- Ophthalmoscope: For detailed eye examinations.

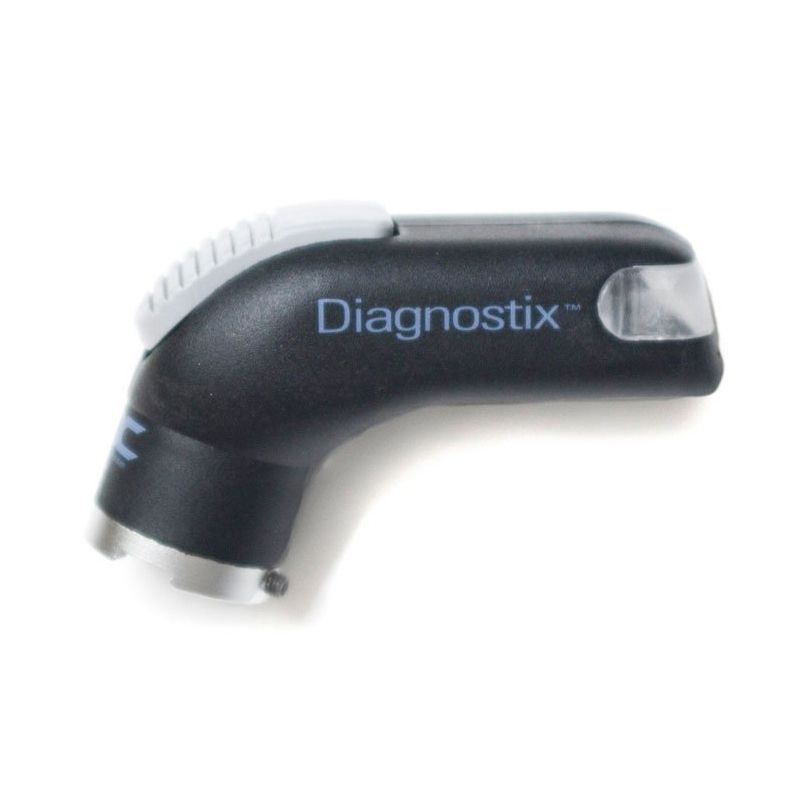

- Throat Illuminator: For oral cavity assessments.
- Dermascope: For skin examinations.
Is the robust wall mounting hardware included?
Yes, the mounting bracket and necessary hardware are included for the secure wall installation of the ADC Adstation system. This ensures the wall transformer base unit and extension modules are reliably placed, providing convenient access to all four diagnostic instrument heads in a clinical setting.
Does this Adstation include an anti-theft locking feature?
Yes, for enhanced security, an anti-theft locking feature is standard on all four instrument heads included in the ADC Adstation 5680-56 set. This ensures the Otoscope, Ophthalmoscope, Throat Illuminator, and Dermascope remain secure when mounted to the wall transformer.
Is the specula dispenser included with the set?

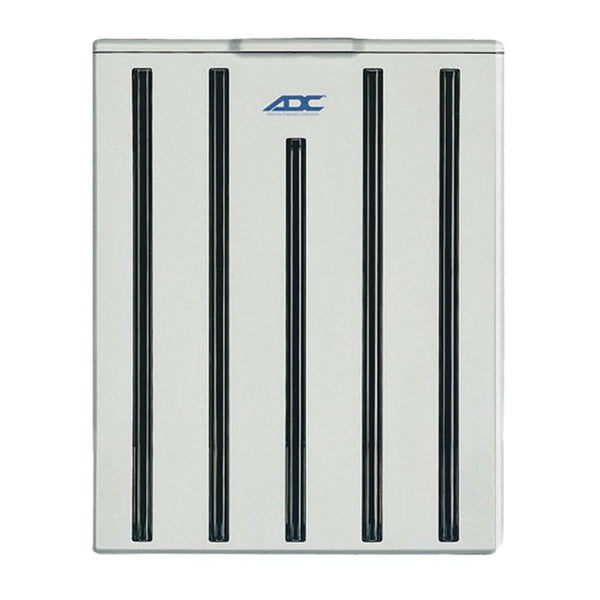

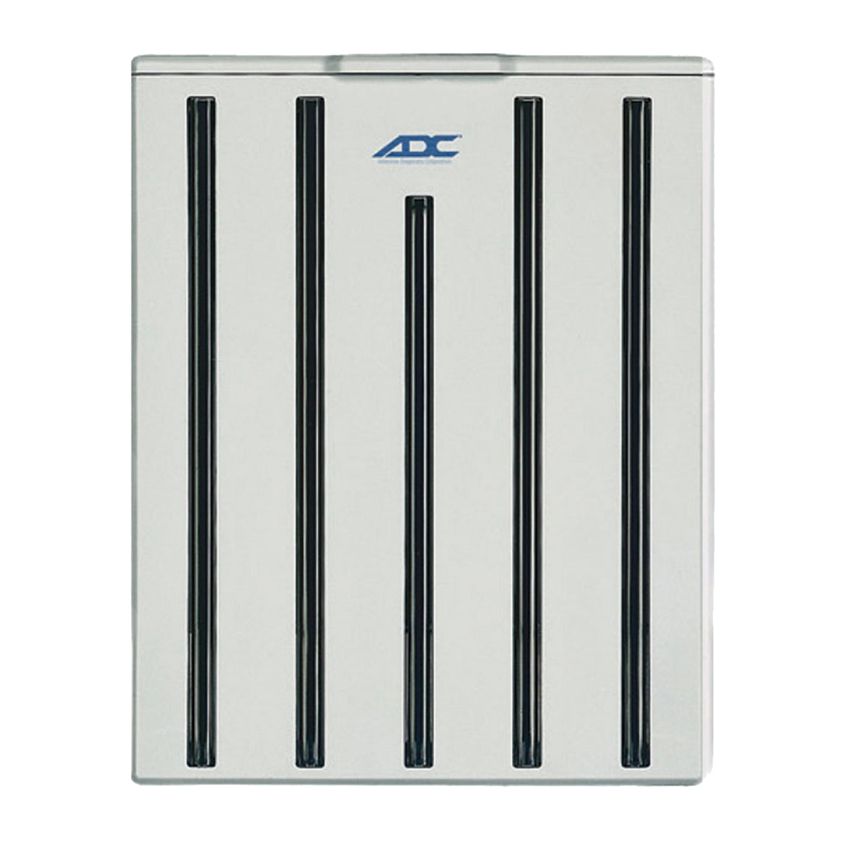

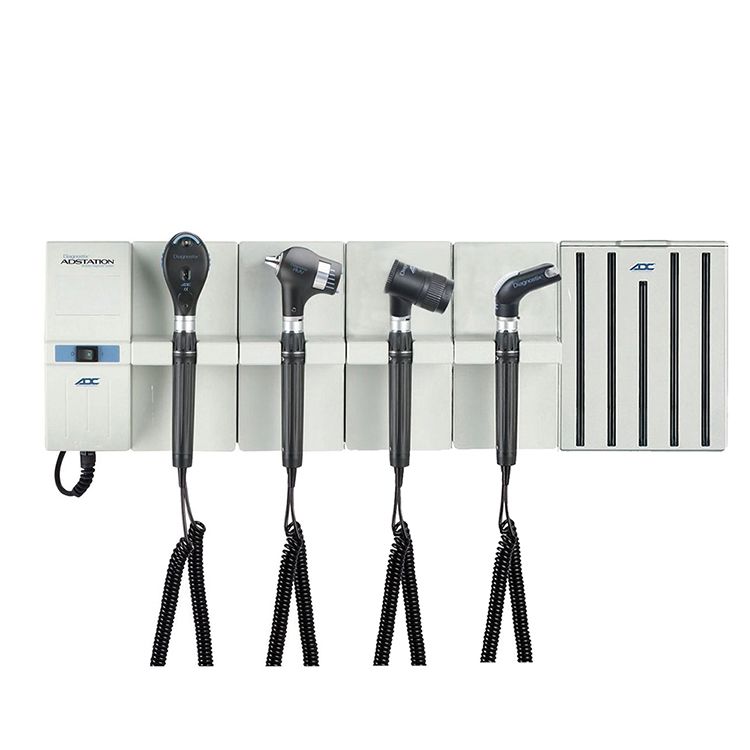

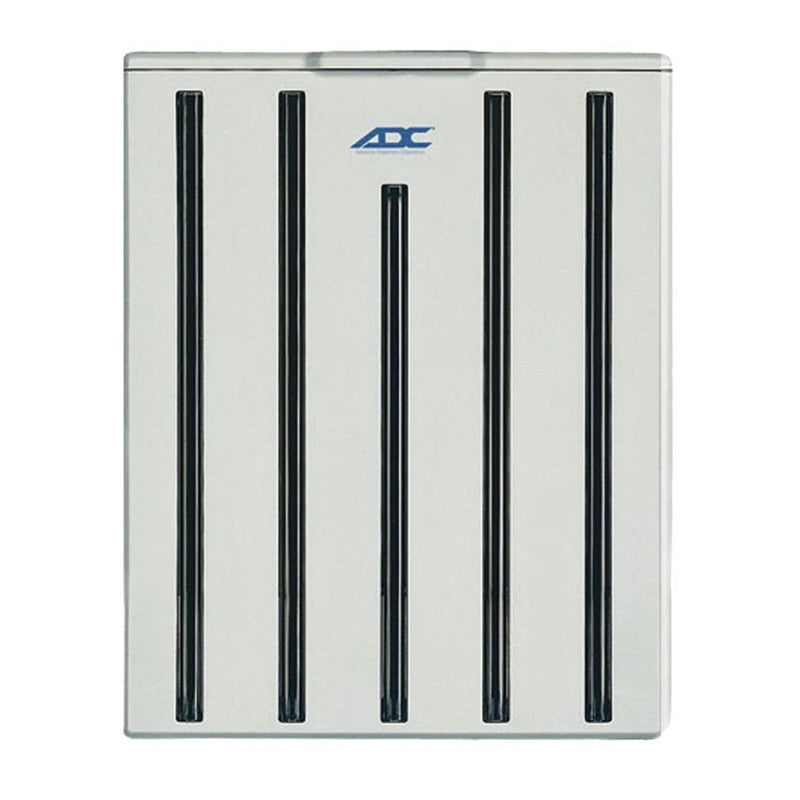

The specula dispenser is not a standard component of the base ADC Adstation 5680-56 unit. The ADC 5630 Wall Specula Dispenser is available as an optional accessory integrated into specific product variants.
This optional dispenser is designed to hold five tubes of specula, ensuring hygienic storage and enhancing workflow efficiency. When ordering, you must select a configuration that explicitly includes this accessory if you require it.
Does the diagnostic set include high-quality illumination options?
Yes, the ADC Adstation 5680-56 is designed with advanced, configurable illumination to ensure superior diagnostic accuracy. The system allows you to select between two high-quality light sources for the Otoscope, Ophthalmoscope, and Throat Illuminator:
- Halogen/Xenon: Provides powerful, traditional, and reliable light.
- Advanced AdLED Illumination: Offers exceptional efficiency, superior light quality, and includes a generous Lifetime Warranty on the LED lamp itself.
All handles utilize the Adtronic electronic rheostatic control system, which provides infinite and precise adjustment of the light intensity during examination.

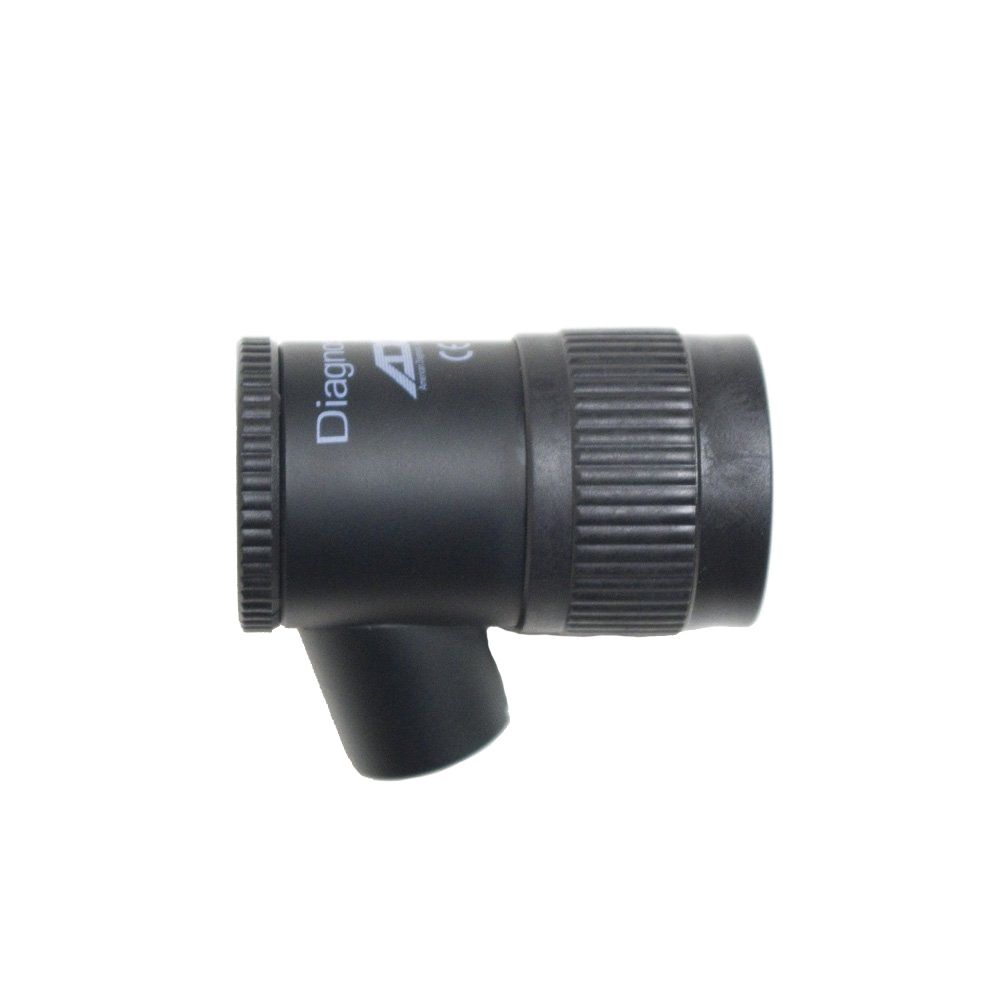

Note that the Diagnostix 5450 Dermascope Head is standardized with AdLED illumination regardless of the overall system configuration.
Are different power supply options available for the Adstation?
Yes, the ADC Adstation 5680-56 offers configuration options to ensure compatibility with different regional power systems. The available power supply options are:
- 120V: Standard configuration (typically US).
- 230V: Configuration available with a European plug.
What is the warranty coverage for the Adstation components?
The ADC Adstation 5680-56 features robust warranties that vary by component, ensuring long-term investment assurance:
- The Wall Transformer is covered by a generous 5-Year warranty.
- The advanced AdLED Lamps (used in the Dermascope and optionally in the other heads) have a Lifetime warranty.
- The Instrument Heads and Xenon Lamps are covered by a 2-Year warranty.
Does the Adstation have automatic power control?
Yes, the ADC Adstation features advanced, automatic power management for efficiency and safety in clinical environments. This system is managed by the wall transformer and includes several key functionalities:
- Automatic Magnetic On/Off: Power is automatically activated via a magnetic switch when a handle is removed from its cradle, and immediately shuts off when the handle is replaced.
- Safety Auto-Off: The Adtronic™ safety feature automatically powers down the system after two minutes if an instrument is left out or improperly docked. This conserves energy and extends lamp life.
- Precise Light Control: The handles, constructed from robust, chrome-plated brass, feature Adtronic™ electronic rheostatic control for infinite and continuous adjustment of light intensity during examination.
What are the dimensions of the diagnostic station and the extension module?
The dimensions are as follows:
- Diagnostic Station: 7.88” x 7.12” x 2.95” (20.02 cm x 18.08 cm x 7.5 cm).
- Extension Module: 7.88” x 3.94” x 2.95” (20.02 cm x 10.01 cm x 7.5 cm).
Does the Ophthalmoscope have advanced features?

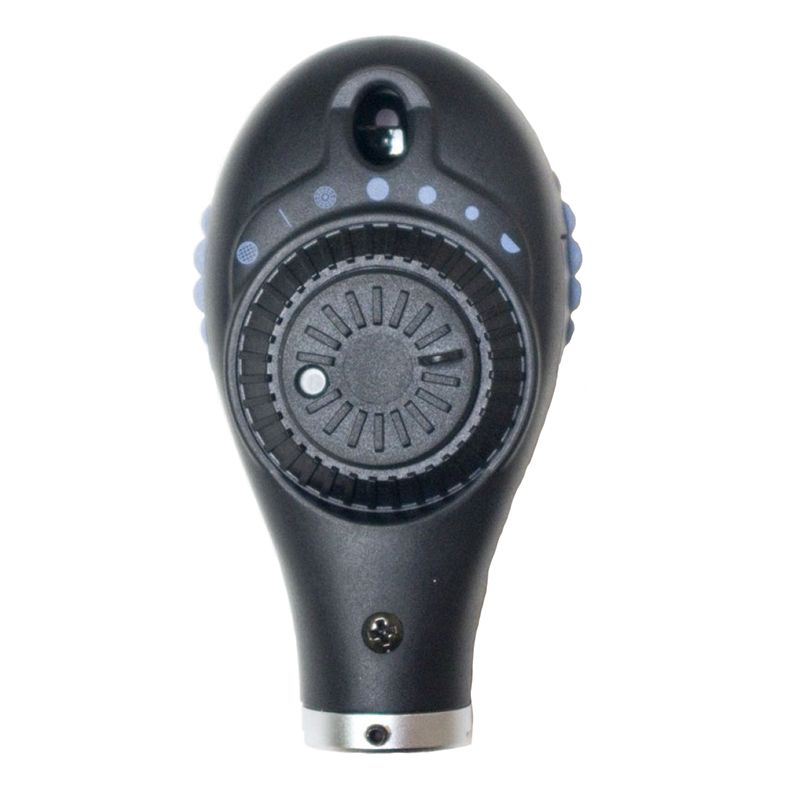

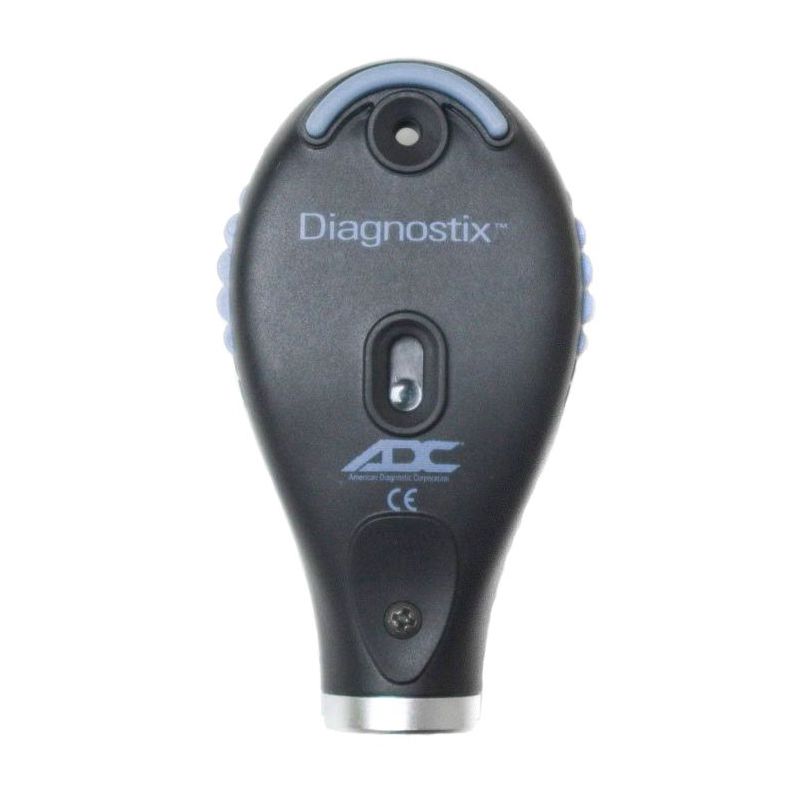

Yes, the ADC Diagnostix 5440 Coax Ophthalmoscope Head is designed for highly detailed examinations, featuring superior optical performance and exceptional versatility.
Key advanced features include:
- Superior Optics: It employs an aspherical condenser lens and uses Gullstrand’s principal beam separation to minimize corneal reflection, resulting in a clearer view.
- Extensive Lens Range: The head features 29 viewing lenses, covering a broad range from -35 to +40 diopters to accommodate various patient refractive needs.

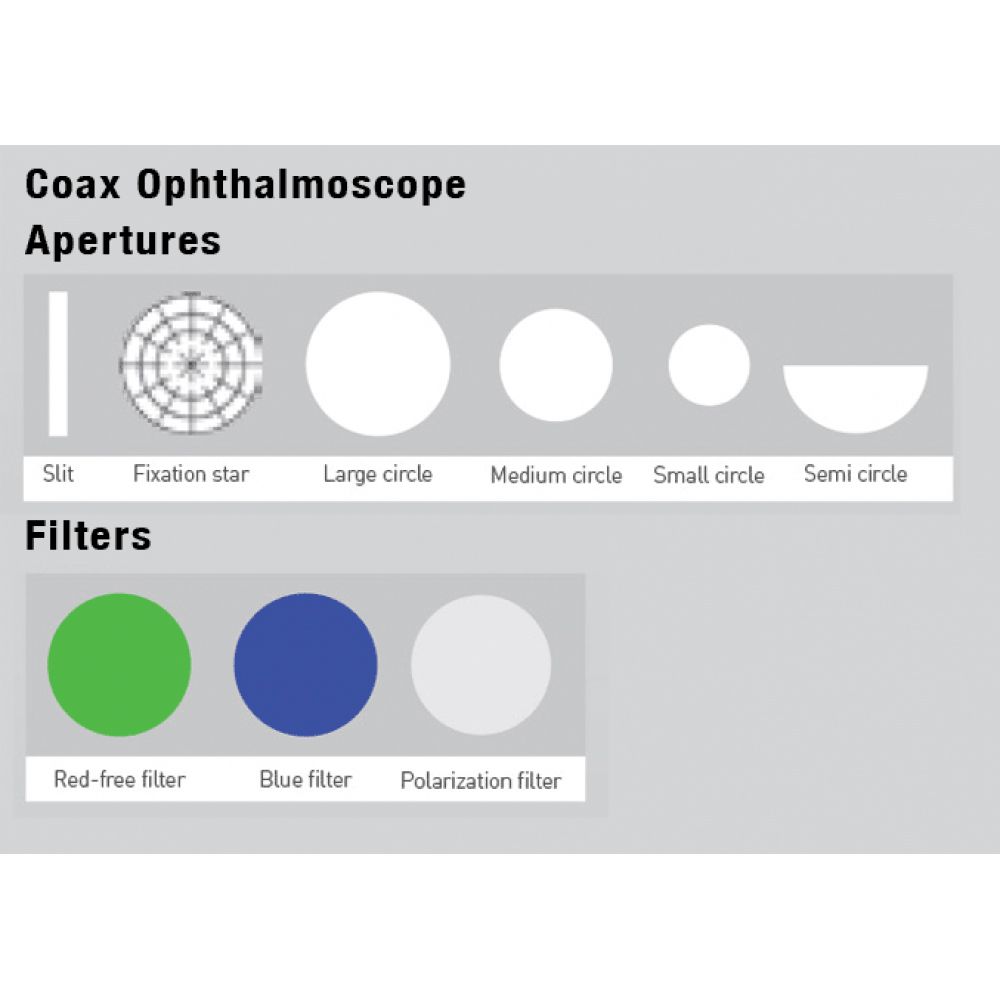

- Comprehensive Aperture and Filter Control: The instrument offers 24 distinct aperture and filter combinations for precise diagnostic imaging, including:
- 6 Apertures: Slit, Fixation, Large, Small, Micro spot, and Half moon.
- 4 Filters: Red free, Cobalt, and Polarizing filters (along with a neutral filter selection).
