Key Features
  • SKU: ADC-5681X-36XW
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 11.45 lb

  • Learn more:

Contact The Manufacturer
  • MFR: American Diagnostic Corporation
    Ships from MFI Medical
  • MPN: 5681X-36XW
  • Phone: (800) 232-2670
$1,559.97 $966.36

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

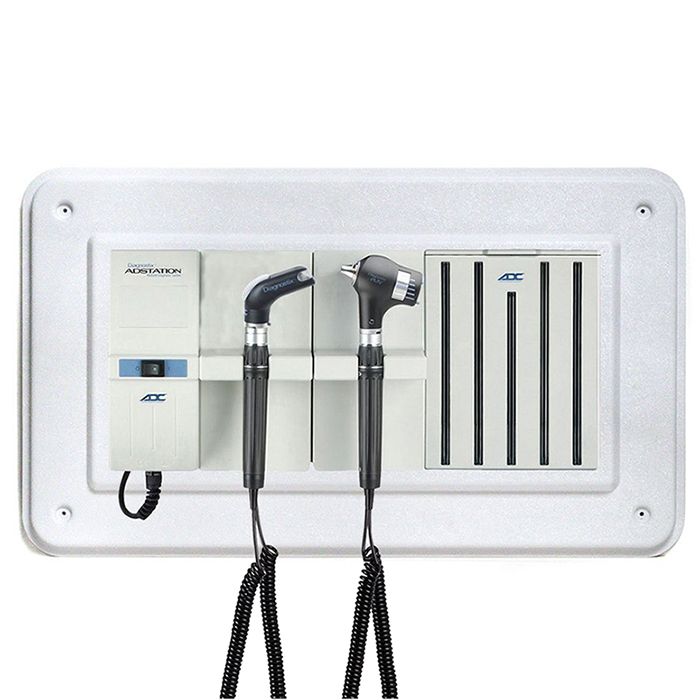

The ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5426 3.5V Throat Illuminator Head, a power supply base unit that includes a power switch, two 3.5V handles, an extension module, an ADC 5630 Wall Specula Dispenser, and a Wallboard that allows you to easily mount your diagnostic set.

The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to mount on to the included ADC Wallboard. The ADC Diagnostix 5422 3.5V PMV Otoscope Head and the ADC Diagnostix 5426 3.5V Throat Illuminator Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

The wallboard comes complete with all hardware for easy installation. The wallboard is available in two sizes, large and small. Your Adstation configuration will determine the size wallboard you receive.

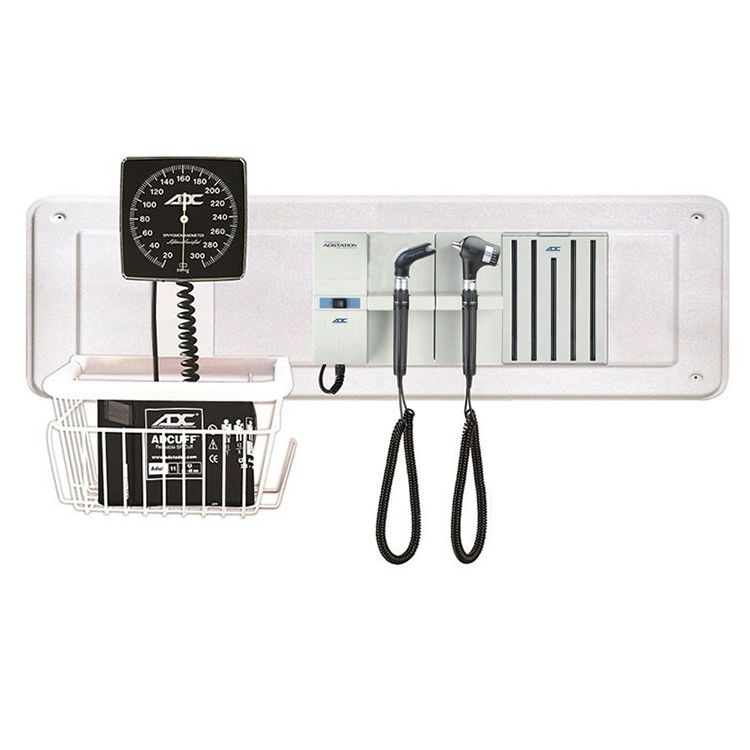

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can be added and includes a wall bracket that swivels through 110 degrees rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

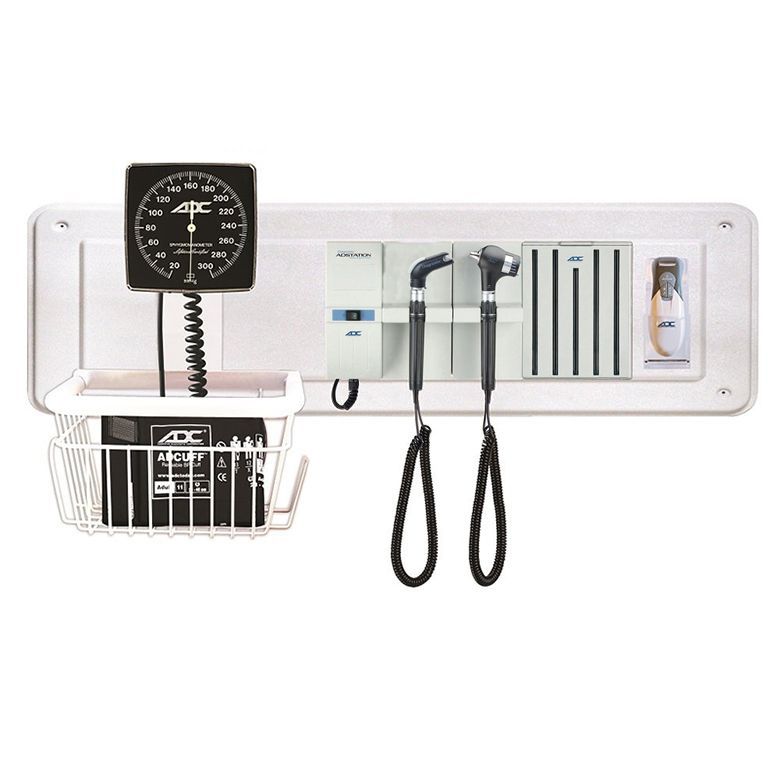

The ADC Adtemp 429 Non-Contact Infrared Thermometer can also be added, and can be stored on the wallboard using the included wall cradle.

Warranty: 5 Years (Wall Transformer), 2 Years (Instrument Head, Xenon Lamps, and Wallboard), Lifetime (LED Lamp), 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty). 2 Years - Defects in Materials and Workmanship (Thermometer).

The ADC Diagnostix 5422 3.5V PMV Otoscope Head is designed for examination of the inner ear and uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to ADC's standard otoscope. The ADC Diagnostix 5426 3.5V Throat Illuminator Head is designed for examination of the oral cavity and pharynx in combination with commercial wooden and plastic blades.

The ADC 5630 Wall Specula Dispenser is a hygienic and practical solution to storing specula and includes five tubes that can store specula. The Adstation Wallboard is a durable, easy-to-clean mounting solution and is made from long-lasting ABS with acrylic, for added UV stability. The Adtemp 429 Non-Contact Infrared Thermometer features an infrared sensor that reads temperature from the middle of the forehead with no skin contact required for a safe and comfortable experience that minimizes the risk of cross-contamination. The infrared sensor simplifies temperature measurement which makes it ideal for screening, and measures the temperature in about one second.

Features

ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard Features

  • ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard Configurations:
    • Xenon Otoscope/Xenon Throat Illuminator with Specula Dispenser (#5681X-36XW) / European Plug (#5681X-36XEUW).
    • LED Otoscope/LED Throat Illuminator with Specula Dispenser (#5681L-36LW) / European Plug (#5681L-36LEUW).
    • LED Otoscope/Xenon Throat Illuminator with Specula Dispenser (#5681L-36XW) / European Plug (#5681L-36XEUW).
    • Xenon Otoscope/LED Throat Illuminator with Specula Dispenser (#5681X-36LW) / European Plug (#5681X-36LEUW).
    • Xenon Otoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5681X-36X7W) / European Plug (#5681X-36X7EUW).
    • LED Otoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5681L-36L7W) / European Plug (#5681L-36L7EUW).
    • LED Otoscope/Xenon Throat Illuminator with Specula Dispenser and Clock Aneroid (#5681L-36X7W) / European Plug (#5681L-36X7EUW).
    • Xenon Otoscope/LED Throat Illuminator with Specula Dispenser and Clock Aneroid (#5681X-36L7W) / European Plug (#5681X-36L7EUW).
    • Xenon Otoscope/Xenon Throat Illuminator with Specula Dispenser, Clock Aneroid, and Thermometer (#5681X-346X7W) / European Plug (#5681X-346X7EUW).
    • LED Otoscope/LED Throat Illuminator with Specula Dispenser, Clock Aneroid, and Thermometer (#5681L-346L7W) / European Plug (#5681L-346L7EUW).
    • LED Otoscope/Xenon Throat Illuminator with Specula Dispenser, Clock Aneroid, and Thermometer (#5681L-346X7W) / European Plug (#5681L-346X7EUW).
    • Xenon Otoscope/LED Throat Illuminator with Specula Dispenser, Clock Aneroid, and Thermometer (#5681X-346L7W) / European Plug (#5681X-346L7EUW).
  • ADC Diagnostix 5422 3.5V PMV Otoscope Head Features:
    • Significantly improved view of the auditory canal and tympanic membrane.
    • Fiber-optic light transmission for an unobstructed view.
    • Choose from halogen/xenon or high-performance LED illumination (4,200 Kelvin, CRI = 92).
    • Reflection-optimized, high-performance glass optics.
    • Adjustable focal depth.
    • Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately).
    • Compatible with Welch Allyn specula.
    • Anti-theft locking feature is standard.
  • ADC Diagnostix 5426 3.5V Throat Illuminator Head Features:
    • PMMA light transmission (similar to Fiberoptic) for unobstructed view of oral cavity.
    • Tongue blade holder facilitates examination of the mouth and throat.
    • Eject button discards used tongue blade.
    • Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
    • Anti-theft locking feature is standard.
  • ADC Wall Transformer Power Supply Features:
    • Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
    • Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
    • Adtronic electronic rheostatic light intensity control provides infinite continuous control.
    • Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
    • Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
    • Base unit contains the power switch and one handle and the extension holds the other handle.
    • Up to 2 additional extension modules (3 total) can be added.
    • UL approved.

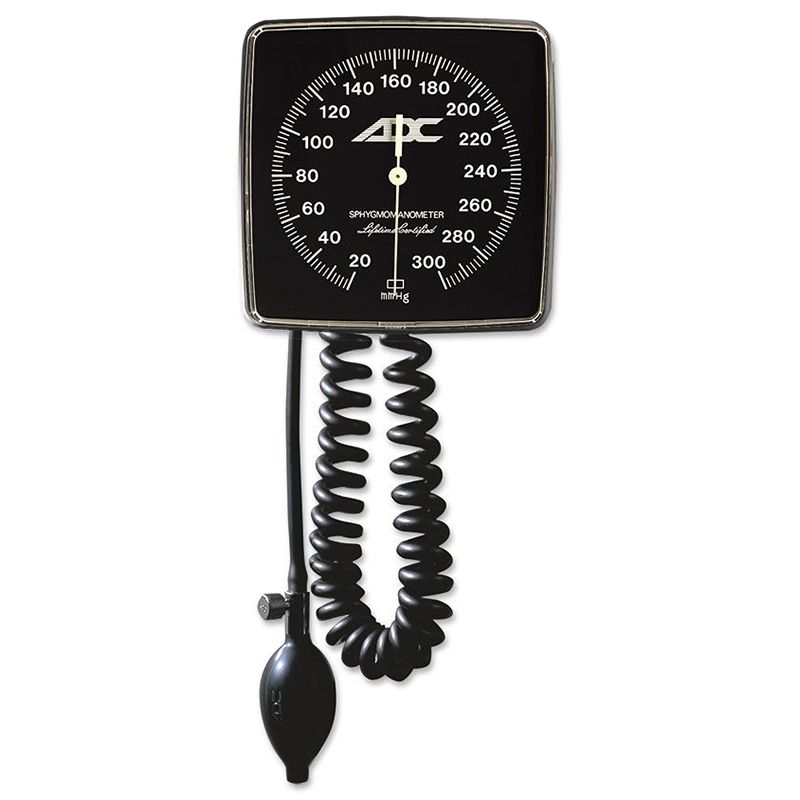

  • ADC Diagnostix 750W Wall Aneroid Sphygmomanometer Features:

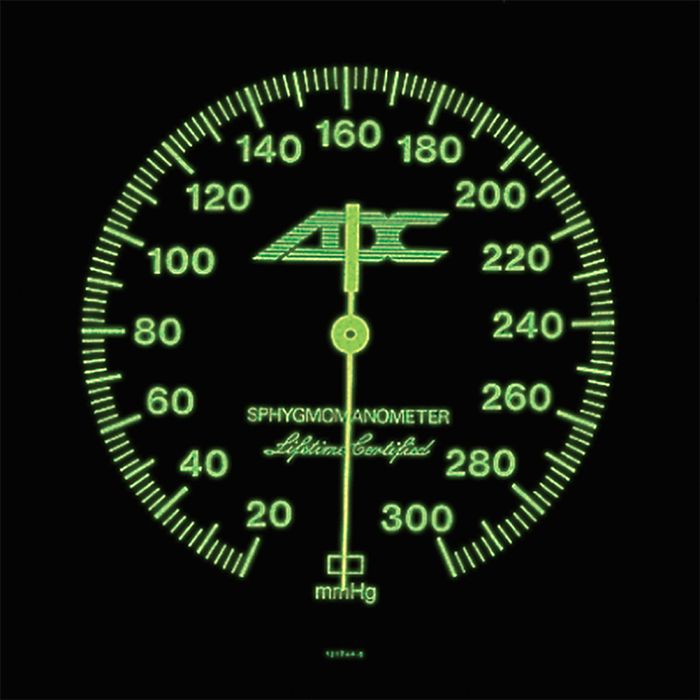

    • Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
    • 300 mm Hg no-pin stop movement withstands the heaviest use.
    • Eight foot length (when extended) of coiled tubing not made with natural rubber latex.
  • ADC Adtemp 429 Non-Contact Infrared Thermometer Features:
    • Measures in about one second without patient contact eliminating the concern of cross contamination or costly probe covers.
    • Measurement feedback system signals proper operating distance for accuracy.
    • Measures at a distance of 1.5 - 2.5" (4 - 6 cm) from patient's forehead.
    • Dual mode - body and object.
    • Large backlit LCD display is easy to read.
    • Wide temp range.
    • Fahrenheit-Celsius switchable.
    • Auto-off function after 30 seconds conserves battery life.
    • Audible beep when measurement is complete, Night mode mutes volume.
    • Compact ergonomic design.
    • Measurement Accuracy (Laboratory):
      • Body Mode: 50 to 122 degrees F (10 to 50 degrees C).
      • Object Mode: 32 to 212 degrees F (0 to 100 degrees C).
      • Body Mode: +/- 0.5 degrees F, 71.6 to 104 degrees F (+/- 0.3 degrees C, 22 to 40 degrees C).
      • Object Mode: < 68 degrees F +/- 1 degrees F, > 68 degrees F +/- 5% (< 20 degrees C +/- 1 degrees C, > 20 degrees C +/- 5%).

Specifications

ADC Adstation 5681-36 3.5V Wall PMV Otoscope/Throat Illuminator Diagnostic Set with Wallboard Specifications

  • Small Wallboard Dimensions: 23.25" x 13.63" x 1" (59.06 cm x 34.62 cm x 2.54 cm).
  • Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
  • Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
  • Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
  • Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
  • Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).
  • Thermometer Specifications:
    • Range:
      • Fahrenheit: 50 to 122 degrees F.
      • Celcius: 10 to 50 degrees C.
    • Accuracy:
      • Fahrenheit: 0.5 degrees F.
      • Celcius: 0.3 degrees C.
    • Response Time: 1 sec.
    • Memory: 30x.
    • Battery Type: 1.5 V (AAA).
    • Battery Life: 2,000 uses.
    • Dimensions: 2.06" x 1.75" x 5" (52.4 mm x 44.5 mm x 129.9 mm).
    • Weight: 3 oz (87 g).
    • Operating Environment: 60.8 to 95 degrees F (16 to 35 degrees C).
    • Storage Environment: -13 to 131 degrees F (-25 to 55 degrees C).

Frequently asked questions

What instruments are in this diagnostic set?

The core ADC Adstation 5681-36 is a comprehensive, wall-mounted diagnostic system that includes two essential instrument heads and a robust power management system:

  • 3.5V PMV Otoscope Head (Diagnostix 5422): This head offers superior visualization with 5X magnification and an 11 mm field of view (twice the FOV of standard models), utilizing fiber-optic light transmission.
  • 3.5V Throat Illuminator Head (Diagnostix 5426): Features PMMA light transmission and includes a practical tongue blade holder with an integrated eject button.
  • Power System: Includes two 3.5V handles and a wall transformer base unit featuring magnetic switching for automatic power activation. Light intensity is infinitely adjustable using Adtronic electronic rheostatic control.
  • Mounting and Storage: The set mounts on a durable ABS/Acrylic Wallboard and includes an integrated ADC 5630 Wall Specula Dispenser for hygienic storage.
Is the wall transformer compatible with other brands of instrument heads?

Yes, the wall transformer features a bayonet instrument mount that is compatible with all major brands of 3.5V instrument heads.

What cuff sizes are included with the optional sphygmomanometer?

The optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer comes with an Adcuff Inflation System that includes both Adult and Large Adult Nylon Cuffs.

How many specula can the ADC 5630 Wall Specula Dispenser store?

The ADC 5630 Wall Specula Dispenser includes five tubes for storing specula.

Does the diagnostic set offer excellent illumination options?

Yes, the ADC Adstation is highly modular, allowing you to choose between two high-quality 3.5V illumination sources for both the Otoscope and Throat Illuminator heads:

  • Halogen/Xenon Illumination: This provides traditional, bright, and reliable light for examination.
  • High-Performance AdLED Illumination: This advanced option offers exceptional clarity, superior efficiency, and longevity. Key specifications for AdLED include:
    • Color Temperature: 4,200 Kelvin
    • Color Rendering Index (CRI): 92, ensuring excellent tissue color representation and visualization.

Note that selecting the AdLED lamp provides significant benefits in terms of durability, as the LED lamp is backed by a Lifetime Warranty (compared to a 2-year warranty for Xenon lamps).

How long is the wall transformer warranty?

The ADC Adstation Wall Transformer is covered by a 5-year warranty. It’s part of a robust warranty structure that also includes a lifetime warranty on the AdLED lamps, if configured with LED illumination.

Does the throat illuminator have an eject button?

Yes, the Diagnostix 5426 Throat Illuminator Head includes a feature designed for safe and hygienic operation.

Key features of the illuminator head include:

  • PMMA light transmission for an unobstructed view.
  • An integrated tongue blade holder.
  • A dedicated eject button to facilitate hands-free removal of used tongue blades, streamlining clinical workflow and minimizing cross-contamination.
What benefits does the optional non-contact thermometer offer?

The optional ADC Adtemp 429 Non-Contact Infrared Thermometer integrates directly into the Adstation system, offering several benefits for a clinical setting:

  • Hygienic Workflow: The non-contact infrared sensor minimizes the risk of cross-contamination between patients.
  • Rapid Measurement: Provides quick and convenient temperature readings in approximately one second.
  • Versatile Functionality: Supports dual-mode measurement, allowing you to measure both body temperature and object/surface temperature.
  • High Efficiency: The thermometer is designed to last, offering power for up to 2,000 uses from a single set of batteries.
Does the Adstation feature an automatic shut-off?

Yes, the ADC Adstation utilizes the Adtronic auto-off feature for enhanced efficiency and durability.

This mechanism ensures:

  • The power to the instrument handles is automatically shut off after they have been left out of the cradle for two minutes.
  • This feature conserves energy and helps to prolong the working life of the 3.5V lamps (Halogen/Xenon or AdLED).
What material is the wallboard made from?

The wallboard for the ADC Adstation is crafted from durable ABS with acrylic, which provides UV stability for long-lasting use and ensures it is easy to clean.
