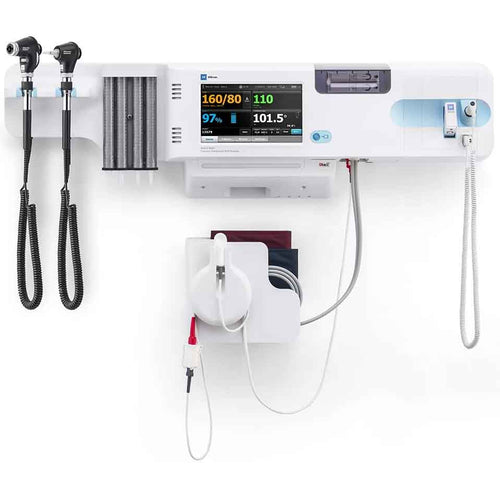

Welch Allyn Connex Integrated Wall System

Welch Allyn Connex Integrated Wall System Features

• Simple color touchscreen interface.
• Can be used with adult, pediatric, and neonatal patients.
• Integrated 3.5V handles for physical assessment instruments (otoscope and ophthalmoscope).
• Spot check and timed intervals monitoring.
• Fast, comfortable blood pressure with SureBP technology.
• Blood pressure averaging to help ensure accurate hypertension diagnosis.
• SureTemp Plus and/or Braun ThermoScan PRO 6000 tympanic thermometry options to meet patient and care setting requirements.
• Option of Masimo or Nellcor SpO.
• Connect to digital weight scales from SECA, Health o Meter, and Detecto.
• Up to 20 custom modifiers for more complete patient documentation.
• Customizable Early Warning Scoring (e.g., MEWA, PEWS) to enable clinical decision support at the bedside.
• Single sign-on options available for quick, secure clinician login.
• Wireless, Ethernet, and USB EMR connectivity options.

Welch Allyn Connex Integrated Wall System Specifications

• Non-Invasive Blood Pressure (NIBP):
  • Cuff Inflation Target:
    • Adult: 160 mmHg.
    • Pediatric: 140 mmHg.
    • Neonate: 90 mmHg.
  • Systolic Range:
    • Adult/Pediatric: 13 to 260 mmHg.
    • Neonate: 20 to 120 mmHg.
  • Diastolic Range:
    • Adult/Pediatric: 20 to 220 mmHg.
    • Neonate: 10 to 110 mmHg.
  • MAP Range:
    • Adult/Pediatric: 23 to 230 mmHg.
    • Neonate: 13 to 110 mmHg.
  • Blood Pressure Accuracy: Meets the ANSI/AAMI SP10:2002 and ISO/ANSI/AAMI 81060-2:2013 standards for noninvasive blood pressure accuracy (+/- 5 mmHg mean error, 8 mmHg SD).
  • BP Determination Time: 15 seconds typical, 150 seconds max.
  • Overpressure Cutoff:
    • Adult/Pediatric: 300 mHg +/- 15 mmHg.
    • Neonate: 150 mmHg maximum.
  • Pulse Rate Range:
    • Adult/Pediatric: 30 to 200 bpm.
    • Neonate: 150 mmHg maximum.
  • Pulse Rate Accuracy: +/- 5.0% (3 bpm).
• Temperature:
  • Measurement Range:
    • SureTemp Plus: 80 to 110 degrees F (26.7 to 43.3 degrees C).
    • Braun: 68 to 108 degrees F (20 to 42.2 degrees C).
  • Calibration Accuracy:
    • SureTemp Plus: +/- 0.2 degrees F (+/- 0.1 degrees C).
    • Braun: +/- 0.4 degrees F (for temps up to 107.6 degrees F), +/- 0.5 degrees F (for temps higher than 107.6 degrees F).
  • Determination Time:
    • Oral: Approximately 4 to 6 seconds.
    • Adult Axillary (18 years and older): Approximately 15 seconds.
    • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
    • Rectal: Approximately 10 seconds.
    • Tympanic: Approximately 3 seconds.
• SpO:
  • Measurement Range: 1 to 100%.
  • Pulse Rate Range:
    • Masimo: 25 to 240 bpm.
    • Nellcor: 25 to 240 bpm.
    • Nonin: 40 to 240 bpm.
  • SpO:
    • Masimo: +/- 2 digits.
    • Nellcor: +/- 3 digits.
    • Nonin: +/-3 digits.
  • Determination Time:
    • Oral: Approximately 4 to 6 seconds.
    • Adult Axillary (18 years and older): Approximately 15 seconds.
    • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
    • Rectal: Approximately 10 seconds.
    • Tympanic: Approximately 3 seconds.
• Wireless Radio:
  • Wireless Network Interface: IEEE 802.11 a/b/g/m.
  • Frequency: 2.4 GHz - 2.483 GHz (2.4 GHz bands) 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz (5 GHz bands).
  • Authentication/Encryption: Wireless Equivalent Privacy (WEP, RC4 Algorithm); Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2); TKIP, RC4 Algorithm; AES, Rijndael Algorithm; Encryption Key Provisioning; Static (40-bit and 128-bit lengths); PSK; Dynamic; EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC 1; PEAPMSCHAPv2; PEAP-TLS.
  • FIPS 140-2: Yes.
  • Determination Time:
    • Oral: Approximately 4 to 6 seconds.
    • Adult Axillary (18 years and older): Approximately 15 seconds.
    • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
    • Rectal: Approximately 10 seconds.
    • Tympanic: Approximately 3 seconds.
• Physical Specifications:
  • Height: 10.56" (268.26 mm).
  • Width: 37.8" (960 mm) with Braun thermometer 39.92" (1014 mm).
  • Weight (including battery): 14.1 lb (6.4 kg).
  • Power Cord Length: 8'.
• Graphical Display Area: 8" (H) x 4" (V) (20.3 cm [H] x 10.2 cm [V].
• Graphical Display Dimensions: 1024 x 600 pixels.
• Battery: Lithium-ion.
• Environmental Conditions:
  • Operating Temperature: 50 to 104 degrees F (10 to 40 degrees C).
  • Operating Humidity: 15 to 95% non-condensing.
  • Storage Temperature: -4 to 122 degrees F (-20 to 50 degrees C).
  • Storage Humidity: 15 to 95% non-condensing.
  • Operating Altitude: -557 to 10,000' (-170 m to 3,048 m).
• Handle: FIPS approved encryption algorithms of transmitted data; Server authentication of the device; Digitally signed software images and configuration files.
• Electrical Rating: 100-240 V AC, 50-60 Hz, 1.50-.08 A.
