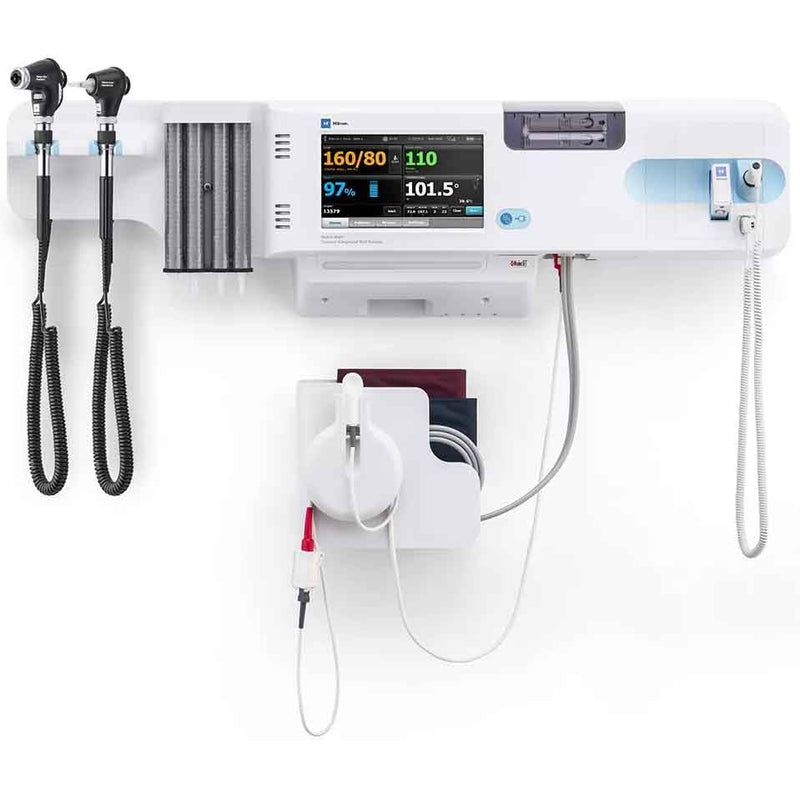

Welch Allyn Connex Integrated Wall System

Welch Allyn Connex Integrated Wall System
Key Features
  • SKU: WLA-84MTVX2-US
  • Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 1 Year
  • Weight: 51.0 lb
  • Integrated 3.5V handles for physical assessment instruments (otoscope and ophthalmoscope)
  • Simple color touchscreen interface
  • Fast, comfortable blood pressure with SureBP technology
  • Up to 20 custom modifiers for more complete patient documentation

  • Learn more:

Contact The Manufacturer
  • MFR: Welch Allyn
    Ships from Manufacturer
  • MPN: 84MTVX2-US
  • Phone: (800) 535-6663
$8,040.00 $6,252.71

+ Free Shipping

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Welch Allyn Connex Integrated Wall System includes SureTemp Plus Thermometry, SureBP Non-invasive Blood Pressure, BP Cuff and Cord Management System, Four USB Ports for Accessories, Pulse Rate, MAP, Programmable Alarms, BP Averaging, and Adult/Pediatric/Neonate Patient Support.

Warranty:

  • SureBP Non-invasive Blood Pressure: 2 Years.
  • SureTemp Plus Thermometer: 2 Years.
  • Braun ThermoScan PRO 6000 Thermometer: 3 Years.
  • PanOptic Basic LED Ophthalmoscope: 1 Year.
  • MacroView Basic LED Otoscope: 1 Year.
  • PanOptic Plus LED Ophthalmoscope: 5 Years.
  • MacroView Plus LED Otoscope: 5 Years.

The Connex Integrated Wall System houses essential instruments to facilitate efficient patient examination and informed clinical judgments based on comprehensive and precise patient data. Its intelligent, comprehensive design enhances patient safety, expedites patient throughput, and conserves valuable time and space.

This space-saving system comes with your choice of Nellcor or Masimo SpO2. SureTemp Plus Thermometry comes standard with the Connex System, however Braun ThermoScan PRO 6000 Thermometry is also available as an option. Lastly, users may choose between the Macroview and PanOptic Basic Otoscope and Opthalmoscopes or the upgraded MacroView and PanOptic Plus Otoscope and Ophthalmoscopes.

Features

Welch Allyn Connex Integrated Wall System Features

  • Simple color touchscreen interface.
  • Can be used with adult, pediatric, and neonatal patients.
  • Integrated 3.5V handles for physical assessment instruments (otoscope and ophthalmoscope).
  • Spot check and timed intervals monitoring.
  • Fast, comfortable blood pressure with SureBP technology.
  • Blood pressure averaging to help ensure accurate hypertension diagnosis.
  • SureTemp Plus and/or Braun ThermoScan PRO 6000 tympanic thermometry options to meet patient and care setting requirements.
  • Option of Masimo or Nellcor SpO2.
  • Connect to digital weight scales from SECA, Health o Meter, and Detecto.
  • Up to 20 custom modifiers for more complete patient documentation.
  • Customizable Early Warning Scoring (e.g., MEWA, PEWS) to enable clinical decision support at the bedside.
  • Single sign-on options available for quick, secure clinician login.
  • Wireless, Ethernet, and USB EMR connectivity options.

Specifications

Welch Allyn Connex Integrated Wall System Specifications

  • Non-Invasive Blood Pressure (NIBP):
    • Cuff Inflation Target:
      • Adult: 160 mmHg.
      • Pediatric: 140 mmHg.
      • Neonate: 90 mmHg.
    • Systolic Range:
      • Adult/Pediatric: 13 to 260 mmHg.
      • Neonate: 20 to 120 mmHg.
    • Diastolic Range:
      • Adult/Pediatric: 20 to 220 mmHg.
      • Neonate: 10 to 110 mmHg.
    • MAP Range:
      • Adult/Pediatric: 23 to 230 mmHg.
      • Neonate: 13 to 110 mmHg.
    • Blood Pressure Accuracy: Meets the ANSI/AAMI SP10:2002 and ISO/ANSI/AAMI 81060-2:2013 standards for noninvasive blood pressure accuracy (+/- 5 mmHg mean error, 8 mmHg SD).
    • BP Determination Time: 15 seconds typical, 150 seconds max.
    • Overpressure Cutoff:
      • Adult/Pediatric: 300 mHg +/- 15 mmHg.
      • Neonate: 150 mmHg maximum.
    • Pulse Rate Range:
      • Adult/Pediatric: 30 to 200 bpm.
      • Neonate: 150 mmHg maximum.
    • Pulse Rate Accuracy: +/- 5.0% (3 bpm).
  • Temperature:
    • Measurement Range:
      • SureTemp Plus: 80 to 110 degrees F (26.7 to 43.3 degrees C).
      • Braun: 68 to 108 degrees F (20 to 42.2 degrees C).
    • Calibration Accuracy:
      • SureTemp Plus: +/- 0.2 degrees F (+/- 0.1 degrees C).
      • Braun: +/- 0.4 degrees F (for temps up to 107.6 degrees F), +/- 0.5 degrees F (for temps higher than 107.6 degrees F).
    • Determination Time:
      • Oral: Approximately 4 to 6 seconds.
      • Adult Axillary (18 years and older): Approximately 15 seconds.
      • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
      • Rectal: Approximately 10 seconds.
      • Tympanic: Approximately 3 seconds.
  • SpO2:
    • Measurement Range: 1 to 100%.
    • Pulse Rate Range:
      • Masimo: 25 to 240 bpm.
      • Nellcor: 25 to 240 bpm.
      • Nonin: 40 to 240 bpm.
    • SpO2:
      • Masimo: +/- 2 digits.
      • Nellcor: +/- 3 digits.
      • Nonin: +/-3 digits.
    • Determination Time:
      • Oral: Approximately 4 to 6 seconds.
      • Adult Axillary (18 years and older): Approximately 15 seconds.
      • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
      • Rectal: Approximately 10 seconds.
      • Tympanic: Approximately 3 seconds.
  • Wireless Radio:
    • Wireless Network Interface: IEEE 802.11 a/b/g/m.
    • Frequency: 2.4 GHz - 2.483 GHz (2.4 GHz bands) 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz (5 GHz bands).
    • Authentication/Encryption: Wireless Equivalent Privacy (WEP, RC4 Algorithm); Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2); TKIP, RC4 Algorithm; AES, Rijndael Algorithm; Encryption Key Provisioning; Static (40-bit and 128-bit lengths); PSK; Dynamic; EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC 1; PEAPMSCHAPv2; PEAP-TLS.
    • FIPS 140-2: Yes.
    • Determination Time:
      • Oral: Approximately 4 to 6 seconds.
      • Adult Axillary (18 years and older): Approximately 15 seconds.
      • Pediatric Axillary (17 years and younger): Approximately 10 seconds.
      • Rectal: Approximately 10 seconds.
      • Tympanic: Approximately 3 seconds.
  • Physical Specifications:
    • Height: 10.56" (268.26 mm).
    • Width: 37.8" (960 mm) with Braun thermometer 39.92" (1014 mm).
    • Weight (including battery): 14.1 lb (6.4 kg).
    • Power Cord Length: 8'.
  • Graphical Display Area: 8" (H) x 4" (V) (20.3 cm [H] x 10.2 cm [V].
  • Graphical Display Dimensions: 1024 x 600 pixels.
  • Battery: Lithium-ion.
  • Environmental Conditions:
    • Operating Temperature: 50 to 104 degrees F (10 to 40 degrees C).
    • Operating Humidity: 15 to 95% non-condensing.
    • Storage Temperature: -4 to 122 degrees F (-20 to 50 degrees C).
    • Storage Humidity: 15 to 95% non-condensing.
    • Operating Altitude: -557 to 10,000' (-170 m to 3,048 m).
  • Handle: FIPS approved encryption algorithms of transmitted data; Server authentication of the device; Digitally signed software images and configuration files.
  • Electrical Rating: 100-240 V AC, 50-60 Hz, 1.50-.08 A.

Configurations

Welch Allyn Connex Integrated Wall System Configurations

Product Number SpO2 Connectivity Temperature Ophthalmoscope Otoscope
84MTVX2-US Masimo Ethernet SureTemp Plus PanOptic Basic LED MacroView Basic LED
84NTVX2-US Nellcor Ethernet SureTemp Plus PanOptic Basic LED MacroView Basic LED
84NTVE2-US Nellcor Ethernet Braun ThermoScan PanOptic Basic LED MacroView Basic LED
84MTVE2-US Masimo Ethernet Braun ThermoScan PanOptic Basic LED MacroView Basic LED
85MTVX3-US Masimo Wireless Radio SureTemp Plus PanOptic Plus LED MacroView Plus LED
85NTVX3-US Nellcor Wireless Radio SureTemp Plus PanOptic Plus LED MacroView Plus LED
85MTVE3-US Masimo Wireless Radio Braun ThermoScan PanOptic Plus LED MacroView Plus LED
85NTVE3-US Nellcor Wireless Radio Braun ThermoScan PanOptic Plus LED MacroView Plus LED

Literature

Welch Allyn Connex Integrated Wall System Literature

Welch Allyn Connex Integrated Wall System Brochure

Frequently asked questions

What comprehensive vital signs does the system measure?

The Welch Allyn Connex Integrated Wall System provides comprehensive patient data acquisition suitable for adult, pediatric, and neonatal patient populations. It consolidates essential vital signs monitoring into a single unit.

The key integrated measurements are:

  • Non-Invasive Blood Pressure (NIBP), Pulse Rate, and MAP: The system features advanced SureBP technology for fast and comfortable readings (typically 15 seconds). It also supports BP averaging for accurate hypertension assessment.
  • Temperature: Standard units come with SureTemp Plus Thermometry. Customizable options include the high-performance Braun ThermoScan PRO 6000 for tympanic readings.
  • Pulse Oximetry (SpO2): Depending on the configuration, the system integrates an SpO2 module from either Masimo or Nellcor.

Additionally, the system supports advanced documentation features, including customizable Early Warning Scoring (EWS) for enhanced clinical decision support.

Is EMR connectivity secure and seamless?

Yes, the Connex Integrated Wall System is specifically designed for secure and seamless integration with Electronic Medical Record (EMR) systems, optimizing clinical workflow and data management.

Key features ensuring reliable connectivity and security include:

  • Flexible Integration: The system supports both Ethernet and internal Wireless Radio (IEEE 802.11 a/b/g/m) connectivity options for seamless data transfer.
  • High Security: Data transmission is highly secure, utilizing FIPS approved encryption algorithms (FIPS 140-2 compliant) and supporting features like server authentication and single sign-on options.
  • Advanced Documentation: The system facilitates detailed clinical documentation by supporting up to 20 custom modifiers and offering customizable Early Warning Scoring (EWS) systems (e.g., MEWA, PEWS) for enhanced decision support.
What essential diagnostic tools are integrated?

The Welch Allyn Connex Integrated Wall System centralizes essential tools for vital signs monitoring and physical assessment, supporting adult, pediatric, and neonatal patients. Its integrated design optimizes workflow and conserves space.

Comprehensive Diagnostic Capabilities

The system integrates key measurement features and supports physical assessment via integrated 3.5V handles:

  • Vital Signs Monitoring: Measures SureBP Non-Invasive Blood Pressure (NIBP), Pulse Rate, and Mean Arterial Pressure (MAP).
  • Thermometry Options: Users can select between standard SureTemp Plus Thermometry or the optional Braun ThermoScan PRO 6000 for fast temperature readings.
  • Pulse Oximetry (SpO2): Available with a choice between industry-leading sensor modules: Masimo or Nellcor.

Physical Assessment Tools

The integrated 3.5V handles accommodate user-selected options for essential diagnostic instruments:

Instrument Option Tiers
Otoscope MacroView Basic LED Otoscope or MacroView Plus LED Otoscope
Ophthalmoscope PanOptic Basic LED Ophthalmoscope or PanOptic Plus LED Ophthalmoscope
Can I choose between different integrated diagnostic optics?

Yes, the Welch Allyn Connex Integrated Wall System is highly customizable to meet your clinical needs. You can select the quality level of your diagnostic instruments during configuration:

  • Basic LED Instruments: This option features the MacroView Basic LED Otoscope and the PanOptic Basic LED Ophthalmoscope.
  • Plus LED Instruments: This upgraded option features the MacroView Plus LED Otoscope (compatible with iExaminer) and the PanOptic Plus LED Ophthalmoscope, providing enhanced visual clarity for detailed examinations.

By offering these choices, the system ensures that your wall-mounted station is tailored to the specific diagnostic requirements of your practice.

Is the blood pressure measurement technology fast?

Yes, the Welch Allyn Connex Integrated Wall System features SureBP technology, which is designed to provide fast, comfortable, and accurate non-invasive blood pressure readings. This technology helps streamline clinical workflows by reducing the time required for vital sign assessments while supporting accurate hypertension diagnosis through automated BP averaging.

Does this system support all patient populations?

Yes, the Welch Allyn Connex Integrated Wall System is highly versatile and supports vital sign monitoring and assessment for all major patient populations:

  • Adult Patients
  • Pediatric Patients
  • Neonatal Patients

The system is specifically engineered to handle the differing needs of these groups through several integrated features:

  1. Non-Invasive Blood Pressure (NIBP): It utilizes patient-specific NIBP parameters, including specialized cuff inflation targets and measurement ranges optimized for adult, pediatric, and neonatal readings.
  2. Clinical Decision Support: The system includes support for customizable Early Warning Scoring (EWS) protocols (e.g., MEWA, PEWS) to aid in clinical assessment and enhance decision-making across all age spectrums.
  3. Flexible Monitoring: It performs both spot check monitoring and timed interval monitoring.
Is the color touchscreen interface easy to use?

Yes, the Welch Allyn Connex Integrated Wall System features an intuitive, high-resolution color touchscreen designed to streamline your clinical workflow.

Key features of the display include:

  • High Resolution: The screen offers a resolution of 1024 x 600 pixels, ensuring vital signs like NIBP, pulse rate, and temperature are clearly visible.
  • Clinical Decision Support: The interface supports customizable Early Warning Scoring (such as MEWA or PEWS), helping clinicians make fast and informed bedside decisions.
  • Data Management: The touchscreen provides a centralized hub to monitor patient vitals and seamlessly integrate clinical data directly into your EMR system via Ethernet or wireless connectivity.
Can I choose between different thermometry options?

Yes, the system offers flexible configuration options to suit your clinic’s needs. You can choose between the standard SureTemp Plus Thermometry or the optional Braun ThermoScan PRO 6000 for your temperature monitoring requirements.

What are the dimensions of this space-saving wall system?

The Welch Allyn Connex Integrated Wall System is designed to provide a centralized, space-efficient diagnostic hub for clinical environments. Its physical dimensions are as follows:

  • Height: 10.56 inches (268.26 mm)
  • Width: Ranges from 37.8 inches (960 mm) to 39.92 inches (1014 mm), depending on the specific module configuration chosen.

This compact, wall-mounted design helps streamline your exam room, keeping essential instruments organized and easily accessible.

Does the system connect to digital scales?

Yes, the Connex Integrated Wall System is designed for seamless data integration with compatible digital weight scales, which helps streamline patient data collection. The system connects using one of its four dedicated USB ports to interface directly with scales from the following manufacturers:

  • SECA
  • Health o Meter
  • Detecto
