Description

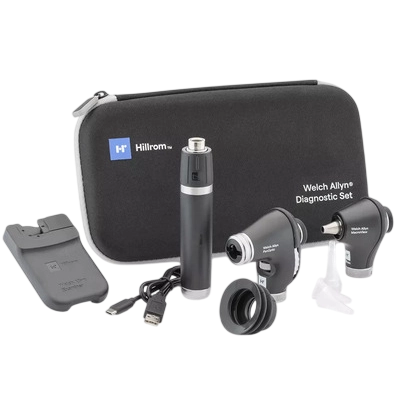

The Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope includes Ophthalmoscope and Otoscope of choice (See Configurations Tab for more details).
Warranty:
- PanOptic Basic LED Ophthalmoscope: 1 Year.
- MacroView Basic LED Otoscope: 1 Year.
- PanOptic Plus LED Ophthalmoscope: 5 Years.
- MacroView Plus LED Otoscope for iExaminer: 5 Years.
- Universal Desk Charger: 1 Year.
Features
Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Features
- Re-designed ophthalmoscope with a familiar form and feel.
- Portable Lithium-Ion handle provide improved battery life and reduced charge time.
- MacroView Basic Otoscope offers focus-free design and 3x wider viewing area.
- PanOptic Basic Ophthalmoscope provides 20x larger viewing area than traditional ophthalmoscopes.
Specifications
Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Specifications
- PanOptic Basic LED Ophthalmoscope:
- Dimensions: 3.14" H x 1.77" W x 2.95" D(8 cm x 4.5 cm x 7.5 cm).
- Weight: 130 g.
- Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
- Diopter Range: -20 to +25 D.
- Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
- Crossed-Linear Polarizers: Yes.
- Lamp Type: SureColor LED.
- Lamp Warranty: 7 Years.
- Color: Color Rendering Index (CRI): 95 typical; R9: 85 typical; Color Temperature: 2700K - 3500K.
- Lamp Life: 80+ years (typical).
- Field of View: 20 degrees.
- MacroView Basic LED Otoscope:
- Dimensions: 2.75" H x 1.77" W x 2.16" D (7 cm x 4.5 cm x 5.5 cm).
- Weight: 115 g.
- Sealed Pneumatic Otoscopy: Yes.
- Illumination Type: Ring Fiber Optics.
- Lamp Type: SureColor LED.
- Lamp Life, Rated: 60+ years based on typical use.
- Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
- Magnification: ~5X.
- Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
- Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
- Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.
- PanOptic Plus LED Ophthalmoscope:
- Dimensions: 8 cm x 4.5 cm x 7.5 cm.
- Weight: 130 g.
- Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
- Diopter Range: -20 to +25 D.
- Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
- Lamp Type: SureColor LED.
- ColorRendering Index (CRI): 95 typical.
- R9: 85 typical.
- Lamp Life: 80+ years (typical).
- Field of View: 20 degree.
- Environmental Conditions:
- Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
- Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
- Operating Humidity: 30% to 90%.
- Transport/Storage Humidity: 10% to 95%.
- Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.
- MacroView Plus LED Otoscope for iExaminer:
- iExaminer Digital-Ready: Yes.
- Dimensions: 7 cm x 4.5 cm x 5.5 cm.
- Weight: 115 grams.
- Sealed Pneumatic Otoscopy: Yes.
- Illumination Type: Ring Fiber Optics.
- Lamp Type: SureColor LED.
- Lamp Life, Rated: 60+ years based on typical use.
- Field of View: Around 3 times that of a single-lens otoscope, like the standard-style 250-2.
- Magnification: Around 5X.
- Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
- Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
- Color: Color rendering index (CRI): 95 typical; R9: 90 typical; Color Temperature: 3400K - 4500K.
- LED Warranty: 7 Years.
- Optimized for the 719-3 Li-Ion Handle: Stays bright over the life of a battery charge (unlike older designs that dim with use); no color change with dimming (unlike halogen).
Configurations
Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Configurations
- #71-PM2LXU-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, one Lithium Ion Plus Rechargeable Power Handle, and Hard Case.
- #71-PM2LDX-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, Universal Desk Charger, and two Lithium Ion Rechargeable Power Handles.
- #71-PM3LDE-US: PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Universal Desk Charger, and two Premium Lithium Ion Plus USB Rechargeable Power Handles.
