Description

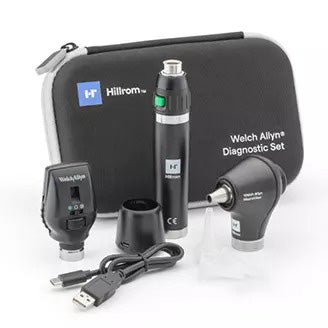

The Welch Allyn 3.5V Diagnostic Set with Coaxial LED Ophthalmoscope includes Coaxial LED Ophthalmoscope and MacroView Basic LED Otoscope. Please read configurations tab to see the exact contents of each diagnostic set.

Warranty: 1 Year - Parts and Labor.

The Welch Allyn Coaxial Ophthalmoscope is used to diagnose conditions relating to the eye. The ophthalmoscope is a key component of a general health examination. It facilitates ophthalmoscopy by enabling easier entry into the eye, a larger field of view, and reduced glare compared to standard ophthalmoscopes.

Features

Welch Allyn 3.5V Diagnostic Set with Coaxial LED Ophthalmoscope Features

  • Coaxial Ophthalmoscope for reduced glare with long lasting LED.
  • MacroView Basic Otoscope offers focus-free design and 3x wider viewing area.
  • Choice of Metal Nickel Cadmium or Lithium Ion Power Handle.

Specifications

Welch Allyn 3.5V Diagnostic Set with Coaxial LED Ophthalmoscope Specifications

  • Coaxial Ophthalmoscope:
    • Temperature Limitation:
      • Operating: 59 to 104 degrees F (10 to 49 degrees C).
      • Transport/Storage: -4 to 120 degrees F (-20 to 55 degrees C).
    • Humidity Limitation:
      • Operating: 30% to 90%.
      • Transport/Storage: 10% to 95%.
    • Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.
  • MacroView Otoscope:
    • Dimensions: 7 cm x 4.5 cm x 5.5 cm.
    • Weight: 115 g.
    • Sealed Pneumatic Otoscopy: Yes.
    • Illumination Type: Ring Fiber Optics.
    • Lamp Type: SureColor LED.
    • Lamp Life, Rated: 60+ years based on typical use.
    • Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
    • Magnification: ~5X.
    • Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
    • Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
    • Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.

Configurations

Welch Allyn 3.5V Diagnostic Set with Coaxial LED Ophthalmoscope Configurations

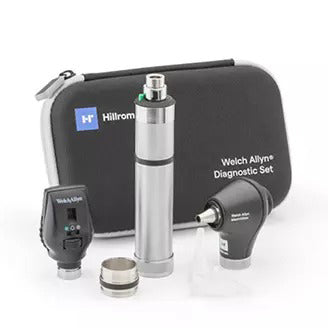

  • #71-SM2CXX: 1 Metal Nickel Cadmium Power Handle and Hard Case.
  • #71-SM2LXU: 1 Lithium Ion Power Handle and Hard Case.

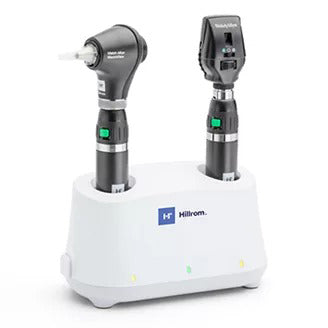

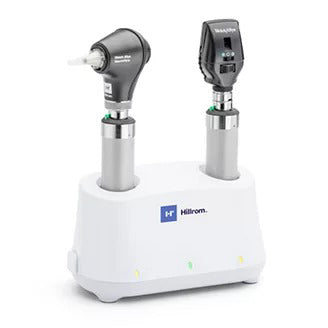

  • #71-SM2NDX: 2 Metal Nickel Cadmium Power Handles and Universal Desk Charger.
  • #71-SM2LDX: 2 Lithium Ion Power Handles and Universal Desk Charger.

Literature

Welch Allyn 3.5V Diagnostic Set with Coaxial LED Ophthalmoscope Literature

Welch Allyn MacroView and LED Otoscopes Instructions for Use
