Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope

Name: Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope
Brand: Welch Allyn
SKU: WLA-71-PM2LXU-US
Price: 1325.0 USD
Availability: InStock

Welch Allyn 3.5V Diagnostic Set with ...

Liquid error (snippets/ced-product-media line 158): external_video_tag does not support String

Key Features

SKU: WLA-71-PM2LXU-US
Condition: Factory New
Country of Origin: USA

Country of Origin: USA

Country of Origin: USA
Warranty:

Warranty: 1 Year

Warranty: 1 Year

Warranty: 1 Year
Weight: 2.5 lb
Re-designed ophthalmoscope with a familiar form and feel
Portable Lithium-Ion handle provide improved battery life and reduced charge time
Learn more:

Contact The Manufacturer

MFR: Welch Allyn

Ships from MFI Medical

Ships from MFI Medical

Ships from MFI Medical

Items shipped from the manufacturer

This item will be shipped directly from the manufacturer to your doorstep, ensuring that you receive the newest product available. The estimated delivery range provided is based on the manufacturer's inventory levels and is subject to change depending on the quantity ordered. We ship items as soon as they become available, so if you order multiple quantities, you may receive them in separate shipments.

Special order item

A special order item will need to ship to our warehouse from the manufacturer before then shipping to you. The estimated delivery range that you see is based on the information that we receive from the manufacturer, which is also contingent upon your ordered quantity and the current inventory levels of the manufacturer. We will ship the items to you as soon as they become available, which may result in multiple shipments if you order more than one quantity.
MPN: 71-PM2LXU-US

MPN: 71-PM2LDX-US

MPN: 71-PM3LDE-US
Phone: (800) 535-6663

$1,726.00 $1,325.00

Select a Configuration

Variant

Est. Delivery:

Quantity

Earn [points_amount] when you buy this item.

Shop with Confidence

Description

The Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope includes Ophthalmoscope and Otoscope of choice (See Configurations Tab for more details).

Warranty:

PanOptic Basic LED Ophthalmoscope: 1 Year.
MacroView Basic LED Otoscope: 1 Year.
PanOptic Plus LED Ophthalmoscope: 5 Years.
MacroView Plus LED Otoscope for iExaminer: 5 Years.
Universal Desk Charger: 1 Year.

Features

Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Features

Re-designed ophthalmoscope with a familiar form and feel.
Portable Lithium-Ion handle provide improved battery life and reduced charge time.
MacroView Basic Otoscope offers focus-free design and 3x wider viewing area.
PanOptic Basic Ophthalmoscope provides 20x larger viewing area than traditional ophthalmoscopes.

Specifications

Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Specifications

PanOptic Basic LED Ophthalmoscope:
- Dimensions: 3.14" H x 1.77" W x 2.95" D(8 cm x 4.5 cm x 7.5 cm).
- Weight: 130 g.
- Apertures: Small, Large, Red Free, Slit, Fixation target, Cobalt Blue.
- Diopter Range: -20 to +25 D.
- Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
- Crossed-Linear Polarizers: Yes.
- Lamp Type: SureColor LED.
- Lamp Warranty: 7 Years.
- Color: Color Rendering Index (CRI): 95 typical; R9: 85 typical; Color Temperature: 2700K - 3500K.
- Lamp Life: 80+ years (typical).
- Field of View: 20 degrees.
MacroView Basic LED Otoscope:
- Dimensions: 2.75" H x 1.77" W x 2.16" D (7 cm x 4.5 cm x 5.5 cm).
- Weight: 115 g.
- Sealed Pneumatic Otoscopy: Yes.
- Illumination Type: Ring Fiber Optics.
- Lamp Type: SureColor LED.
- Lamp Life, Rated: 60+ years based on typical use.
- Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
- Magnification: ~5X.
- Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
- Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
- Color: Color rendering index (CRI): typical; R9: 90 typical; Color Temperature: 3400K - 4500K.
PanOptic Plus LED Ophthalmoscope:
- Dimensions: 8 cm x 4.5 cm x 7.5 cm.
- Weight: 130 g.
- Apertures: Small, Large, Red Free, Slit, Fixation Target, Cobalt Blue.
- Diopter Range: -20 to +25 D.
- Diopter Steps: -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25.
- Lamp Type: SureColor LED.
- ColorRendering Index (CRI): 95 typical.
- R9: 85 typical.
- Lamp Life: 80+ years (typical).
- Field of View: 20 degree.
- Environmental Conditions:
  - Operating Temperature: 59 degrees F (10 degrees C) to 104 degrees F (49 degrees C).
  - Transport/Storage Temperature: -4 degrees F (-20 degrees C) to 120 degrees F (55 degrees C).
  - Operating Humidity: 30% to 90%.
  - Transport/Storage Humidity: 10% to 95%.
  - Atmospheric Pressure Limitation: 500 hPa to 1060 hPa.
MacroView Plus LED Otoscope for iExaminer:
- iExaminer Digital-Ready: Yes.
- Dimensions: 7 cm x 4.5 cm x 5.5 cm.
- Weight: 115 grams.
- Sealed Pneumatic Otoscopy: Yes.
- Illumination Type: Ring Fiber Optics.
- Lamp Type: SureColor LED.
- Lamp Life, Rated: 60+ years based on typical use.
- Field of View: Around 3 times that of a single-lens otoscope, like the standard-style 250-2.
- Magnification: Around 5X.
- Focus-Free Design: Extended focal length virtually eliminates the need to focus on wide-view otoscope.
- Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
- Color: Color rendering index (CRI): 95 typical; R9: 90 typical; Color Temperature: 3400K - 4500K.
- LED Warranty: 7 Years.
- Optimized for the 719-3 Li-Ion Handle: Stays bright over the life of a battery charge (unlike older designs that dim with use); no color change with dimming (unlike halogen).

Configurations

Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Configurations

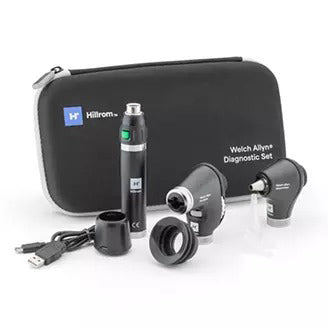

#71-PM2LXU-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, one Lithium Ion Plus Rechargeable Power Handle, and Hard Case.

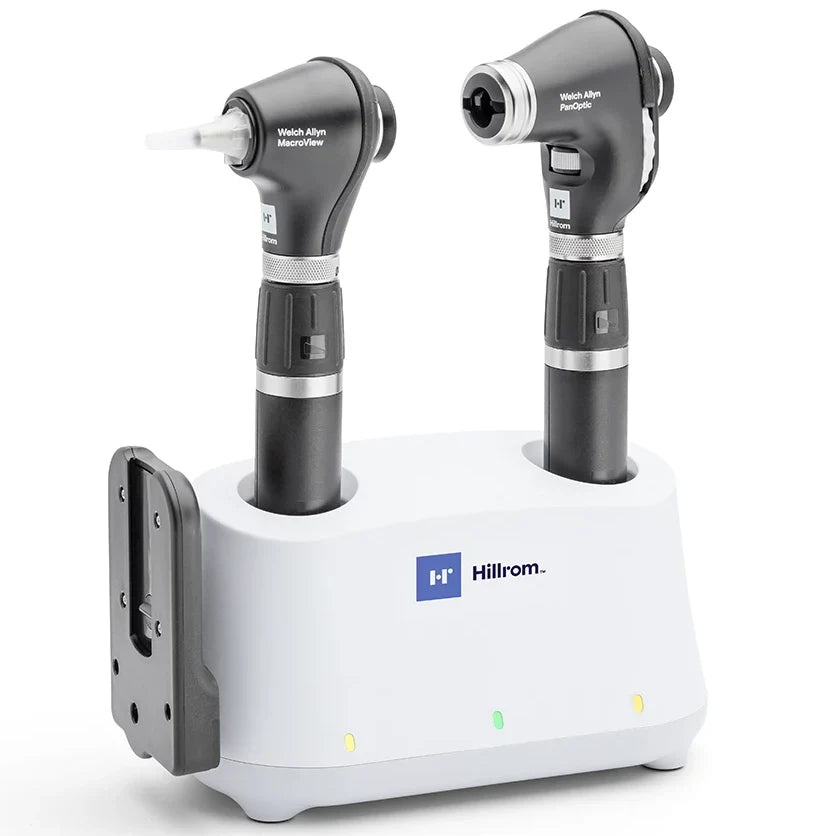

#71-PM2LDX-US: PanOptic Basic LED Ophthalmoscope, MacroView Basic LED Otoscope, Universal Desk Charger, and two Lithium Ion Rechargeable Power Handles.
#71-PM3LDE-US: PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Universal Desk Charger, and two Premium Lithium Ion Plus USB Rechargeable Power Handles.

Literature

Welch Allyn 3.5V Diagnostic Set with Ophthalmoscope and Otoscope Literature

Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes 4th Edition EMC Tables
