Description

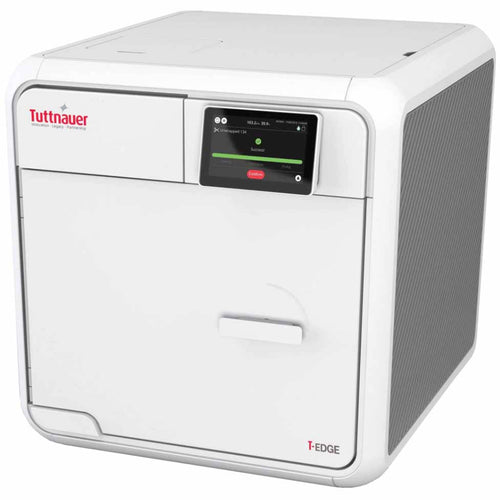

The Tuttnauer T-Edge 10 Autoclave includes five trays, a drain tube, and tray holder.
Warranty: 2 Years - Free from Defects in Materials and Workmanship.
The T-Edge 10 is a fully-automated autoclave with a range of one-button sterilization programs. It is available in Class B and Class S models, each with four pre-programmed cycles with drying times between 20 minutes and 60 minutes, as well as unwrapped and delicate settings. It has a six gallon volume capacity, with room for up to five trays of instruments. The device is also equipped with one ethernet port, four USB ports, WiFi, and an integrated automatic water filling and drain connection, which removes the need to empty waste water. The door has a 110° opening radius, and would fit comfortably on a shelf measuring 23.6" (60 cm) in depth.
The user-friendly device has convenient touchpad controls and automatic programs for quick selection. It's also equipped with advanced documentation and traceability via barcode and data printouts. Another unique feature is that users can control the autoclave through Wi-Fi via smartphones or tablets.
The Class B model comes with the specialized Virus Protection Shield cycle, which heats the trays up to 180° for 15 minutes, effectively eliminating bacteria, viruses, and fungi - including coronavirus. This cycle won't exhaust air in the chamber during the procedure. The Class S model utilizes a gravity steam sterilization method, but if customers have the Class S model and wish to upgrade to Class B (Pre/Post Vacuum version), the autoclave can be updated by purchase of the Software Update (#T-EDGE CLASS B SW UPGRADE). This removes the need to purchase a whole new device.
Features
Tuttnauer T-Edge 10 Autoclave Features
- Class S can be upgraded to Class B through a software update, instead of purchasing a new device. It is the only upgradeable autoclave on the market!
- Monitor your autoclave via smartphone or tablet app.
- Large capacity with up to five trays of storage.
- Convenient touchpad controls.
- Fast cycles.
- Large door radius ensures it will not block your smooth loading of the chamber.
- Designed to meet all the most current sterilization standards ANSI/AAMI ST55 ensuring the highest sterilization levels.
Specifications
Tuttnauer T-Edge 10 Autoclave Specifications
- Chamber Size: 18" (depth) x 10" (diameter).
- Volume: 6 gallons (23 liters).
- Overall Dimensions: 18.9" x 19.23" x 22.44".
- Door Radius: 110°.
- Number of Trays: 5.
- Connections: (1) ethernet port, (4) USB ports, WiFi, automatic water filling and drain connection (for automatic waste water removal).
- Standard Cassette Capacity: 3 Full + 3 Half.
- Frequency: 60 Hz.
- Power Consumption: 2000 W.
- Weight: 110 lb.
Configurations
Tuttnauer T-Edge 10 Autoclave Configurations
- #T-EDGE10S 110V: 110 V - Class S (Gravity Cycle).
- #T-EDGE10S 220V: 220 V - Class S (Gravity Cycle).
- #T-EDGE10B 110V: 110 V - Class B (Pre/Post Vacuum).
- #T-EDGE10B 220V: 220 V - Class B (Pre/Post Vacuum).
Accessories
Tuttnauer T-Edge 10 Autoclave Accessories
The following accessories are compatible and commonly purchased with the T-Edge 10 Autoclave:
- Clean & Simple Ultrasonic/Enzymatic Tablets:
- #CS0004: Pack of 4.
- #CS0064: Box of 64.
- #CS0144: Box of 144.
- #CS0064-CS: Case of 768.
- #CS0144-CS: Case of 1728.
- Clean & Simple Ultrasonic Cleaner:
- #CSU1: 0.85 gallon.
- #CSU1H: 0.85 gallon with Heater.
- #CSU3: 3.25 gallon.
- #CSU3H: 3.25 gallon with Heater.
- #CSU6: 6.5 gallon.
- #CSU6H: 6.5 gallon with Heater.
- #DS 1000: Steam Distiller Purification System.
- #T-EDGE CLASS B SW UPGRADE: Tuttnauer T-Edge Autoclave Class B Software Upgrade.
