Description

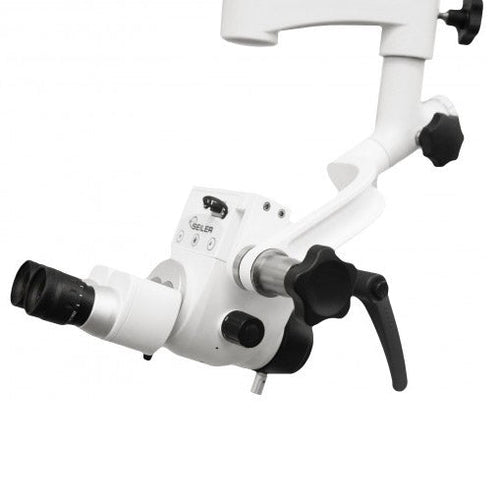

The Seiler Alpha Air 6 ENT Microscope is a high quality ENT microscope with six levels of magnification, apochromatic lenses for superior optics, standard 150,000 LUX LED illumination and a specially engineered Gas Piston Pantographic Arm for superior maneuverability.
Warranty: Lifetime - Optics and Mechanics.
The Seiler Alpha Air 6 ENT Microscope is a multi-purpose, extremely powerful microscope. It uses high quality German optics and the brightest standard LED light source on the market. The Air 6 has a compact design that allows it to function in any environment, no matter the size constraints.
Features
Seiler Alpha Air 6 ENT Microscope Features
- Six-Step Turret magnification system.
- LED illumination + 150,000 LUX.
- 10x widefield eyepieces with dioptic locks.
- True Coaxial Illumination: Shadow Free.
- USB and 12 VDC power support directly on optic pod.
- Red free filter standard (yellow and green filter).
- Five Mounting Options Available: Floor, Wall, High Wall, Ceiling, and Tabletop.
- Two Head Options Available: Fixed 45° Head or Inclinable 0 - 220° Binocular Head.
Specifications
Seiler Alpha Air 6 ENT Microscope Specifications
- Weight: 162 lb (73.48 kg).
- Working Distance:
- Minimum possible: 6.89" (175 mm).
- Maximum possible: 15.75" (400 mm).
- Microfocus Vertical Adjustment Range: 13 mm.
- Objective Lens:
- Standard Setup: Æ’=250 mm.
- Optional Setup: 175 - 400 mm.
- Eyepieces:
- Standard Setup: 10x.
- Optional Setup: 12.5x, 16x, 20x.
- Diopter Setting: -6 to +6.
- Field of Vision:
- Standard Setup: 9 - 72 mm.
- Optional Setup: 4.95 - 105.88 mm.
- Magnification Levels:
- Standard Setup: 2.8x, 4.8x, 5.3x, 8.7x, 11x, 17x.
- Optional Setup:
- Max Low: 1.7x.
- Max High: 48.5x.
- Power Supply: Mains Power 96 - 264 VAC; 47 - 63 Hz.
- Auxiliary Power Jack: 12 VDC 1.0 A maximum.
- Fuses: (2) 3 AMP 250 V Fast Blow 5x20 mm.
- Illumination Bulb: USB 2 Jack; 5.0 VDC; 1 AMP.
- Power Cable: IEC 320/C13 Hospital Grade.
- Light Source Type: LED.
- Color Temperature: 5700 CCT.
- LED Life: > 50,000 hours.
- Typical Illuminance: 120,000 - 150,000 LUX.
- Operating Temperature: 50° F - 70° F (10° C - 25° C).
- Storage Temperature: 38° F - 122° F (10° C - 50° C).
- Operating Relative Humidity: 30 - 75%.
- Storage Relative Humidity: 0 - 100% Non-Condensing.
- Air Pressure: 700 HPA to 1060 HPA.
Configurations
Seiler Alpha Air 6 ENT Microscope Configurations
- #AA6-ENT1-LED: Floor Mounted Unit with Fixed Head.
- #AA6-ENT2-LED: Wall Mounted Unit with Fixed Head.
- #AA6-ENT3-LED: High Wall Mounted Unit with Fixed Head.
- #AA6-ENT4-LED: Ceiling Mounted Unit with Fixed Head.
- #AA6-ENT5-LED: Tabletop Mounted Unit with Fixed Head.
- #AA6-ENT1-LED220: Floor Mounted Unit with Inclinable Head.
- #AA6-ENT2-LED220: Wall Mounted Unit with Inclinable Head.
- #AA6-ENT3-LED220: High Wall Mounted Unit with Inclinable Head.
- #AA6-ENT4-LED220: Ceiling Mounted Unit with Inclinable Head.
- #AA6-ENT5-LED220: Tabletop Mounted Unit with Inclinable Head.
