Condition:
-
Warranty:
- Weight: 87.0 lb
-
Learn more:
-
MFR:
Seiler
Ships from Manufacturer
-
MPN: AA6-ENT1-LED
- Phone: (800) 489-2282
Frequently asked questions
Does the microscope come with any filters?
Yes, the Seiler Alpha Air 6 ENT Microscope includes a red-free filter as standard, along with yellow and green filters for enhanced viewing options.
What versatile mounting options are available?
The Seiler Alpha Air 6 ENT Microscope offers extensive flexibility for installation, designed to integrate into any clinical environment. The available mounting options are:
- Floor Mount
- Wall Mount
- High Wall Mount
- Ceiling Mount
- Tabletop Mount
Does this microscope feature powerful LED illumination?
Yes, the Seiler Alpha Air 6 utilizes powerful LED illumination (standard 150,000 LUX), which is noted as the brightest standard source available on the market, ensuring optimal visualization. This high-performance system includes:* True Coaxial Illumination: Provides completely shadow-free viewing for high-precision surgical and clinical applications.* Longevity: The LED light source boasts a remarkably long lifespan of over 50,000 hours.* Color Specifications: Features a color temperature of 5700 CCT.

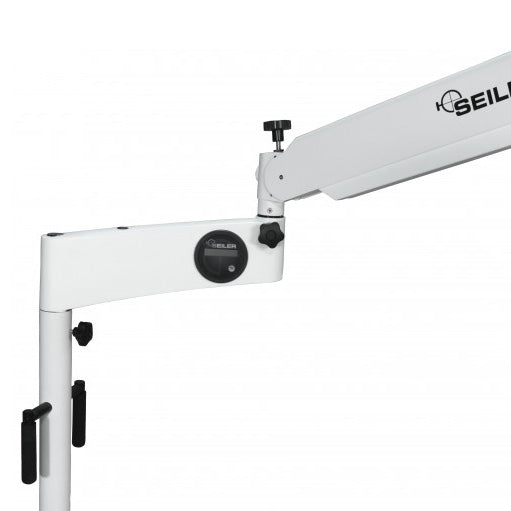

What type of arm does the microscope use for maneuverability?
The Seiler Alpha Air 6 ENT Microscope uses a gas piston pantographic arm to ensure smooth and precise positioning during use.
Does the microscope use universal power?
Yes, the Seiler Alpha Air 6 is designed for universal operation, supporting a wide range of global power standards. Its power cable is a Hospital Grade IEC 320/C13 type, ensuring reliability.
Power Specifications:
- Mains Power Supply: 96 – 264 VAC; 47 – 63 Hz
- Auxiliary Power: The optic pod provides additional DC support:
- 12 VDC 1.0 A maximum auxiliary jack
- USB 2 jack supplying 5.0 VDC; 1 AMP
What are the six magnification levels?
The Seiler Alpha Air 6 utilizes a robust Six-Step Turret magnification system paired with superior apochromatic German optics to ensure high-quality visualization. The standard magnification steps included are:
- 2.8x
- 4.8x
- 5.3x
- 8.7x
- 11x
- 17x
For enhanced versatility, optional configurations allow the microscope’s total magnification range to extend from a minimum low of 1.7x up to an impressive maximum of 48.5x.
What is the working distance range of this microscope?
The Seiler Alpha Air 6 ENT Microscope offers a versatile working distance range, adjustable between 6.89” (175 mm) and 15.75” (400 mm). This flexibility allows clinicians to customize the positioning based on the specific requirements of their diagnostic or surgical procedures.

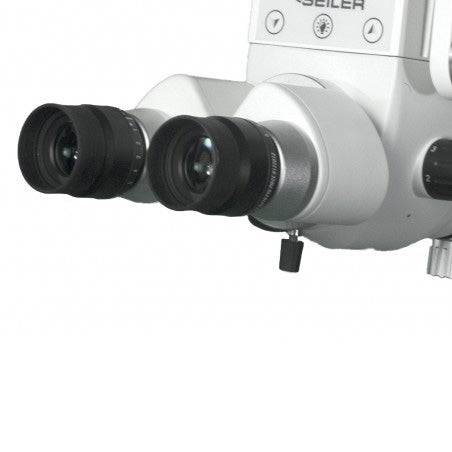

What are the standard eyepieces and available options?
The Seiler Alpha Air 6 includes high-quality 10x widefield eyepieces as standard. These feature dioptic locks and support a flexible diopter setting range, from -6 to +6.
For additional magnification versatility, optional eyepieces are also available:
- 12.5x
- 16x
- 20x
What binocular head options are available?
The Seiler Alpha Air 6 ENT Microscope offers flexibility with two distinct binocular head options, allowing you to choose the best configuration for user comfort and clinical setting:<ul><li>Fixed 45° Head: This is the standard, fixed-angle viewing option.</li><li>Inclinable 0 - 220° Binocular Head: This option provides superior ergonomics and positional control, allowing the user to adjust the viewing angle across the full range from 0° to 220°.</li></ul>
What kind of lenses does it use?
The Seiler Alpha Air 6 ENT Microscope features apochromatic lenses for superior optical performance and exceptional image clarity. This ensures accurate observation during detailed examinations.
