Description

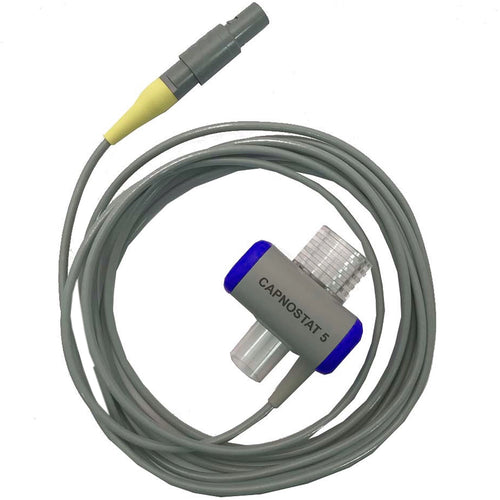

The Respironics CAPNOSTAT 5 Main-Stream CO Sensor Module (#etco2main / 1015928 - End Tidal CO) includes the Disposable Adult Airway Adapter (#6063-00) and Disposable Neonatal (Infant/Pediatric) Airway Adapter (#6312-00).
Warranty: 1 Year.
Note: Sensor module is not compatible with monitors which require certain barcoding. Please confirm with the manufacturer of your monitor prior to ordering.
The Revolutionary CAPNOSTAT 5 CO Sensor has no moving parts.
The versatile module is compatible with monitors from others manufacturers, such as the Edan M3B Vital Signs Monitor and patient monitors (iM8, iM50, iM60, iM70, iM80, and previous model M50 and M80).
Key Elements of the Respironics Solid State Design:
- A patented IR Source capable of being pulsed on and off very rapidly, which eliminates the need to interrupt the IR Beam with a rotating chopper wheel.
- A beam splitter allows a single beam infrared pulse to simultaneously strike reference and measurement detectors, replacing a sealed gas reference cell rotating on a chopper wheel. Since reference and measurement signals occur at precisely the same time, changes in the optical signal due to contaminants in the airway are effectively removed from the signal. This results in superior performance under adverse clinical conditions.
Initial CO indication in just 15 seconds. In addition to being extremely rugged, the CAPNOSTAT 5 can display a Capnogram 15 seconds after power-up and is fully operational within an additional 15 seconds.
Features
Respironics CAPNOSTAT 5 Main-Stream CO Sensor Module Features
- New Technology: New solid state design eliminates moving parts for superior durability.
- Verification Cells: Conveniently located on the sensor cable to quickly confirm calibration. No routine calibration is required.
- Wide Selection of Adapters: Comprehensive family of airway adapters designed with large window surface area resulting in superior performance, even in the presence of patient secretions.
- Durability: To pass this grueling test, the CAPNOSTAT 5 is required to remain fully functional after being dropped 100 times from 6 feet onto a hard surface.
