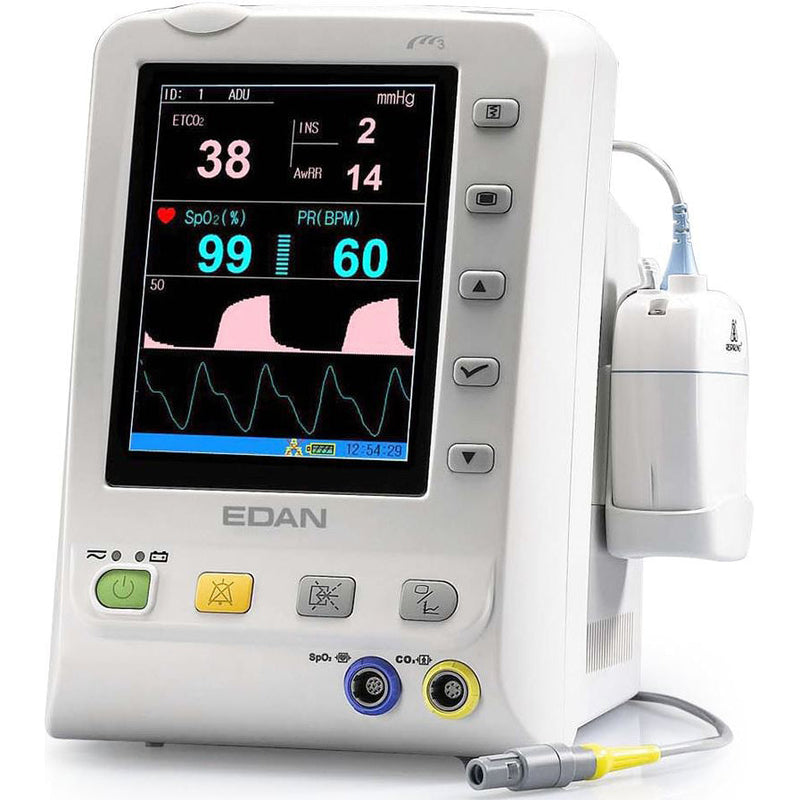

Edan M3B Vital Signs Monitor

The Edan M3B Vital Signs Monitor comes standard with:

• Edan Adult Reusable SpO₂ Sensor [(Lemo) (#02.01.210119-11)].
• Power Cord [(USA standard) (#01.13.036106)].
• Rechargeable Lithium-ion Battery [(14.8 V, 2.2 Ah) (#21.21.064168)].
• Ground Cable (#11.13.114214).
• User Manual.

Warranty: 2 Years (Monitor) / 1 Year (Accessories) - Free from Defects in Materials and Workmanship.

Note: Data saved on the USB is encrypted. Users cannot simply see the vitals on a computer without the proper software. CMS/CMS-Lite software is required for viewing live to capture that data as a PDF. Alternatively an installed printer can be used to view results. Printers MUST be added to a monitor order at the time of purchase. Otherwise a $195 labor fee plus the cost of the printer will be added. Please select the with printer option at checkout or contact MFI directly before purchasing to make sure your order includes a printer.

The M3B ensures effective capnography monitoring for intubated and non-intubated patients for continuous long-term monitoring. With its highly advanced SpO₂ and Respironics CO₂ monitoring technologies, it is tailored for mechanically ventilated and non-intubated patients.

It is intended for use only under regular supervision of clinical personnel. It is suitable for adult, pediatric, and neonatal patients in a hospital environment and intra-hospital moves.

Edan M3B Vital Signs Monitor Features

• 5.7" high resolution, color TFT screen display for easy reading (640 x 480 resolution).
• Lightweight, portable design and user-friendly interface for easy operation.
• Edan SpO₂, Pulse Rate, and Respironics sidestream or mainstream CO₂ measurement.
• Backlight control and standby mode for power saving.
• Display numeric and waveform information simultaneously.
• Nurse call.
• Powerful storage capacity.
• Built-in lithium-ion battery for eight hours continuous working.
• Trend table review and record.
• Trend graph review and record.
• USB data storage and review.
• Wired and wireless network capability.

Edan M3B Vital Signs Monitor Specifications

• Physical:
  • Dimensions: 200.8 mm (L) x 241 mm (H) x 189 mm (D).
  • Weight: 6.6 lb (3 kg).
• Power Supply:
  • AC Power: 100 - 240 VAC, 50/60 Hz.
  • Battery Type: Lithium-ion.
  • Voltage: 14.8 V DC.
• Edan SpO₂:
  • Measurement and Alarm Range: 0 ~ 100%.
  • Resolution: 1%.
  • Accuracy:
    • Adult/Pediatric: ± 2% (70 ~ 100%).
    • Neonate: ± 3% (70 ~ 100%).
  • PR Measurement and Alarm Range: 25 ~ 300 bpm.
  • Resolution: 1 bpm.
  • Accuracy: 3 bpm.
  • Refresh Rate: 1 s.

Edan M3B Vital Signs Monitor Configurations

Respironics LoFlo EtCO₂ Side-Stream Module (#M3B.S): Sidestream is most often used for non-intubated patients with the use of nasal or nasal/oral cannulas. However, the Sidestream module can also be used on intubated patients with the use of an airway adapter (typically used for shot term ventilator care - under three days). Sidestream is commonly used in Emergency Medicine and Procedural Sedation. Side-Stream Module includes all standard accessories, plus:

• Respironics Disposable CO₂ Nasal Cannula - Adult (#3468ADU-00).
• Respironics Adult/Pediatric Airway Adapter Set With Dehumidification tubing (#3473ADU-00).
• Respironics Disposable Sampling Line Kit with Nafion and Dehumidification Tubing (#3475-00).
• #M3B.S-P: Optional Thermal Printer Kit (#12.01.19084).

Respironics CAPNOSTAT5 EtCO₂ Main-Stream Module (#M3B.M): The Mainstream sensor can only be used on patients who are intubated and on ventilators. The CAPNOSTAT Mainstream technology is designed for use for long-term ventilator care, typically longer than three days and up to 30 days or longer. Main-Stream Module includes all standard accessories, plus:

• Respironics Disposable Adult Airway Adapter (#6063-00).
• Respironics Disposable Neonatal Airway Adapter (#6312-00).
• #M3B.M-P: Optional Thermal Printer Kit (#12.01.19084).

Note: Call MFI to customize modules.

Edan M3B Vital Signs Monitor Accessories

The M3B Vital Signs Monitor is commonly purchased with:

• #12.01.19084: Thermal Printer Upgrading Kit.
• #01.57.78035: Thermal Printing Paper for M3, M3B, M50, iM50, and M80 Patient Monitors.
• #02.04.240050: Data Management Kit.
• #MT-207: Rolling Stand with upper basket and plate.

Edan M3B Vital Signs Monitor Literature

Edan M3B Capnograph Monitor Brochure

Edan M3B Vital Signs Monitor User Manual
