Description

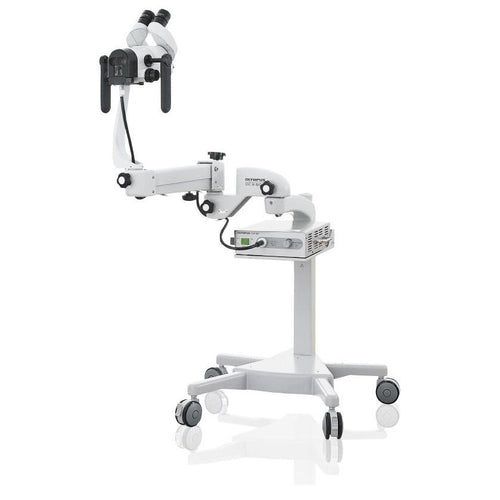

The Olympus OCS-500 Colposcope includes the zoom microscope body, balance arm, horizontal arm, stand, floor stand base, and a halogen light source with fiber optic light cable. The video configuration also includes a CCD camera and a BNC cable.
Warranty: 90 Days - Parts and Labor.
The OCS-500 Colposcope combines high quality digital imaging, extended magnification, and smooth maneuverability, making this the key to more efficient office Gynecology. The versatility of this system allows for greater range of examination, recording, and editing.
The OCS-500's video system (optional) and light source can be used for Hysteroscopy. Thanks to the adoption of an eyepiece mount, switching from Colposcopy to Hysteroscopy is quick and easy.
Features
Olympus OCS-500 Colposcope Features
- Refined Optical Performance: The OCS-500 incorporates optical focusing, instead of requiring you to move the colposcope body, for sharp images within a working distance of 220 to 350 mm. In addition, non-step continuous zoom allows 6x zoom at variable distances for magnification from 2.7x - 23.4x.
- Colposcopy and Hysteroscopy in a Single System: The OCS-500's video system and light source can be used for Hysteroscopy. Thanks to the adoption of an eyepiece mount, switching from Colposcopy to Hysteroscopy is quick and easy.
- Single-Handed Operation: Several different control knobs are gathered close together, so you can adjust the view field, zoom, or focus with just one hand using either a left or right grip.
- Digital Documentation: In addition to colposcopic image digital recording, hysteroscopic image digital recording is possible with a digital camera. Using a digital color photo printer, recorded images stored in SD memory cards can be printed in no time.
- Compatible with the following Video Systems:
- Olympus OTV-S7V VISERA Endoscopic Camera System.
- OTV-SC Video Systems.
- Compatible with the following Light Sources:
- CLV-S40/S45 VISERA Xenon Light Source.
- CLH-SC Halogen Light Source.
Specifications
Olympus OCS-500 Colposcope Specifications
- Operating Air Temperature: 50 to 104 °F (10 to 40 °C).
- Dimensions: 23.5" (Pedestal Base) x 55" (Overall Height) (60 cm x 140 cm).
- Eyepiece:
- Magnification: 10x.
- Field Number: 22.
- Zooming:
- Drive System: Manual Drive by knob rotation.
- Zoom Ratio: 1:6.
- Focusing:
- Focus System: Adjustable focal length.
- Drive System: Manual Drive by knob rotation.
- Focus Adjustment Range: 220 - 350 mm.
- Illumination:
- System: Light guide.
- Filter: Detachable green filter.
- Magnifications:
- WD220: 3.7 - 23.4X.
- WD300: 3.0 - 18.8X.
- WD350: 2.7 - 16.9X.
- Field Of View:
- WD220: 58.5 - 9.3 mm.
- WD300: 73.1 - 11.6 mm.
- WD350: 82.4 - 13.1 mm.
- Floorstand:
- Support System: Floorstand.
- Balancing System: Pantographic arm balancing using spring.
- Balance Adjustment Range: 4 - 7 kg.
- Balance Adjustment: Handle Adjusted.
- Binocular Tube Tilt: 10° upward and 30° downward relative to the horizontal observation optical axis.
- Vertical Arm Movement Range: 300 mm.
- Arm Rotation Range: 270°.
Configurations
Olympus OCS-500 Colposcope Configurations
- #MFI-OLY-CS-500: Standard (No Video).
- #MFI-OLY-CS-500-VIDEO: With Video.
