Description

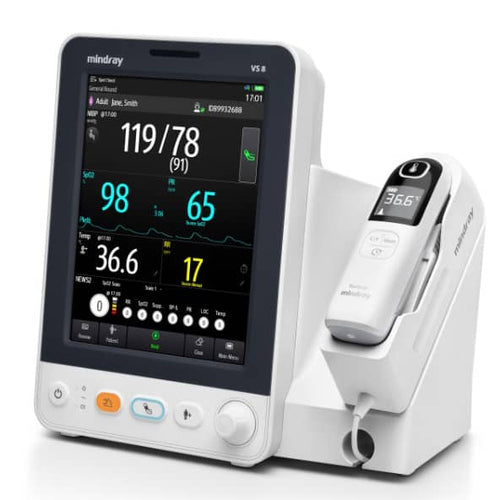

The Mindray VS 8 Vital Signs Monitor is available in several configurations to meet your needs including NIBP, pulse rate, SpO, and temperature options.
Warranty: 3 Years.
Boasting comprehensive and flexible workflow options, the VS 8 Vital Signs Monitor is ideally suited for everything from inpatient admissions to spot checks and more. It delivers vital signs measurements at rapid speed empowering clinicians to deliver high quality bedside care with unmatched clinical efficiency. This complete workstation is easy to clean and easier to install thanks to a smartphone-style Startup Wizard that allows caregivers to configure their own clinical requirements step-by-step.
Features
Mindray VS 8 Vital Signs Monitor Features
- Vivid user interface.
- 8" high resolution screen allows you to easily view more information.
- Intuitive gesture operation thanks to the capacitive touchscreen makes the VS 8 easy to use.
- Early warning scores ensure a timely reaction to patient deterioration.
- Provides a comprehensive range of vital signs parameters with a variety of tools to support clinical decisions.
- Compliant with EWS standards.
- Automatic scoring system limits the need for manual calculation and imput.
- BP average improves hypertension screening.
- Integrates a scientific program to help practice unattended AOBP.
Specifications
Mindray VS 8 Vital Signs Monitor Specifications
Physical Dimensions:
- Size: 252 mm x 170 mm x150 mm.
- Weight: 5.95 lb (2.7 kg).
Power Requirements:
- Line Voltage: 100 to 240 VAC (± 10%).
- Current: 0.9 to 0.5 A.
- Frequency: 50/60 Hz (± 3 Hz).
- Fuse: T2AL-250V.
- Battery Type: Chargeable non-Smart Lithium-Ion battery.
- Voltage: 10.95 VDC.
- Capacity: 5000 mAh.
Display:
- Screen Type: Capacitive touch screen.
- Screen Size (Diagonal): 8”.
- Resolution: 1024×768 pixels.
Recorder:
- Method: Thermal dot array.
- Paper Speed: 25 mm/s.
- Number of Waveform Channels: 1.
LEDs:
- Alarm Lamp: 1 (three color coded: red, yellow and cyan).
- Power on LED: 1 (green).
- AC power LED: 1 (green).
- Battery LED: 1 (two color coded: yellow and green).
Monitor Interface Specifications:
- Power: 1 AC power input connector.
- Wired Network: 1 RJ45 connector, 100 BASE-TX.
- USB: 2 standard connectors, USB 2.0, type A.
- Equipotential Grounding Terminal: 1.
- Multi-Functions Connector: 1 MINI-D RIBBON connector.
- External battery Connector: 1.
Environmental Specifications:
- Main Unit:
- Temperature:
- Operating: 0 to 40 °C.
- Storage: –20 to 60 °C.
- Relative Humidity (Non-Condensing):
- Operating: 15% to 95%.
- Storage: 10% to 95%.
- Barometric:
- Operating: 427.5 mmHg to 805.5 mmHg (57.0 kPa to 107.4 kPa).
- Storage: 120 to 805.5 mmHg (16.0 kPa to 107.4 kPa).
- Exergen TemporalScanner Thermometer:
- Temperature:
- Operating: 15.5 to 40 °C (60 to 104 °F).
- Storage: –20 to 50 °C (-4 to 122 °F).
- Relative Humidity (Non-Condensing):
- Operating: up to 95%.
- Storage: up to 95%.
Configurations
Mindray VS 8 Vital Signs Monitor Configurations
All configurations include NIBP and Pulse Rate.
- #121-002157-00: NIBP and Pulse Rate.
- #121-002416-00: NIBP, Pulse Rate, and TrueTemp.
- #121-002163-00: NIBP, Pulse Rate, and Exergen Temporal Temp.
- #121-002160-00: NIBP, Pulse Rate, and Nellcor OxiMax SpO.
- #121-002159-00: NIBP, Pulse Rate, and Masimo SpO.
- #121-002414-00: NIBP, Pulse Rate, Nellcor OxiMax SpO, and TrueTemp.
- #121-002165-00: NIBP, Pulse Rate, Nellcor OxiMax SpO, and Exergen Temporal Temp.
- #121-002413-00: NIBP, Pulse Rate, Masimo SpO, and TrueTemp.
- #121-002164-00: NIBP, Pulse Rate, Masimo SpO, and Exergen Temporal Temp.
