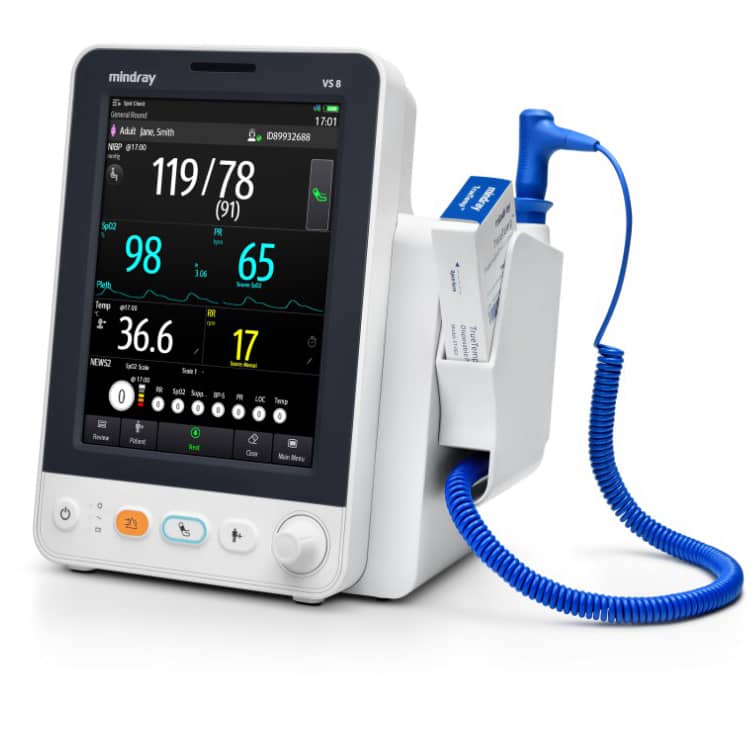

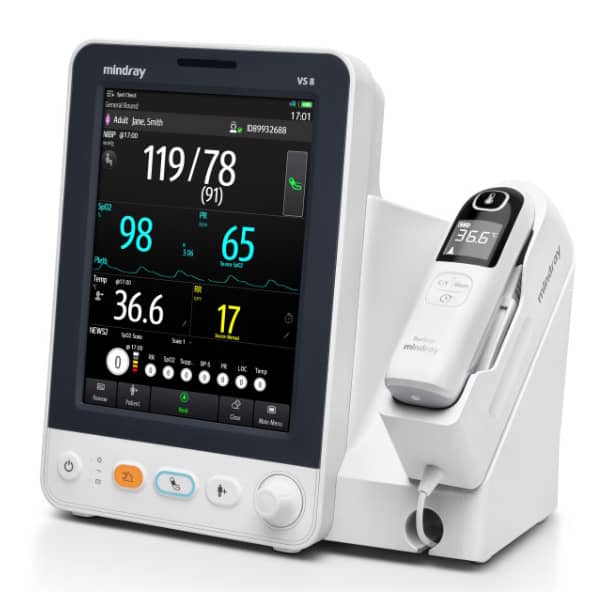

Mindray VS 8 Vital Signs Monitor

Mindray VS 8 Vital Signs Monitor

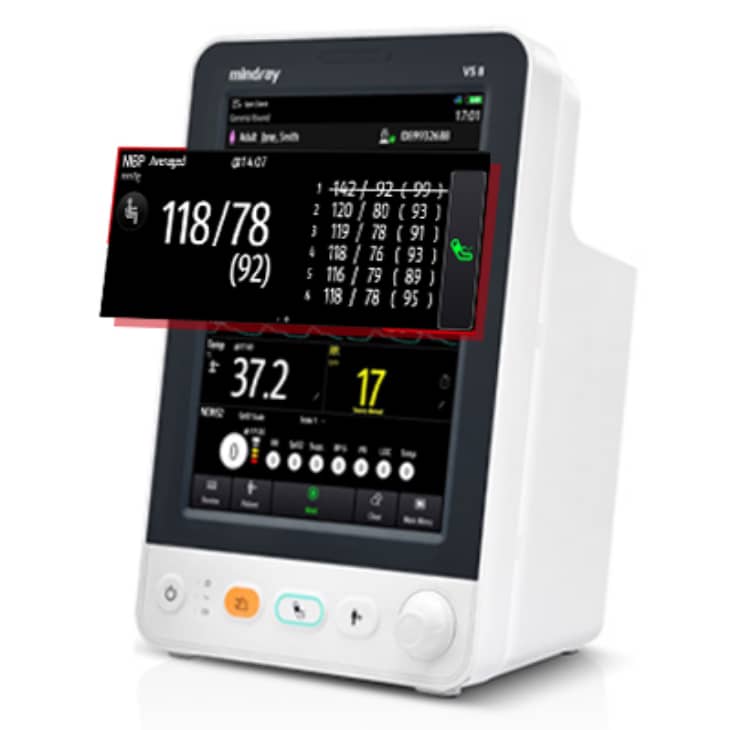

Mindray VS 8 Vital Signs Monitor BP Average

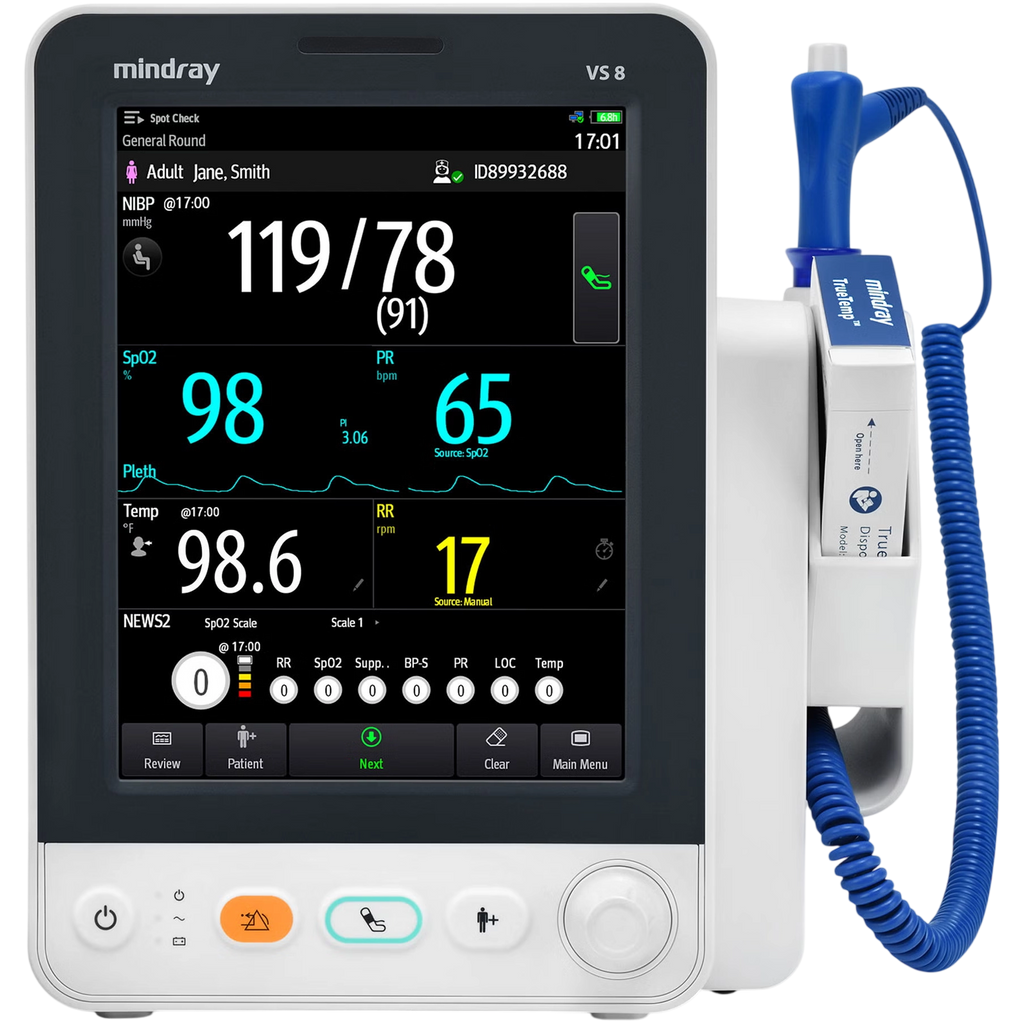

Mindray VS 8 Vital Signs Monitor User Interface

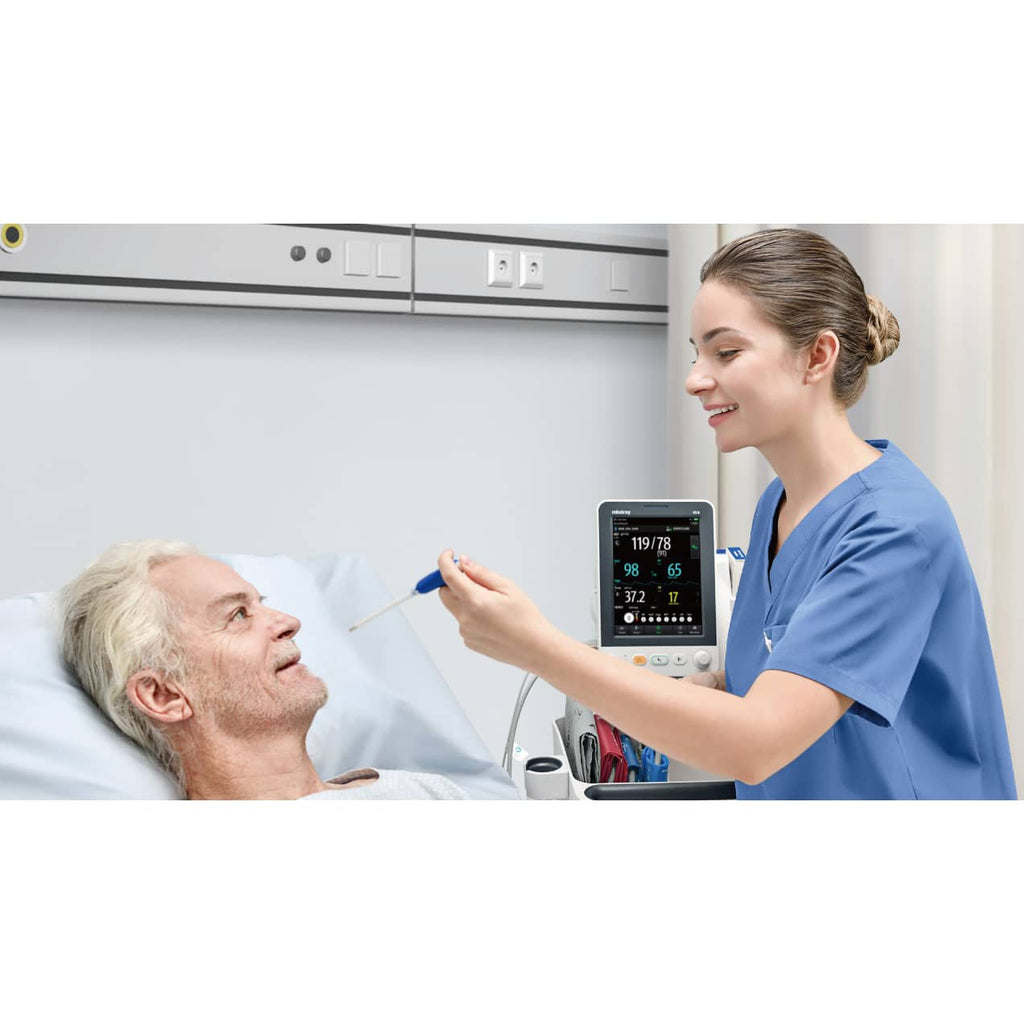

Mindray VS 8 Vital Signs Monitor In Use
Mindray VS 8 Vital Signs Monitor
Mindray VS 8 Vital Signs Monitor BP Average
Mindray VS 8 Vital Signs Monitor User Interface
Mindray VS 8 Vital Signs Monitor In Use
Key Features
  • SKU: MDY-121-002157-00
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 3 Years
  • Weight: 9.4 lb
  • 8" high resolution screen allows you to easily view more information
  • Intuitive gesture operation thanks to the capacitive touchscreen makes the VS 8 easy to use
  • Early warning scores ensure a timely reaction to patient deterioration
  • Compliant with EWS standards

  • Learn more:

Contact The Manufacturer
  • MFR: Mindray
    Ships from Manufacturer
  • MPN: 121-002157-00
  • Phone: (888) 464-5571
$1,675.00 $908.72

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Mindray VS 8 Vital Signs Monitor is available in several configurations to meet your needs including NIBP, pulse rate, SpO2, and temperature options. It includes a standard adult size cuff.

Warranty: 3 Years.

Boasting comprehensive and flexible workflow options, the VS 8 Vital Signs Monitor is ideally suited for everything from inpatient admissions to spot checks and more. It delivers vital signs measurements at rapid speed empowering clinicians to deliver high quality bedside care with unmatched clinical efficiency. This complete workstation is easy to clean and easier to install thanks to a smartphone-style Startup Wizard that allows caregivers to configure their own clinical requirements step-by-step.

Features

Mindray VS 8 Vital Signs Monitor Features

  • Vivid user interface.
  • 8" high resolution screen allows you to easily view more information.
  • Intuitive gesture operation thanks to the capacitive touchscreen makes the VS 8 easy to use.
  • Early warning scores ensure a timely reaction to patient deterioration.
  • Provides a comprehensive range of vital signs parameters with a variety of tools to support clinical decisions.
  • Compliant with EWS standards.
  • Automatic scoring system limits the need for manual calculation and imput.
  • BP average improves hypertension screening.
  • Integrates a scientific program to help practice unattended AOBP.

Specifications

Mindray VS 8 Vital Signs Monitor Specifications

Physical Dimensions:

  • Size: 252 mm x 170 mm x150 mm.
  • Weight: 5.95 lb (2.7 kg).

Power Requirements:

  • Line Voltage: 100 to 240 VAC (± 10%).
  • Current: 0.9 to 0.5 A.
  • Frequency: 50/60 Hz (± 3 Hz).
  • Fuse: T2AL-250V.
  • Battery Type: Chargeable non-Smart Lithium-Ion battery.
  • Voltage: 10.95 VDC.
  • Capacity: 5000 mAh.

Display:

  • Screen Type: Capacitive touch screen.
  • Screen Size (Diagonal): 8”.
  • Resolution: 1024×768 pixels.

Recorder:

  • Method: Thermal dot array.
  • Paper Speed: 25 mm/s.
  • Number of Waveform Channels: 1.

LEDs:

  • Alarm Lamp: 1 (three color coded: red, yellow and cyan).
  • Power on LED: 1 (green).
  • AC power LED: 1 (green).
  • Battery LED: 1 (two color coded: yellow and green).

Monitor Interface Specifications:

  • Power: 1 AC power input connector.
  • Wired Network: 1 RJ45 connector, 100 BASE-TX.
  • USB: 2 standard connectors, USB 2.0, type A.
  • Equipotential Grounding Terminal: 1.
  • Multi-Functions Connector: 1 MINI-D RIBBON connector.
  • External battery Connector: 1.

Environmental Specifications:

  • Main Unit:
    • Temperature:
      • Operating: 0 to 40 °C.
      • Storage: –20 to 60 °C.
    • Relative Humidity (Non-Condensing):
      • Operating: 15% to 95%.
      • Storage: 10% to 95%.
    • Barometric:
      • Operating: 427.5 mmHg to 805.5 mmHg (57.0 kPa to 107.4 kPa).
      • Storage: 120 to 805.5 mmHg (16.0 kPa to 107.4 kPa).
  • Exergen TemporalScanner Thermometer:
    • Temperature:
      • Operating: 15.5 to 40 °C (60 to 104 °F).
      • Storage: –20 to 50 °C (-4 to 122 °F).
    • Relative Humidity (Non-Condensing):
      • Operating: up to 95%.
      • Storage: up to 95%.

Configurations

Mindray VS 8 Vital Signs Monitor Configurations

All configurations include NIBP and Pulse Rate.

  • #121-002157-00: NIBP and Pulse Rate.
  • #121-002416-00: NIBP, Pulse Rate, and TrueTemp.
  • #121-002163-00: NIBP, Pulse Rate, and Exergen Temporal Temp.
  • #121-002160-00: NIBP, Pulse Rate, and Nellcor OxiMax SpO2.
  • #121-002159-00: NIBP, Pulse Rate, and Masimo SpO2.
  • #121-002414-00: NIBP, Pulse Rate, Nellcor OxiMax SpO2, and TrueTemp.
  • #121-002165-00: NIBP, Pulse Rate, Nellcor OxiMax SpO2, and Exergen Temporal Temp.
  • #121-002413-00: NIBP, Pulse Rate, Masimo SpO2, and TrueTemp.
  • #121-002164-00: NIBP, Pulse Rate, Masimo SpO2, and Exergen Temporal Temp.

Frequently asked questions

Is the VS 8 monitor suitable for various clinical settings?

Yes, the Mindray VS 8 Vital Signs Monitor is highly versatile and engineered for efficient use across a range of clinical settings, including inpatient admissions, emergency departments, and outpatient clinics.

Its design is focused on maximizing clinical efficiency and patient safety:

  • Flexible Workflow Integration: Supports rapid vital signs measurement, ideal for routine spot checks, triage, and continuous bedside care.
  • Enhanced Clinical Decision Support: Integrates automatic Early Warning Scores (EWS) compliant with EWS standards. This system helps clinicians react quickly to patient deterioration by reducing the need for manual calculations.
  • Adaptable Configuration: The core monitor supports NIBP and Pulse Rate, with options to integrate advanced parameters like Nellcor or Masimo SpO2, and various temperature options (TrueTemp or Exergen Temporal).
  • Intuitive Interface: The vivid 8-inch high-resolution capacitive touchscreen (1024x768 pixels) simplifies operation using gesture controls.
What essential vital signs parameters are available?

The Mindray VS 8 Monitor offers a comprehensive and flexible range of vital signs measurements, configurable to meet diverse clinical requirements.

Standard Core Measurements (Included in all base units):

  • NIBP (Non-Invasive Blood Pressure)
  • Pulse Rate

Optional Parameters (Configurable):
You can customize the VS 8 by adding the following measurement capabilities:

  • SpO2 (Oxygen Saturation): Available with a choice of either Nellcor OxiMax or Masimo sensor technology.
  • Temperature Measurement: Options include the integrated TrueTemp sensor or the Exergen Temporal Temp (Temporal Scanner).

Additionally, the device supports clinical decision-making with features like automatic calculation of Early Warning Scores (EWS) and a BP averaging function for improved hypertension screening.

Does the monitor provide Early Warning Scores (EWS) support?

Yes, the Mindray VS 8 Vital Signs Monitor includes robust Early Warning Scores (EWS) functionality for enhanced clinical decision support. This feature is designed to be fully compliant with established EWS standards and provides several key benefits:

  • Automatic Scoring: An automatic scoring system is utilized to calculate EWS, which helps eliminate potential manual calculation errors and speeds up the assessment process.
  • Timely Intervention: By providing rapid, automated scores, the monitor helps ensure caregivers can react in a timely manner to signs of patient deterioration.
  • Workflow Integration: Integrating EWS streamlines the clinical workflow, empowering caregivers with high efficiency during vital signs measurements.
Does the monitor assist with hypertension screening?

Yes, the Mindray VS 8 Vital Signs Monitor includes a BP averaging feature specifically designed to assist with hypertension screening, ensuring timely and accurate assessments.

Can I customize the monitor settings for different workflows?

Yes, the Mindray VS 8 features a smartphone-style Startup Wizard that allows caregivers to quickly and efficiently configure clinical settings step-by-step. This functionality is designed to streamline your daily workflow and accommodate different user requirements or patient needs.

Does the VS 8 have a high-resolution touchscreen?

Yes, the Mindray VS 8 features an 8-inch high-resolution capacitive touchscreen designed for optimal clinical efficiency and intuitive operation. This display provides exceptional clarity for patient data.

Key features of the monitor’s display include:

  • Resolution: The screen offers a sharp 1024x768 pixel resolution, ensuring clear viewing of vital signs, graphical trends, and waveforms.
  • Operation: Being a capacitive touchscreen, it supports intuitive gesture-based controls, offering caregivers a simplified, smartphone-style interface for easy navigation.
  • Decision Support: The high clarity helps facilitate timely clinical decision-making, especially when integrated with features like the automatic scoring system and Early Warning Scores (EWS).
Does the compact design support mobility?

Yes, the Mindray VS 8 is designed for efficient mobility, making it an excellent choice for routine spot checks and patient admissions across various clinical settings.

Its design supports convenient movement and placement in busy environments:

  • Compact Footprint: With dimensions of 252 mm x 170 mm x 150 mm, the monitor is space-efficient and fits easily on medical carts or in tight bedside areas.
  • Portable Operation: The unit is equipped with a 5000 mAh rechargeable Lithium-Ion battery, allowing for reliable operation and monitoring even when away from a wall power outlet.
  • Clinical Efficiency: The monitor is optimized for rapid vital signs measurement, which helps clinicians perform high-quality assessments quickly and effectively.
Does the VS 8 use AC and rechargeable battery power?

Yes, the Mindray VS 8 is designed for versatility and supports both continuous operation via AC power and portable use via an internal rechargeable battery.

This dual power capability ensures the monitor can be efficiently used for everything from inpatient admissions to mobile spot checks.

Key Power Specifications:

  • AC Power Input: Supports a universal range of 100 to 240 VAC (± 10%) at 50/60 Hz.
  • Internal Battery: The unit includes a chargeable non-Smart Lithium-Ion battery.
    • Voltage: 10.95 VDC
    • Capacity: 5000 mAh
Does the monitor have comprehensive connectivity options?

Yes, the Mindray VS 8 is designed for efficient workflow integration and seamless data management, offering comprehensive connectivity options for wired networking and peripherals.

The monitor includes the following key interfaces:

  • Wired Network: Features one RJ45 connector (100 BASE-TX) for fast and reliable integration into clinical networks.
  • Peripheral & Data Transfer: Includes two standard USB 2.0 (Type A) connectors for connecting external devices or exporting patient data.
  • Additional Interfaces: The unit also provides utility connections, including an AC Power Input Connector, an External Battery Connector, an Equipotential Grounding Terminal, and a MINI-D RIBBON connector.
Does the VS 8 monitor include a thermal recorder?

Yes, the Mindray VS 8 Vital Signs Monitor features an integrated thermal dot array recorder for convenient documentation of patient data and waveforms. This capability helps enhance clinical efficiency by providing immediate printing of essential monitoring information.

Key specifications for the integrated recorder include:

  • Method: Thermal dot array
  • Paper Speed: 25 mm/s
  • Waveform Channels: 1
