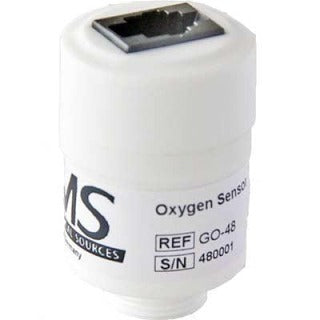

This Maxtec MAX-48 O Cell, manufactured by Cables and Sensors, is compatible with Analytical Industries, Maxtec, and Nuova systems. It is an equivalent replacement for the Maxtec MAX-48 and several other oxygen sensors. Primarily used with O Analyzers, O Monitors. Check below for specific compatibility.

*Note: Can only be shipped within the U.S.

Warranty: 1 Year Shelf Life.

Maxtec MAX-48 O Cell Specifications:

• Compatible with:
  • Analytical Industries: AII2001 Analyzer, AII2002 Analyzer.
• Equivalent to:
  • Analytical Industries: M-11-60.
  • Maxtec: MAX-48.
  • Nuova: E-60.
• G0-480 (Maxtec Equivalent) Specifications:
• Response Time: < 12 seconds.
• Connector Type: AMP phone jack 4P4C.
• R112P18 (Maxtec) Specifications:
  • Output: 3.8 to 4.8 mV.
  • Response Time: ‰¤ 12 seconds at 25 °C.
  • Linearity: ‰¤ 2.0%.

Maxtec MAX-48 O Cell Configurations:

• G0-480: MAX-48 Cell Equivalent manufactured by Cables and Sensors.
• R112P18: Maxtec MAX-48 Cell manufactured by Maxtec.

Maxtec MAX-48 O Cell Literature:

Maxtec KOH Oxygen Sensors Safety Data Sheet

Maxtec MAX-48 Oxygen Cell Specifications Sheet
