Description

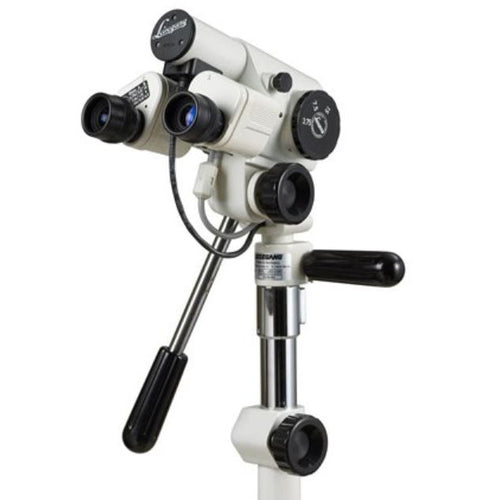

The Leisegang OptiK Model 1 Colposcope is a technically advanced colposcope that provides clear diagnostics for OB/GYN caregivers.
Warranty: 1 Year.
The Leisegang OptiK Model 1 Colposcope features a powerful LED light with 3-step magnification. With a light intensity of 24,000 lux at 300 mm, caregivers can utilize the light on this colposcope for up to 20,000 hours on average. In addition, the LED light sources are energy-efficient and offer 2.5 times more brilliance than halogen models. In spite of the brightness, the colposcope remains cool to the touch.
The colposcope is equipped with a powerful drum magnification, which can magnify at 3 levels: 3.75x, 7.5x, and 15x for up-close diagnosis for patients. It's designed for stereoscopic 3D visualization that doesn't strain the eyes, along with improved stable color spectrum and daylight color temperature. Users can also adjust for ametropia correction using the diopter rings.
This colposcope is available in four configurations, each with a unique base. The tilt base model is flat and not mobile, with a stability that keeps the colposcope stationary and balanced while in use. The upright base provides more mobility, as it's mounted on wheels. The swing base combines the mobility of caster wheels with a height-adjustable stand as well. The last model, the Balance-O-Matic, is a heavier base that is wheeled and possesses a floating, zero-force arm for effortless movement.
Features
Leisegang OptiK Model 1 Colposcope Features
- Brightest LED colposcope available with 2.5x more luminance than halogen.
- Three-step magnification settings, up to 15x.
- Daylight color temperature with stable color spectrum.
- Available in 4 designs (see Configurations).
Specifications
Leisegang OptiK Model 1 Colposcope Specifications
- Weight - Colposcope Head: 7.7 lb (3.5 kg).
- Intensity: 24,000 Lux.
- Color Rendering Index: 92.
- LED Lifespan: 20,000 hours (about 20 years); 10,000 hours minimum.
- Total Irradiance (at max intensity at 1 meter): Less than 10 W/m2.
- Magnification: 3.75x, 7.5x, 15x.
- Colposcope Voltage: ~ 100 - 240 V.
- Frequency: 50 / 60 Hz.
- Power: 45 Watts.
- Power Consumption: 24 VA.
- Fuses: 5 x 20 mm; 2 A.
Configurations
Leisegang OptiK Model 1 Colposcope Configurations
| MPN | Configuration | Description | Shipping Weight | Shipping Dimensions |
|---|---|---|---|---|
| #OPTIK1-00 | Tilt Base | Flat base, stationary with stable tilt positioning | 21 lb (9.5 kg) | 33" x 20" x 11" (84 cm x 51 cm x 28 cm) |
| #OPTIK1-01 | Upright Base | Roller base, for easy movement around an exam room | 23 lb (10.4 kg) | 4" x 19" x 30" (86 cm x 48.3 cm x 76.2 cm) |
| #OPTIK1-02 | Swing Base | Vertical height adjustment, wheeled mobile base, compact | 76 lb (34.5 kg) | 34" x 19" x 30" (86 cm x 48.3 cm x 76.2 cm) |
| #OPTIK1-03 | Balance-O-Matic | Floating, zero-force vertical movement with locking lever, with wheeled mobile base | 84 lb (38 kg) | 34" x 19" x 30" (86 cm x 48.3 cm x 76.2 cm) |
Literature
Leisegang OptiK Model 1 Colposcope Literature
Leisegang Colposcope and Accessories Instructions for Use
