Description

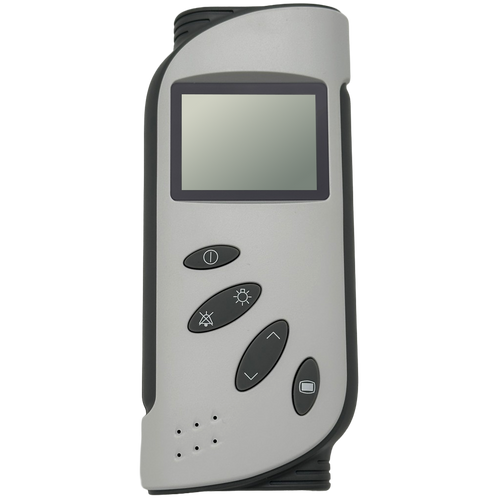

The Edan VE-H100B Veterinary Pulse Oximeter (#EDN-VE-H100B) is a universal tool that's been specially designed for veterinary use. From spot checks to continuous monitoring, all monitoring data can be transferred to a PC for convenient storage, management, review, or printing. The VE-H100B Veterinary is easy-to-use and features both small and large size sensors. It is suitable for dogs, cats, and other animals.
Warranty: 2 Years.
Features
Edan VE-H100B Veterinary Pulse Oximeter Features
- Main Unit with LCD screen and RTC (Real Time Clock) display.
- Backlight switch and automatic power-off function allow you to save power when needed.
- SpO and Pulse Rate Measurement occurs via ear sensor.
- Displays Numeric and Waveform of SpO simultaneously.
- Long battery life enjoy up to 48 working hours with 4 AA or Ni-H rechargeable batteries.
- Powerful data storage capacity.
- Data can be transferred to a PC for storage, review, or printing with optional PC software.
- Capable of up to 100 IDs and 300 hours of data storage for continuous monitoring.
- Review the latest 10 minutes trend graph and SpO and Pulse Rate table in screen.
- Compatible with the Nellcor VETSAT veterinary sensor.
- Boasts audible and visible alarm capabilities.
- Pulse-tone modulation (pitch tone).
Specifications
Edan VE-H100B Veterinary Pulse Oximeter Specifications
Classification
- Type of Protection: Internally power equipment (on battery power).
- EMC Compliance: Class B.
- Degree of Protection: Type BF-Applied Part.
- Mode of Operation: Continuous.
- Enclosure Degree of Ingress Protection: IPX2.
Size and Weight
- Size: 160 (L) x 70 (W) x 37.6 (H) mm.
- Weight: 165 g (without batteries).
Environment
- Temperature:
- Working: 5° C ~ 40° C.
- Storage/Shipping: -20° C ~ 55° C.
- Humidity:
- Working: 25% - 80% (Non-condensing).
- Storage/Shipping: 25% - 93% (Non-condensing).
Display
- h100b: LCD (128*64).
Charger Stand
- Input Voltage: 100 to 240V AC, 50/60 Hz.
- Output Voltage: 8 V DC.
- Output Current: 0.8 A.
- Output Power: 6.4 W.
Battery
- Ni-MH Rechargeable Battery Package:
- Quantity: 1.
- Total Related Voltage: 4.8 V.
- Capacity: 1800 mAh.
- Typical Battery Life: 30 hours.
- Charge Time:
- 2.5 hours to 80%.
- 4 hours to 100%.
- Alkaline Batteries.
- Typical Battery Life: 48 hours (4 x AA batteries).
Measuring Parameter Specification
- Measurement Range:
- SpO: 0 - 100%.
- PR: 30-254 bpm.
- Sp0 Resolution: 1%.
- PR Resolution: 1 bpm.
