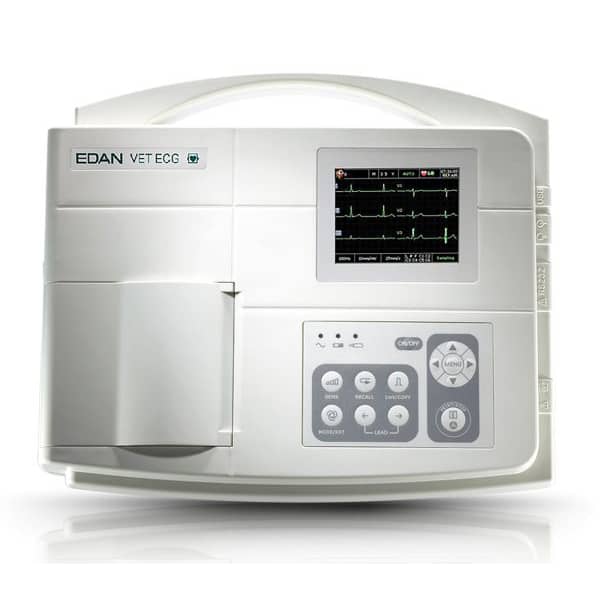

Edan VE-300 Veterinary EKG

Key Features

SKU: EDN-VE-300
Condition: Factory New
Country of Origin: China
Warranty: 2 Years
Weight: 5.5 lb
3-channel display on 3.5 inch LCD color screen
Veterinary five-lead ECG cable and alligator clips
AHA/IEC color coding for lead identification
Simple, one-button operation
Learn more:

Purchasing Restriction: Medical license or prescription required

Contact The Manufacturer

MFR: Edan Ships from Manufacturer
MPN: VE-300
Phone: (888) 850-4597

$1,350.00

Shop with Confidence

Description

The Edan VE-300 Veterinary EKG (#VE-300) includes a built-in thermal printer and a rechargeable lithium battery. It is simple and easy-to-use and works as a single or 3 channel ECG for animals with interpretive analysis included in the form of automatic measurement calculation. It is also extremely portable thanks to a lightweight design and a built-in handle.

Warranty: 2 Years.

Features

Edan VE-300 Veterinary EKG Features

3-channel display on 3.5 inch LCD color screen.
Complete digital design.
LCD display waveforms with configurable parameters.
Lead-Off detection and display.
Complete digital filter to avoid baseline drift, AC, and EMG interference.
Automatic ECG parameter measurement.
Veterinary five-lead ECG cable and alligator clips.
AHA/IEC color coding for lead identification.
The baseline is automatically adjustable.
Portable design with built in handle.
Simple, one-button operation.
Well designed touch panel.
Built-in rechargeable Lithium battery and AC/DC supply.
Built-in thermal printer.
High resolution thermal printing.
Capable of directly printing out with external inkjet printer.
Copy mode prints additional copies of the last Auto ECG.
Select your printing format: 1 lead, 3 lead, rhythm lead, or average template.
Waterproof mambrane keyboard.
Input/Output and RS-232 port and Ethernet network capability.
USB Interface for patient data transferring to flash disk.
Auto/manual operation.

Specifications

Edan VE-300 Veterinary EKG Specifications

Input Circuit: Protection from defibrillation.
Lead: Standard 7 leads.
Acquisition: 7 leads simultaneously.
A/D Resolution: 12 bits.
Measurement Range: ±5mVpp.
Time Constant: ≥3.2s.
Frequency Response: 0.05Hz ~ 150Hz.
Calibration Voltage: 1mV ±3%.
Sensitivity: 2.5, 5, 10, 20 (mm/mV).
Input Impedance: ≥50m Ω.
Input Circuit Current: ≥50nA.
Noise Level: ≥15µVp-p.
Anti Baseline Drift: Automatic.
Patient Leakage Current: ≤10µA (220V~240V).
Patient Auxiliary Current: ≤0.1µA (DC).
Filters:

EMG Filter: 25Hz/35Hz/45Hz/OFF.
DFT Filter: 0.05/0.15/0.25/0.5Hz.
Lowpass Filter: 150Hz/100Hz/75Hz.
AC Filter: 50Hz/60Hz.

CMRR: >100dB.
Recording Modes: Auto/Manual/Rhythm/OFF/USBPRT.
Rhythm Lead: Single lead selectable.
Safety Standard: IEC 1/CF.
Power Supply:

AC: 100V-115V/220V-240V, 50/50Hz.
Built-in rechargeable Li-ion battery.
More than 3 hrs continuous work under battery supply.

Thermal Recorder: Thermal dot array, 8 dots/mm vertical.
Recording Paper: 80mm x 20m.
Recording Speeds: 5mm/s, 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%).
Dimensions: 300mm x 260mm x 75mm.
Weight: 2.5kg (with battery).
Display: 192 x 64 dots LCD.
External Input/Output:

Input: ≥100kΩ; Sensitivity 10mm/V ±5%.
Output: ≤100Ω; Sensitivity 1VmV ±5%.

Communication Interface: Ethernet, RS232, USB.

Literature

Edan VE-300 Veterinary EKG Literature

Edan VE-100 and 300 Veterinary EKG Brochure

Frequently asked questions

Does this EKG feature a clear color screen?

Yes, the Edan VE-300 is equipped with a 3.5-inch LCD color screen (192 x 64 dots resolution) to provide a clear view of diagnostic data.

This display functionality is crucial for clinical use, enabling the simultaneous view of 3 channels of ECG waveforms, alongside automatic measurement calculations and interpretive analysis for quick diagnostic insights.

Does the Edan VE-300 include a high-resolution thermal printer?

Yes, the Edan VE-300 features a built-in, high-resolution thermal recorder for immediate documentation of ECG results. It is designed for simplicity and efficiency.

Key details about the integrated printing functionality:

Type: Thermal dot array (8 dots/mm vertical resolution).
Paper Size: Uses 80mm x 20m recording paper.
Formats: Capable of printing in various formats including 1 lead, 3 lead, rhythm lead, or average template.
External Output: The device also supports direct output to external inkjet printers.

Does the VE-300 include a specialized veterinary ECG cable?

Yes, the Edan VE-300 is specifically tailored for animal diagnostics and includes a specialized cable and attachments.

Included with the unit are the following veterinary-specific components:

A veterinary five-lead ECG cable
Alligator clips for secure placement

This setup utilizes standard AHA/IEC color coding to assist in accurate lead identification and reliable ECG monitoring.

Does the EKG display 3 channels simultaneously?

Yes, the Edan VE-300 is designed for comprehensive visualization. It uses a 3.5-inch LCD color screen capable of displaying 3 channels of ECG waveforms simultaneously.

While the device acquires 7 leads simultaneously for analysis, the visual display can be configured for single or 3-channel viewing.

Is the VE-300 EKG portable and battery-powered?

Yes, the Edan VE-300 EKG offers flexible power options, making it highly suitable for portable use.

It is powered by:

AC Power: Compatible with standard power sources (100V-240V, 50/60Hz).
Built-in Rechargeable Lithium-ion Battery: The unit’s portability is enhanced by this battery, which provides power for over 3 hours of continuous work.

How long can the Edan VE-300 operate on battery power?

The Edan VE-300 is equipped with a built-in rechargeable Lithium-ion battery that provides over 3 hours of continuous operation. This ensures reliable performance for mobile veterinary services and procedures requiring extended use away from an AC outlet.

Does the VE-300 have robust data transfer connectivity?

The VE-300 is equipped with robust connectivity options designed for efficient patient data management and system communication.These interfaces include:* RS-232 port* Ethernet network capability* USB interface for easy data transfer to a flash disk* External Input/Output portsThis comprehensive setup ensures the device can seamlessly integrate into various clinical settings and workflows.

Does the EKG provide automatic interpretive analysis?

Yes, the Edan VE-300 is designed with automatic measurement calculation and interpretive analysis capabilities. This feature assists veterinary professionals by quickly providing calculated parameters and interpretation suggestions based on the acquired ECG waveform. All analysis results are displayed clearly on the 3.5-inch color LCD screen.

Is the ECG acquisition highly accurate?

Yes, the Edan VE-300 is designed for highly accurate and reliable ECG acquisition, utilizing a complete digital design and advanced features:

High Resolution: It features a 12-bit ECG acquisition resolution.
Advanced Digital Filtering: The system includes multiple digital filters to ensure a clean signal, actively rejecting:
- Baseline drift
- AC interference (50Hz/60Hz)
- EMG (muscle movement) interference
Interpretive Analysis: The device provides automatic ECG parameter measurement and interpretive analysis, aiding in reliable clinical assessment.
CMRR: It has a Common Mode Rejection Ratio (CMRR) of >100dB, minimizing external noise influence.

Which digital filters ensure signal clarity?

The Edan VE-300 utilizes a complete digital filtering system to ensure maximum signal clarity and reject interference (such as baseline drift, AC, and EMG noise).The available filters and settings include:* EMG Filter: 25Hz, 35Hz, 45Hz, or OFF* DFT Filter: 0.05Hz, 0.15Hz, 0.25Hz, or 0.5Hz* Lowpass Filter: 150Hz, 100Hz, or 75Hz* AC Filter: 50Hz or 60Hz
