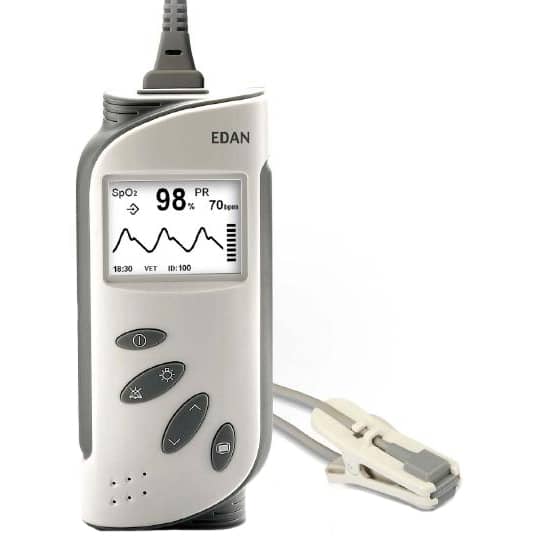

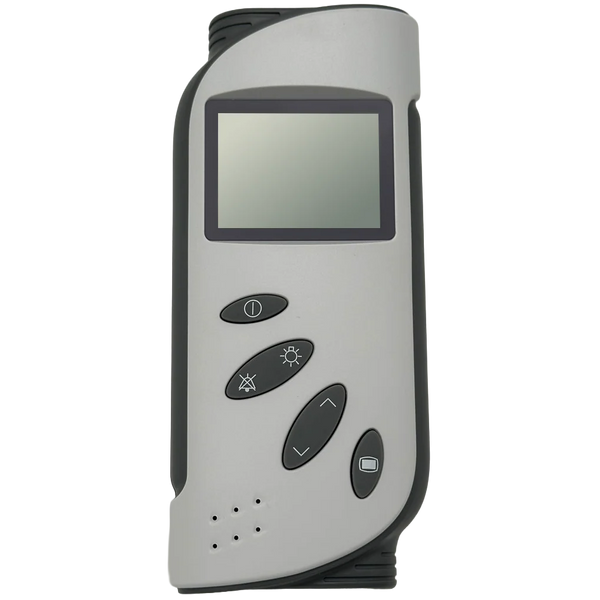

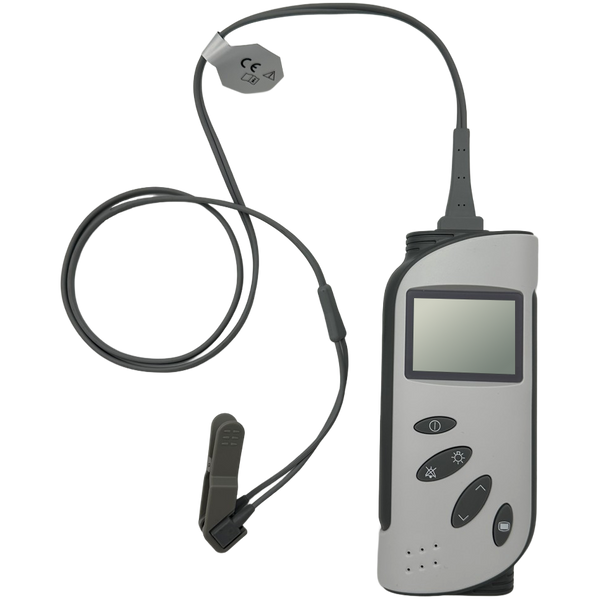

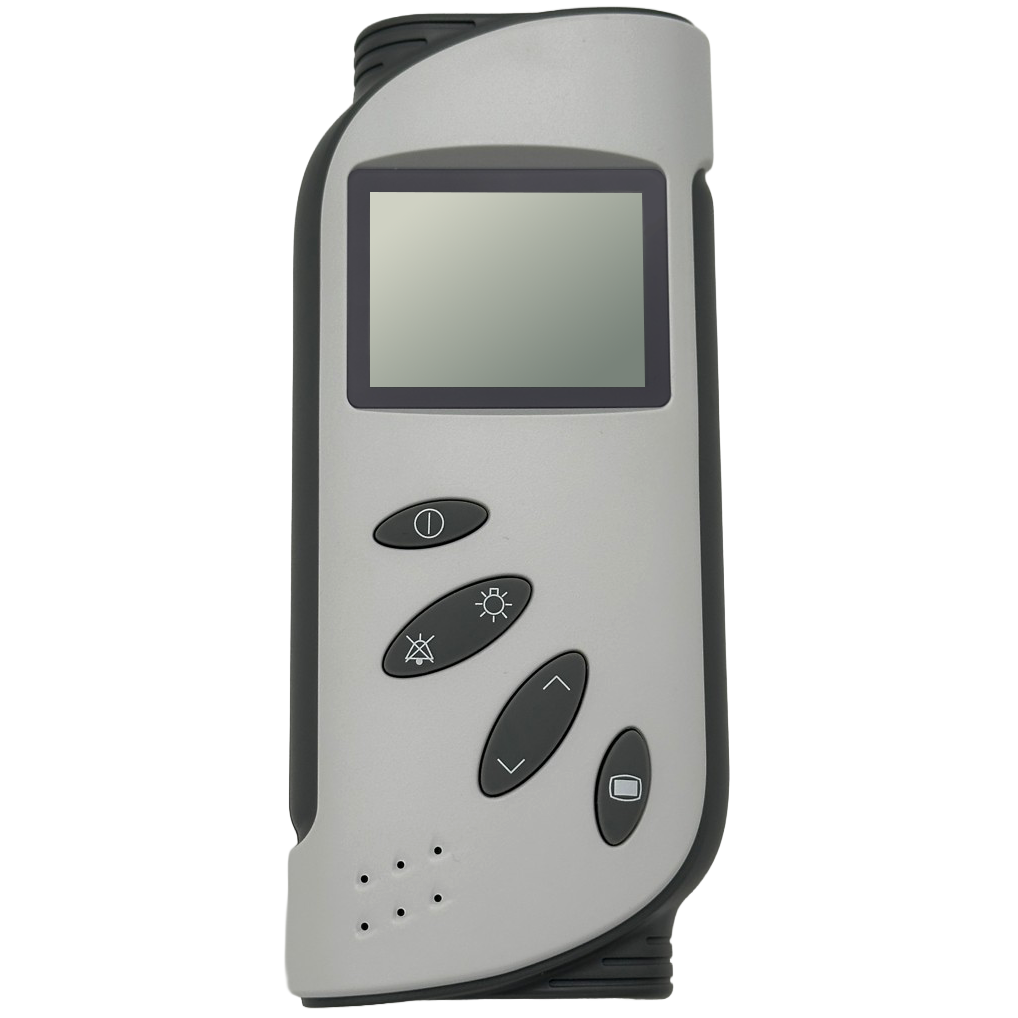

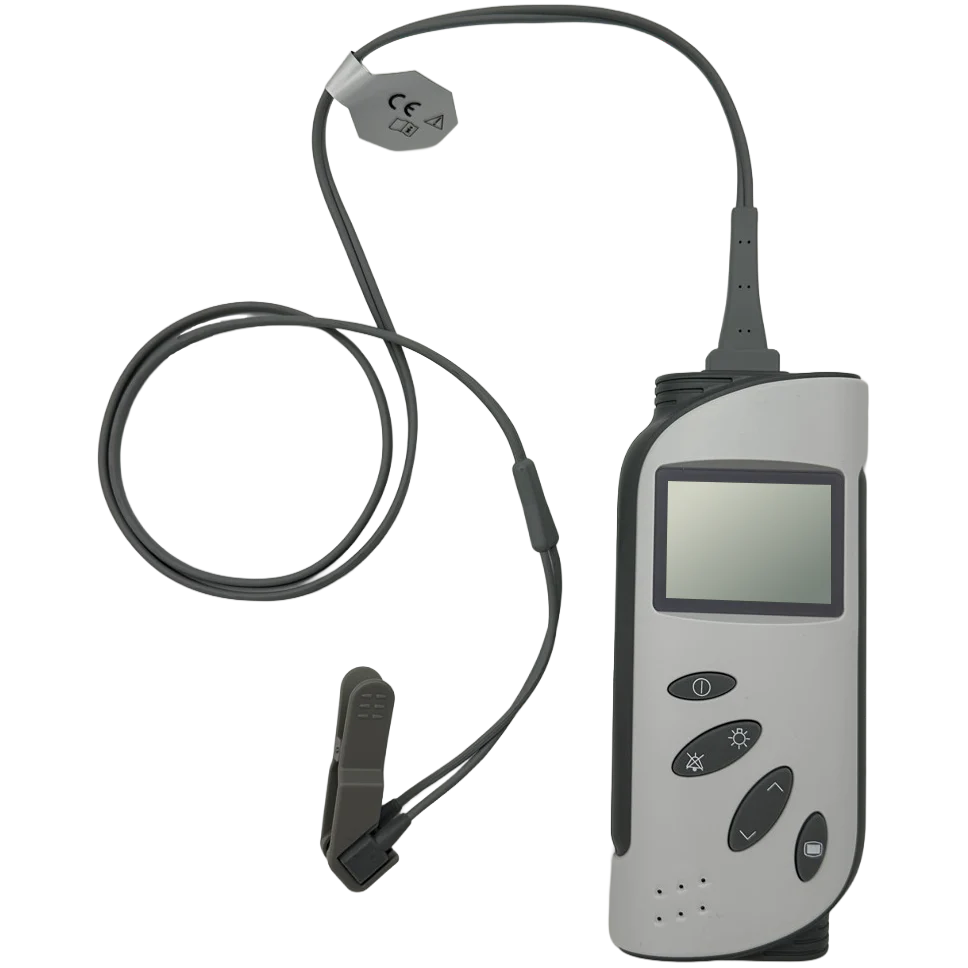

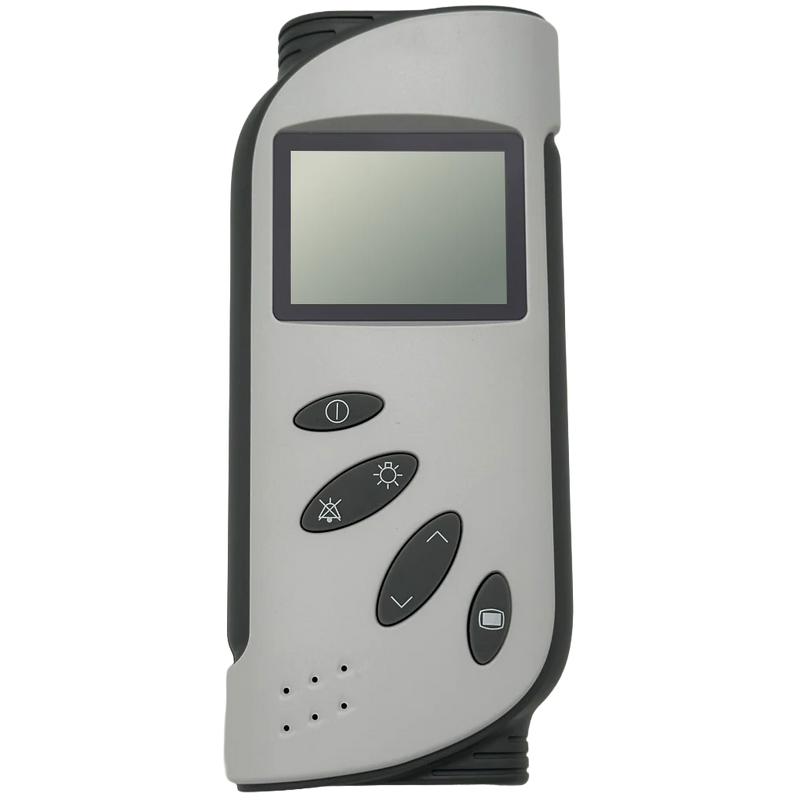

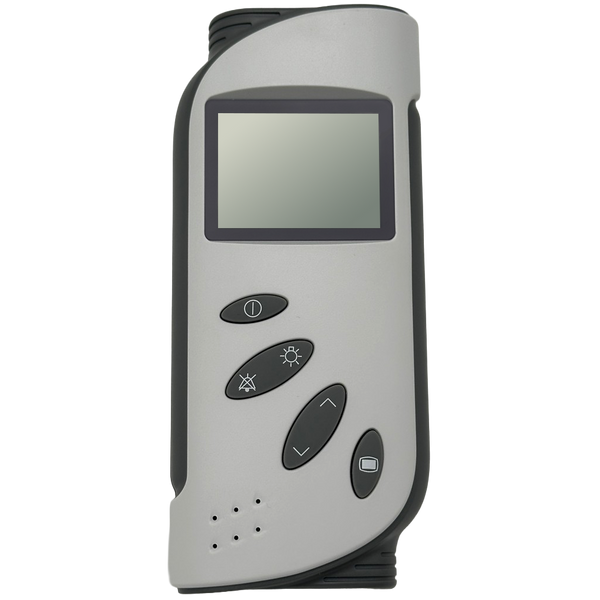

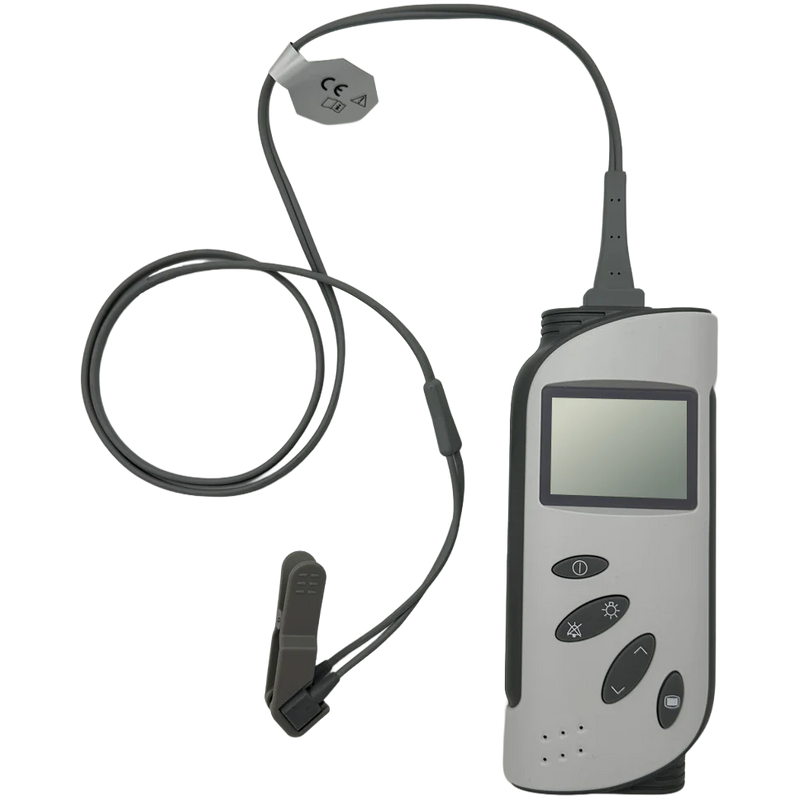

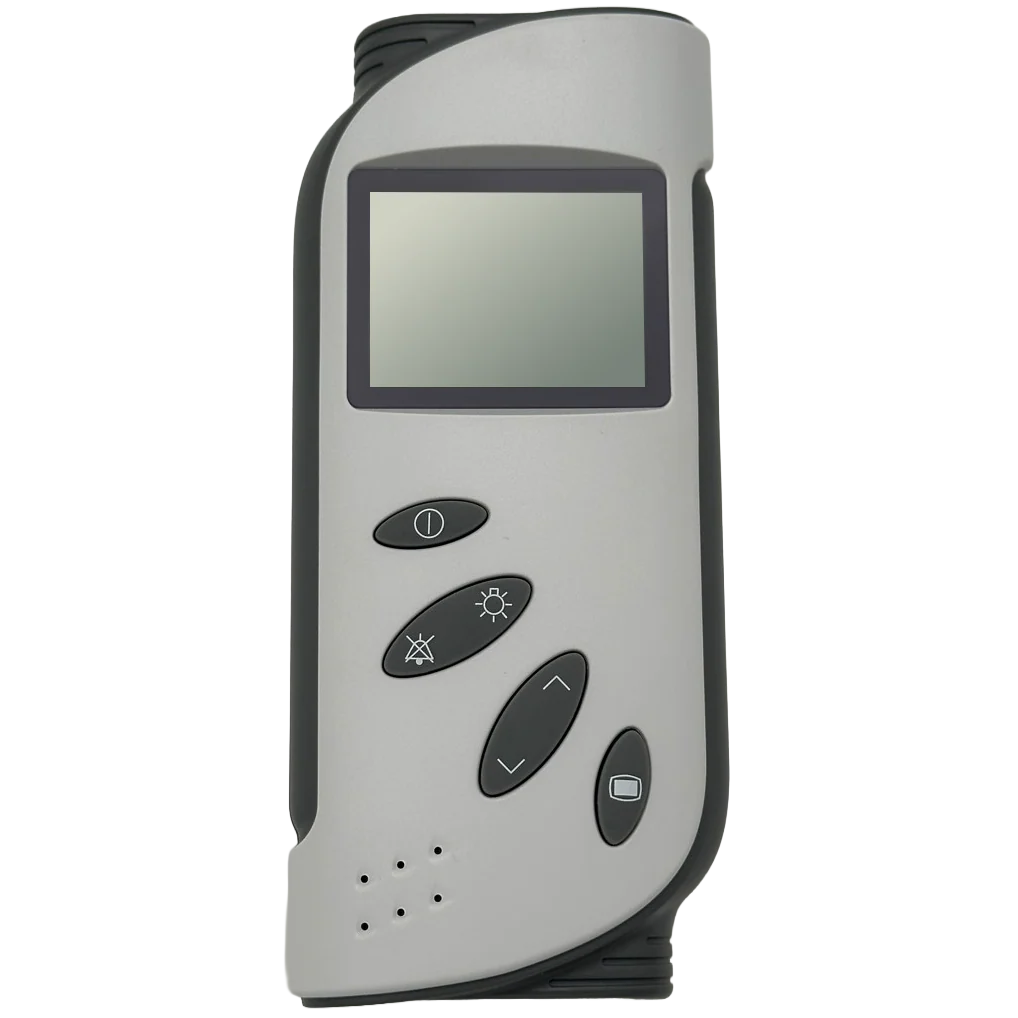

Edan VE-H100B Veterinary Pulse Oximeter

Edan VE-H100B Veterinary Pulse Oximeter Features

• Main Unit with LCD screen and RTC (Real Time Clock) display.
• Backlight switch and automatic power-off function allow you to save power when needed.

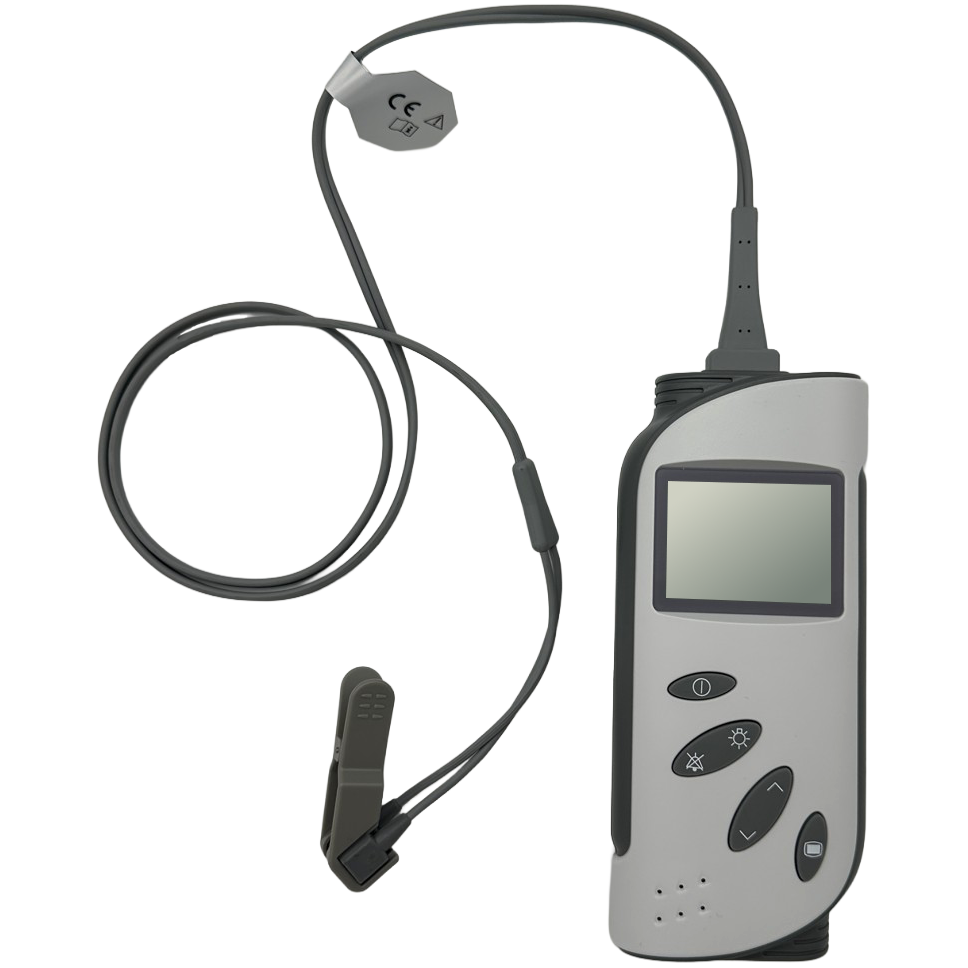

• SpO₂ and Pulse Rate Measurement occurs via ear sensor.
• Displays Numeric and Waveform of SpO₂ simultaneously.
• Long battery life enjoy up to 48 working hours with 4 AA or Ni-H rechargeable batteries.
• Powerful data storage capacity.
• Data can be transferred to a PC for storage, review, or printing with optional PC software.
• Capable of up to 100 IDs and 300 hours of data storage for continuous monitoring.
• Review the latest 10 minutes trend graph and SpO₂ and Pulse Rate table in screen.
• Compatible with the Nellcor VETSAT veterinary sensor.
• Boasts audible and visible alarm capabilities.
• Pulse-tone modulation (pitch tone).

Edan VE-H100B Veterinary Pulse Oximeter Specifications

Classification

• Type of Protection: Internally power equipment (on battery power).
• EMC Compliance: Class B.
• Degree of Protection: Type BF-Applied Part.
• Mode of Operation: Continuous.
• Enclosure Degree of Ingress Protection: IPX2.

Size and Weight

• Size: 160 (L) x 70 (W) x 37.6 (H) mm.
• Weight: 165 g (without batteries).

Environment

• Temperature:
• Working: 5° C ~ 40° C.
• Storage/Shipping: -20° C ~ 55° C.
• Humidity:
• Working: 25% - 80% (Non-condensing).
• Storage/Shipping: 25% - 93% (Non-condensing).

Display

• h100b: LCD (128*64).

Charger Stand

• Input Voltage: 100 to 240V AC, 50/60 Hz.
• Output Voltage: 8 V DC.
• Output Current: 0.8 A.
• Output Power: 6.4 W.

Battery

• Ni-MH Rechargeable Battery Package:
• Quantity: 1.
• Total Related Voltage: 4.8 V.
• Capacity: 1800 mAh.
• Typical Battery Life: 30 hours.
• Charge Time:
• 2.5 hours to 80%.
• 4 hours to 100%.
• Alkaline Batteries.
• Typical Battery Life: 48 hours (4 x AA batteries).

Measuring Parameter Specification

• Measurement Range:
• SpO₂: 0 - 100%.
• PR: 30-254 bpm.
• Sp0₂ Resolution: 1%.
• PR Resolution: 1 bpm.
