Description

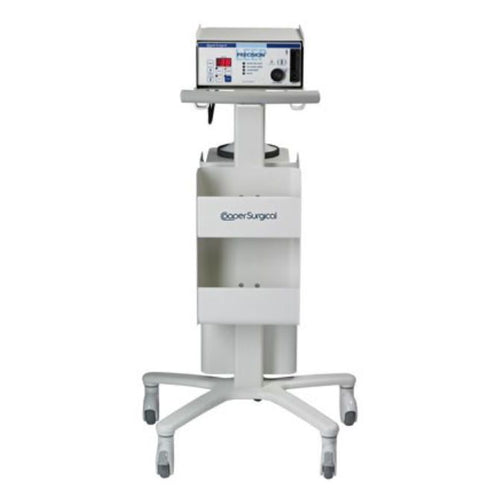

The CooperSurgical LEEP PRECISION Integrated System (#LP-10-120) is a complete system that includes the following: CooperSurgical LEEP PRECISION Generator, LEEP PRECISION Smoke Evacuator, and LEEP PRECISION Cart.
Warranty: 1 Year - Free from Defects in Materials and Workmanship.
The CooperSurgical LEEP PRECISION Integrated System is a complete, ready-to-use electrosurgery unit that provides the power and comfort needed for optimal patient care. The cart allows for full mobility around a busy clinic and has plenty of storage space for accessories. It's equipped with five wheels and cable hooks, which can keep cable wires organized in transit or during procedures.
The smoke evacuator clears odors at an impressive 99.999% efficiency, and included generator also provides reliable power with 3.15 amps. The air flow is highly efficient at capturing smoke plumes at 35 CFM min, and the filter is triple-stage for capturing particulates, odors, and vapors. It's easy to replace the filters and is low-maintenance.
The included generator is user-friendly with a clear LED display, large buttons, and flush faceplate for easy cleaning. It's also equipped with activation options for hand or footswitches (hand or footswitch sold seperately). Users have a choice in wave form for compatibility with different tchniques and electrodes: Cut, Blend, or Coag waves.
This unit as a whole is designed for use in clinics and practices, with convenient wheeled mobility and cable management.
Features
CooperSurgical LEEP PRECISION Integrated System Features
- Complete electrosurgery system with generator, smoke evacuator, and cart included.
- Designed for mobility around a busy clinic or practice.
- Cart contains storage and cable hooks for organization.
- Highly efficient smoke evacuator with that clears 99.999% vapor, odors, and particulate matter.
Specifications
CooperSurgical LEEP PRECISION Integrated System Specifications
CooperSurgical LEEP PRECISION Integrated System:
- Dimensions: 22.44" (W) x 22.07" (D) x 41.22" (H) (57.0 cm x 56.06 cm x 104.70 cm)
- Weight: 88 lb, 1 oz (40.23 kg).
- Shipping Weight (with all system components included): 128 lb (58 kg).
- Input Voltage: 120 VAC, 60 Hz.
- VA Rating: 132 VA.
- Fuses: 10 A, 250 V, T-Type, Slow Blow.
CooperSurgical LEEP PRECISION Generator:
- Dimensions: 9.38" (W) x 11.63" (D) x 4.25" (H) (23.8 cm x 29.5 cm x 10.8 cm).
- Weight: 10 lb, 9 oz (5.25 kg).
- Input Voltage: 120 VAC, 60 Hz.
- Maximum Current: 3.15 amps.
- Power Line Leakage: Less than 50 microamps.
- Fuses (5 x 20 mm): Two T 3.15 A, 250 V.
CooperSurgical LEEP PRECISION Smoke Evacuator:
- Dimensions: 8.5" (W) x 9" (D) x 22" (H) (21.6 cm x 22.9 cm x 55.9 cm).
- Weight: 24 lb (11 kg).
- Air Flow: 35 CFM minimum.
- Filter: Pre-Filter, charcoal filter for odor removal and hydrophobic ULPA filter rated at 99.999% efficiency level for 0.014 micron particles*.
- Input Voltage: 120 VAC, 60 Hz.
- Fuses: 15 amps, 250 V, T-Type.
CooperSurgical LEEP PRECISION Cart:
- Dimensions: 22.44" (W) x 22.07" (D) x 41.22" (H) (57 cm x 56.06 cm x 104.7 cm).
- Weight: 54 lb, 2 oz (24.55 kg).
Literature
CooperSurgical LEEP PRECISION Integrated System Literature
CooperSurgical LEEP PRECISION Generator Operating Manual
CooperSurgical LEEP PRECISION Smoke Evacuator Operating Manual
CooperSurgical LEEP PRECISION Integrated System Office Diagnostics and Procedures
CooperSurgical LEEP PRECISION Integrated System Procedure Preferred Equipment List
CooperSurgical LEEP PRECISION Integrated System Operating Manual
