Description

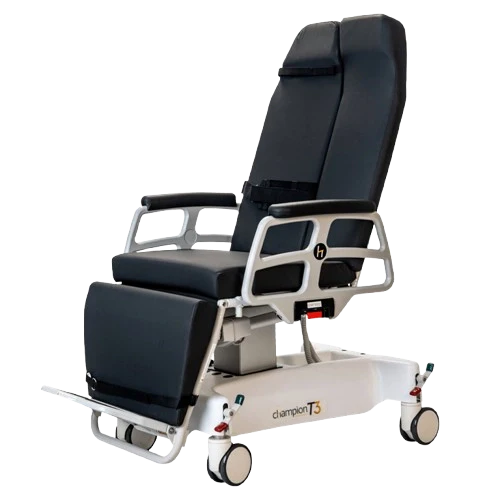

The Champion T3 Procedure Chair features an innovative 90° rotating and split back seat design that allows patients to remain seated for both lateral and A/P imaging. The T3 is ideally suited for barium swallow studies and video fluoroscopy. Powered back, leg, and height adjustments make for effortless conversion from procedure chair to transport device.
Warranty: 2 Years.
Features
Champion T3 Procedure Chair Features
- Radiolucent back.
- Fold-down push bars.
- Locking 90° seat rotation.
- Push-button pendant.
- Removable lithium-ion battery with on-board charging.
- Locking brake.
- Brake and steer caster system.
Specifications
Champion T3 Procedure Chair Specifications
| Specifications | T3-B | T3-FB | T3-SB |
|---|---|---|---|
| Wheelbase (length x width) | 30” x 20” (76.20 cm x 50.80 cm) | 30” x 20” (76.20 cm x 50.80 cm) | 26” x 20” (66.04 cm x 50.80 cm) |
| Weight Capacity | 350 lb / 158.76 kg | 350 lb / 158.76 kg | 350 lb / 158.76 kg |
| Seat Height (low - high) | 25” - 33” (63.50 cm - 83.80 cm) | 25” - 33” (63.50 cm - 83.80 cm) | 25” - 33” (63.50 cm - 83.80 cm) |
| Back Width (no extension - optional extension) | 15” - 25” (38.10 cm - 63.50 cm) | 15” - 25” (38.10 cm - 63.50 cm) | 15” - 25” (38.10 cm - 63.50 cm) |
| Side Rail Height (up, seat pan to rail top - Length) | 10.5” - 22” (26.70 cm - 55.90 cm) | 10.5” - 22” (26.70 cm - 55.90 cm) | 10.5” - 22” (26.70 cm - 55.90 cm) |
| Overall Chair Height (low - high) | 56” - 64” (142.20 cm - 162.60 cm) | 56” - 64” (142.20 cm - 162.60 cm) | 56” - 64” (142.20 cm - 162.60 cm) |
| Seat Width | 24” / 61 cm | 24” / 61 cm | 24” / 61 cm |
| Overall Width (rails up - rails down) | 31” - 28.5” (78.70 cm - 72.30 cm) | 31” - 28.5” (78.70 cm - 72.30 cm) | 31” - 28.5” (78.70 cm - 72.30 cm) |
| Patient Surface Length (standard - with optional manual folding footrest) | 77” (196 cm) | 71” (180 cm) | 77” - 71” (180 cm - 196 cm) |
| Backrest Articulation Range | 0° - 90° | 0° - 90° | 0° - 90° |
| Charging System Input Volts | 120-240 VAC | 120-240 VAC | 120-240 VAC |
| Charging System Current | 350 mA | 350 mA | 350 mA |
| Charging System Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Charging System Max Power | 38.5 W | 38.5 W | 38.5 W |
Configurations
Champion T3 Procedure Chair Configurations
- #T3-B-BLA-FU: with Auto-Extending Footrest and Black Fusion Fabric.
- #T3-B-BLU-FU: with Auto-Extending Footrest and Blue Fusion Fabric.
- #T3-FB-BLA-FU: with Folding Footrest and Black Fusion Fabric.
- #T3-FB-BLU-FU: with Folding Footrest and Blue Fusion Fabric.
- #T3-SB-BLA-FU: with Short Wheelbase and Black Fusion Fabric.
- #T3-SB-BLU-FU: with Short Wheelbase and Blue Fusion Fabric.
Literature
Champion T3 Procedure Chair Literature
Champion Procedure Chair Warranty Info
Champion T3 Procedure Chair Owner's Operating and Maintenance Manual
