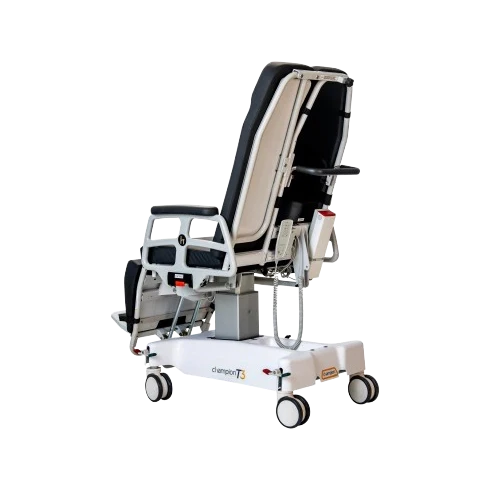

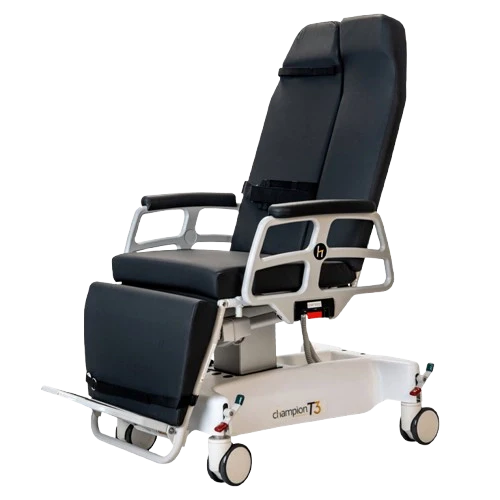

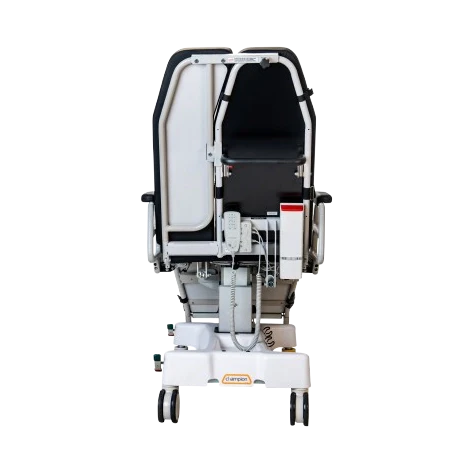

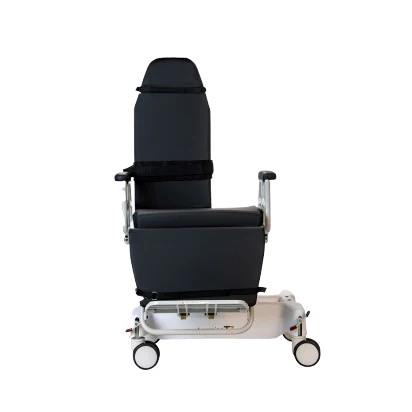

Champion T3 Procedure Chair

Champion T3 Procedure Chair  with Short Wheelbase and Blue Fusion Fabric
Champion T3 Procedure Chair
Champion T3 Procedure Chair
Champion T3 Procedure Chair
Champion T3 Procedure Chair  with Short Wheelbase and Blue Fusion Fabric
Champion T3 Procedure Chair
Champion T3 Procedure Chair
Champion T3 Procedure Chair
Key Features
  • SKU: CHM-T3-B-BLA-FU
  • Country of Origin: USA
  • Weight: 230.0 lb
  • Radiolucent back
  • Locking 90° seat rotation
  • Removable lithium-ion battery with on-board charging
  • Brake and steer caster system

  • Learn more:

Contact The Manufacturer
  • MFR: Champion
    Ships from Manufacturer
  • MPN: T3-B-BLA-FU
$12,850.72

+Shipping

Temporarily out of stock

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Champion T3 Procedure Chair features an innovative 90° rotating and split back seat design that allows patients to remain seated for both lateral and A/P imaging. The T3 is ideally suited for barium swallow studies and video fluoroscopy. Powered back, leg, and height adjustments make for effortless conversion from procedure chair to transport device.

Warranty: 2 Years.

Features

Champion T3 Procedure Chair Features

  • Radiolucent back.
  • Fold-down push bars.
  • Locking 90° seat rotation.
  • Push-button pendant.
  • Removable lithium-ion battery with on-board charging.
  • Locking brake.
  • Brake and steer caster system.

Specifications

Champion T3 Procedure Chair Specifications

Specifications T3-B T3-FB T3-SB
Wheelbase (length x width) 30” x 20” (76.20 cm x 50.80 cm) 30” x 20” (76.20 cm x 50.80 cm) 26” x 20” (66.04 cm x 50.80 cm)
Weight Capacity 350 lb / 158.76 kg 350 lb / 158.76 kg 350 lb / 158.76 kg
Seat Height (low - high) 25” - 33” (63.50 cm - 83.80 cm) 25” - 33” (63.50 cm - 83.80 cm) 25” - 33” (63.50 cm - 83.80 cm)
Back Width (no extension - optional extension) 15” - 25” (38.10 cm - 63.50 cm) 15” - 25” (38.10 cm - 63.50 cm) 15” - 25” (38.10 cm - 63.50 cm)
Side Rail Height (up, seat pan to rail top - Length) 10.5” - 22” (26.70 cm - 55.90 cm) 10.5” - 22” (26.70 cm - 55.90 cm) 10.5” - 22” (26.70 cm - 55.90 cm)
Overall Chair Height (low - high) 56” - 64” (142.20 cm - 162.60 cm) 56” - 64” (142.20 cm - 162.60 cm) 56” - 64” (142.20 cm - 162.60 cm)
Seat Width 24” / 61 cm 24” / 61 cm 24” / 61 cm
Overall Width (rails up - rails down) 31” - 28.5” (78.70 cm - 72.30 cm) 31” - 28.5” (78.70 cm - 72.30 cm) 31” - 28.5” (78.70 cm - 72.30 cm)
Patient Surface Length (standard - with optional manual folding footrest) 77” (196 cm) 71” (180 cm) 77” - 71” (180 cm - 196 cm)
Backrest Articulation Range 0° - 90° 0° - 90° 0° - 90°
Charging System Input Volts 120-240 VAC 120-240 VAC 120-240 VAC
Charging System Current 350 mA 350 mA 350 mA
Charging System Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Charging System Max Power 38.5 W 38.5 W 38.5 W

Configurations

Champion T3 Procedure Chair Configurations

  • #T3-B-BLA-FU: with Auto-Extending Footrest and Black Fusion Fabric.
  • #T3-B-BLU-FU: with Auto-Extending Footrest and Blue Fusion Fabric.
  • #T3-FB-BLA-FU: with Folding Footrest and Black Fusion Fabric.
  • #T3-FB-BLU-FU: with Folding Footrest and Blue Fusion Fabric.
  • #T3-SB-BLA-FU: with Short Wheelbase and Black Fusion Fabric.
  • #T3-SB-BLU-FU: with Short Wheelbase and Blue Fusion Fabric.
