Description

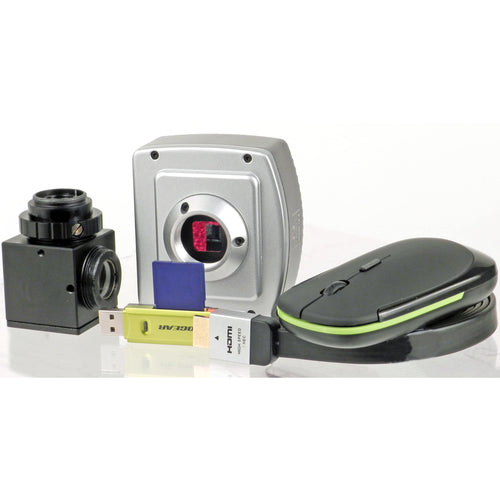

The Bovie Colposcope HD Camera (#CS-8187) package includes:
- HDMI Camera, 1080p resolution.
- AC/DC power supply, rated 12V / 1A output and 6' cord.
- 8 GB SD Card.
- 12' HDMI cord.
- Wireless USB mouse.
- AA battery for the USB mouse.
- SD card reader.
- L-shape C-mount camera adapter with dual thread and diopter adjustment ring.
- Allen key for adjusting camera angles.
Warranty: 1 Year.
The HD Camera is designed for the Colpo-Master I, II, and III. It contains an HDMI Output/Cable and SD storage card, along with a C-mount and SD Card adapter. The camera is independent of the colposcope unit, and can record visuals directly to a separate SD card.
The HD camera is mounted to the back of the colposcope head, but is also removable as needed. The Bovie Colpo-Master series is a high-powered visual aid for OB/GYN procedures. With the addition of this HD camera, users can retain vital exam information for further diagnosis. Once the examination is concluded, users can remove the SD card out and transfer files to a computer.
Features
Bovie Colposcope HD Camera Features
- Capable of both video and image capture.
- Attaches to the back of the colposcope module, via the C-mount.
- Accurate imaging with 30 fps.
Specifications
Bovie Colposcope HD Camera Specifications
- Weight: Less than 1 lb.
- Image Sensor: Full HD ~1/3".
- Effective Pixel: 1920 x 1080.
- Frame Rate: 30 fps.
- Digital Magnification: Up to 10x.
- Brightness Control: Automatic / Manual.
- Color: Automatic / R/G/B adjustable.
- Output: HDMI.
- Storage: 8 GB (via SD card).
- USB: 2.0 for wireless mouse or PC connection.
