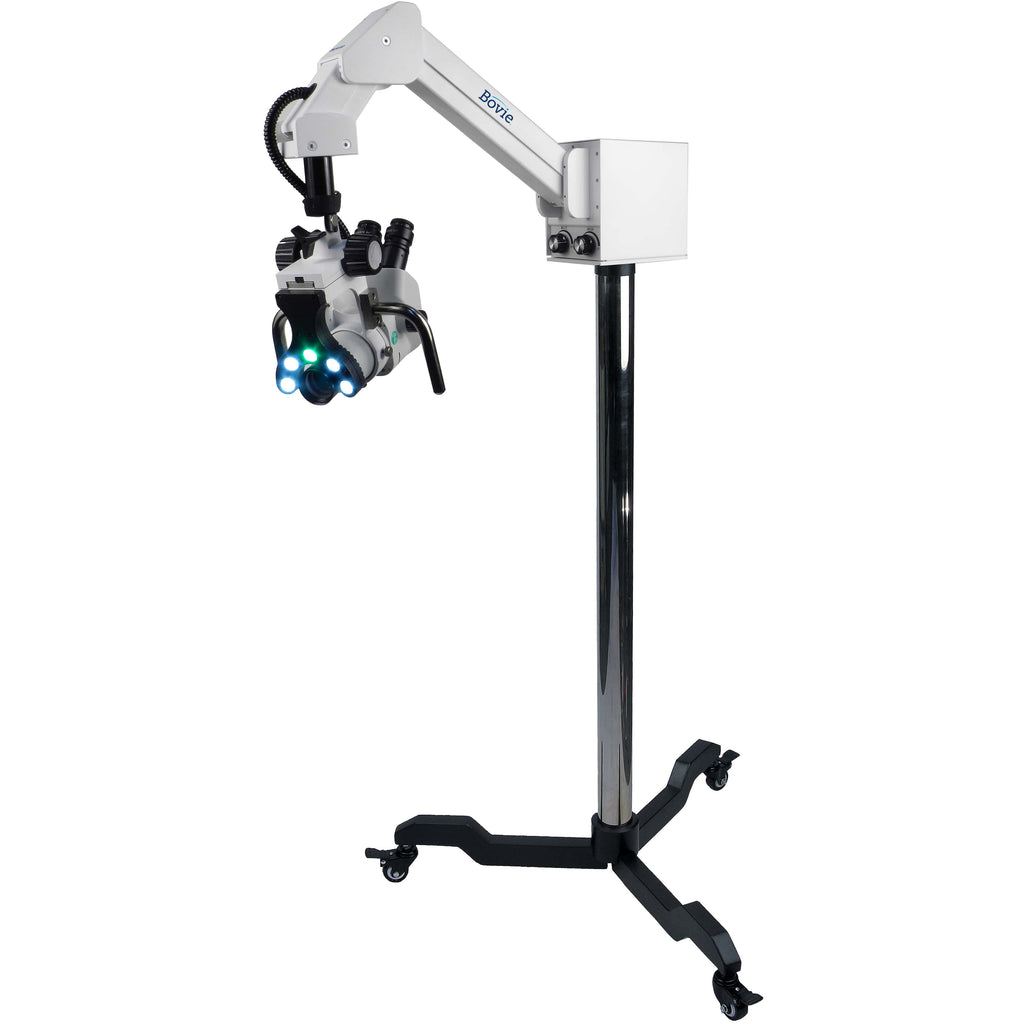

Bovie Colpo-Master I Colposcope

Yes, the Bovie Colpo-Master I Colposcope is shipped factory-new and includes several essential components to ensure immediate setup and proper maintenance. The standard inclusions are:

• Full Dust Cover (P/N #CS-1902): Designed to protect the sophisticated optical system when the unit is not in use.
• Power Cord (P/N #CS-9003): Required for connecting the unit to a 110 Volt, 50/60 Hz power supply.
• User Manual: Provides comprehensive instructions for operation and care.
• Tool Kit (P/N #CS-9004): Contains necessary tools for basic adjustments or assembly.

Yes, the swing-arm suspension system is engineered specifically to maximize workflow and procedural efficiency by addressing critical needs during GYN exams:

• Optimal Access: The articulated design allows for easy positioning and unimpeded access to the vaginal canal.
• Rock-Steady Support: The flex-arm suspension provides rock-steady support, ensuring the optical head remains completely stable for precise, sharp 3-D viewing throughout the entire procedure.
• Maneuverability: The arm allows for easy head positioning and wide angular adjustments, further supported by the choice of a 3-legged or 5-legged base configuration.

Yes, the Bovie Colpo-Master I Colposcope utilizes a superior continuous zoom optical system to provide sharp, 3-D imaging for gynecological exams and procedures. This system is engineered for efficiency and user comfort.

Key specifications of the optical system include:

• Continuous Zoom Range: Allows smooth, precise magnification from 4X up to 27X.
• High Zoom Ratio: Features a wide 1:6.7 ratio (0.67X to 4.5X) for versatile viewing.
• Eyepieces: Includes 20X extra-widefield eyepieces featuring dual diopter adjustments. This allows independent focusing of both lenses, helping to eliminate operator eyestrain during extended use.
• Working Distance: The system maintains a fixed working distance of 298 mm (11.75 inches).

Yes, the Bovie Colpo-Master I features an advanced, super-bright LED illumination system designed for exceptional visual acuity and superior tissue differentiation during examinations. It includes several key features to optimize viewing:

• Optimal Visibility: The system uses four white LEDs and one green LED, along with a built-in green filter to significantly increase the visibility of subtle tissue variances.
• Customizable Intensity: Illumination intensity is easily managed via a variable intensity rheostat, allowing you to precisely control the light output.
• Superior Longevity: The powerful LED illuminator boasts an impressive operational life of 30,000 hours, ensuring long-term reliability and minimal maintenance.

Yes, the Bovie Colpo-Master I is specifically engineered to reduce and eliminate user eyestrain, ensuring viewing comfort even during lengthy procedures. This is achieved through several precise features:

• Dual Diopter Adjustments: This crucial feature allows the practitioner to independently focus both the left and right eyepieces for a sharp, clear image tailored exactly to their vision.
• 20X Extra-Widefield Eyepieces: These high-quality 11.5 mm eyepieces provide a large, comfortable field of view.
• Adjustable Interpupillary Distance: The distance between the eyepieces can be easily adjusted from 55 mm to 75 mm to ensure perfect alignment for any user.

Yes, the Bovie Colpo-Master I Colposcope offers an extensive and versatile magnification range, ensuring detailed visualization for a variety of procedures. It features a superior continuous zoom system designed to produce sharp, 3-D imaging.

Key details regarding the optical system:

• Magnification Range: 4X to 27X.
• Zoom System: Utilizes a continuous zoom system with a 1:6.7 zoom ratio for smooth, fluid adjustments.
• Eyepieces: Includes 20X extra-widefield eyepieces featuring dual diopter adjustments to minimize eyestrain.
• Working Distance: The comfortable working distance is 298 mm (11.75 inches).

Yes, the Bovie Colpo-Master I Colposcope is highly configurable, allowing you to select the components that best fit your clinical needs. All configurations feature the swing-arm suspension stand for rock-steady positioning, high-quality continuous zoom optics (4X to 27X), and advanced LED illumination.

The primary customization options available are:

• Optical Head Type: You can choose between two specialized heads:
  • 45° Binocular Zoom: The standard option, featuring dual diopter adjustments to minimize clinician eyestrain.

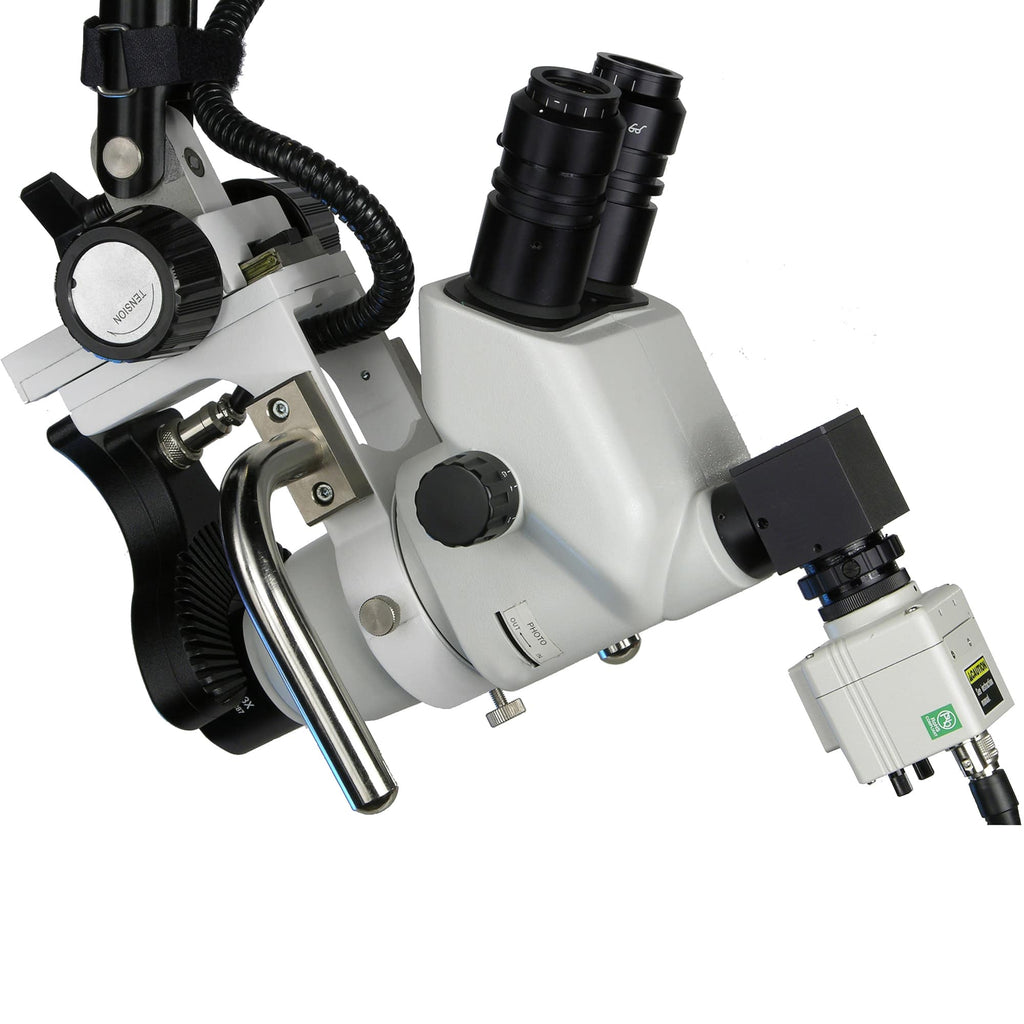

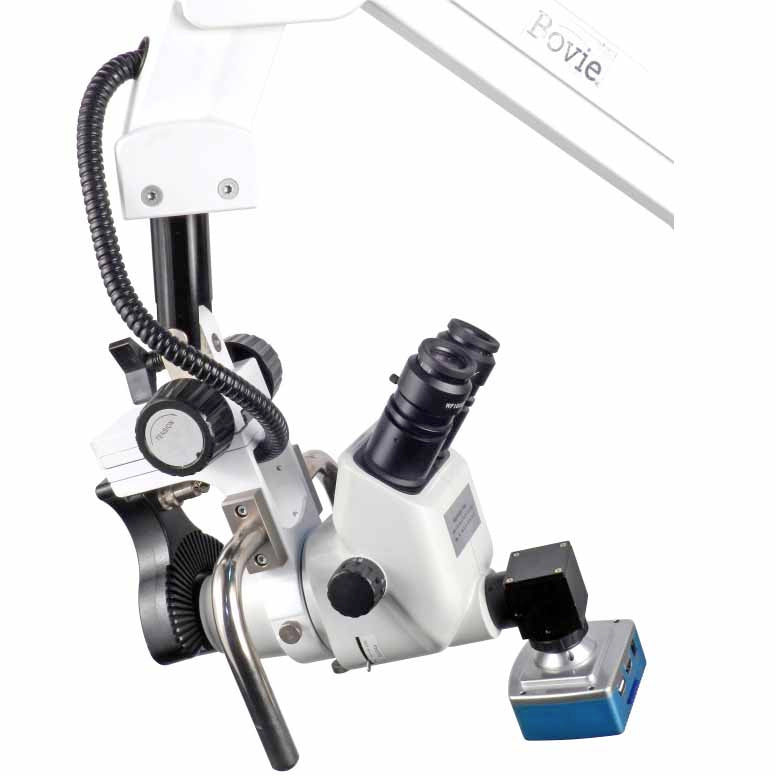

  • Trinocular Zoom (Video-Ready): This head includes a C-mount (0.3X lens) for easy integration with optional video documentation and image capture systems.
• Stand Base Type: The mobile suspension stand is available with two options, both including locking casters and stainless steel handlebars:
  • 3-Leg Base
  • 5-Leg Base (Provides enhanced stability during examinations).

Yes, the Bovie Colpo-Master I Colposcope is engineered for both robust stability and easy mobility within a clinical environment.

Key features ensuring stable and efficient positioning include:

• Swing-Arm Suspension Design: This flex-arm system ensures the head is held rock-steady, which is essential for maintaining sharp focus and enhancing procedural efficiency by allowing optimized access.
• Locking Casters: Standard casters allow for smooth rolling and can be securely locked into place, providing maximum stability during examinations and procedures.
• Stainless Steel Handlebars: These are included standard to aid in precise maneuvering and fine-tuning the colposcope’s position.
• Base Options: The unit is available with either a 3-legged or a 5-legged base, both offering strong, reliable support for the suspension system.

The Bovie Colpo-Master I Colposcope offers a working distance of 298 mm (11.75”), providing ample space between the patient and the instrument for comfortable and efficient procedures.

Yes, the Bovie Colpo-Master I Colposcope uses a highly durable LED illumination system. The LED bulb is rated for an impressive 30,000 hours of bulb life, which minimizes the need for frequent replacement and ensures reliable, long-term performance.
