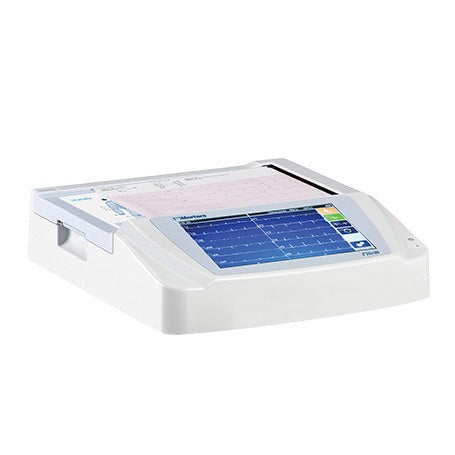

Baxter ELI 280 Resting Electrocardiograph

Baxter ELI 280 Resting Electrocardiograph Features

• Easily integrates with your practice and data management systems for increased efficiency and optimized workflow.
• Widescreen data layout allows for easy menu navigation, fast entry of patient information, and clear verification of proper electrode connections.
• Best 10 feature automatically selects and displays the best 10 seconds of ECG data from memory, reducing the need for repeat ECGs caused by patient movement or other sources of ECG artifact.
• VERITAS Resting ECG Interpretation Algorithm uses gender-specific, adult, and pediatric criteria to provide a silent second option for resting ECG interpretation. It displays hook-up confirmation which includes detection of lead reversals.
• 10.1" high-resolution color touchscreen LCD displays up to 12 leads of ECG data for immediate review and plotting and 13 seconds of high-resolution ECG capture.
• Internal storage for up to 200 ECGs; standard PDF capabilities through LAN or optional WiFi connection.
• Easy bidirectional communication between EHR/HIS systems.
• WAM Wireless Acquisition Module (optional): Equivalent in size and weight to a conventional wired patient cable, the WAM provides freedom of movement for the clinician while acquiring electrocardiograms and during cardiac stress testing. With the Wireless Acquisition Module, the ECG no longer needs to be right at the patient's bedside; this is particularly advantageous in critical situations or when the patient is in isolation.
  • Dedicated, secure communication links the module to a single ECG/cardiac stress testing system.
  • Full diagnostic-quality ECG with a high-fidelity acquisition sampling rate of 40,000 samples per second per channel - a benefit for accurate pacemaker detection.
  • Elimination of the cable reduces a source of artifact, resulting in high-quality ECG tracings.
  • On/off, 12-lead ECG acquisition and rhythm printing at the bedside with the simple press of a button.

Baxter ELI 280 Resting Electrocardiograph Specifications

• Weight: 13.9 lb (6.3 kg) including battery (without paper).
• Dimensions: 15.5" x 17" x 4" (39.4 cm x 43.2 cm x 10.2 cm).
• Instrument Type: Multi-lead electrocardiograph.
• Input Channels: Simultaneous acquisition of all 12 leads.
• Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.
• Waveform Display: Backlit, 10.1" high-resolution color LCD.
• Digital Sampling Rate:
  • Pacemaker Spike Detection: 40,000 samples/second/channel.
  • Recording and Analysis: 1,000 samples/second/channel.
• Paper: Perforated Z-fold thermal paper, A4 or 8.5" x 11" wide, 250 sheets.
• Thermal Printer: Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical.
• Thermal Printer Speeds: 5, 10, 25, or 50 mm/s.
• Power Requirements: Universal AC power supply (110 - 240 VAC at 50/60 Hz) 110 VA; internal rechargeable battery.
• Shipping Weight: 22.9 lb (10.4 kg).
• Shipping Dimensions: 7.8" x 23.6" x 20.4" (19.9 cm x 60 cm x 51.7 cm).

Baxter ELI 280 Resting Electrocardiograph Configurations

• #BUR280-C1X: AM12 Wired Acquisition Module; LAN + USBD.
• #BUR280-81X: AM12 Wired Acquisition Module; LAN + WLAN + USBD.
• #BUR280-W1X: WAM Wireless Acquisition Module; LAN + WLAN + USBD.
