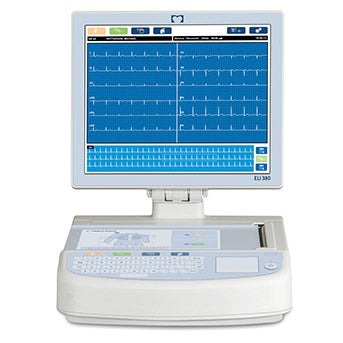

Baxter ELI 380 Resting ECG

Baxter ELI 380 Resting ECG

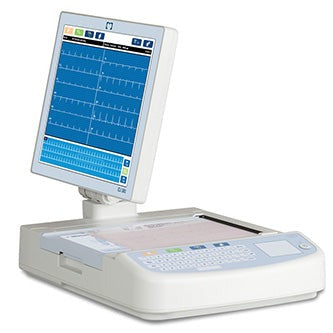

Baxter ELI 380 Resting ECG - Swivel
Baxter ELI 380 Resting ECG
Baxter ELI 380 Resting ECG - Swivel
Key Features
  • SKU: WLA-ELI380-ACX11
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 2 Years
  • Weight: 27.0 lb
  • Simplified workflow decreases exam time and helps prevent manual entry mistakes
  • Glass surfaces on capacitive touch keyboard and ERGO display simplify cleaning and enable more thorough disinfection than electrocardiographs utilizing traditional keyboards
  • SECUR-it feature promotes safeguarding of patient health information (PHI)
  • Follows ACC, AHA, and HRS recommendations for baseline filtering (0.05 Hz)

  • Learn more:

Contact The Manufacturer
  • MFR: Baxter
    Ships from Manufacturer
  • MPN: ELI380-ACX11
  • Phone: (888) 229-0001
$20,124.60 $17,886.77

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Baxter ELI 380 Resting ECG includes the following items:

  • English keyboard.
  • AC or Lithium Ion Battery operation.
  • One starter pack paper (Smart Paper 8.3" x 11").
  • ECG Clip Adapters (Set of 10) and Tab Electrodes (Pouch of 100).
  • Current software.
  • Adult and Pediatric Interpretation.
  • Advanced Connectivity includes WLAN, LAN, USB, DICOM, and Enterprise.
  • North American power cord.

Warranty: 2 Years - Parts and Labor.

The Baxter ELI 380 is designed to make the total ECG experience more efficient - from decreasing the time required to perform the procedure, to increasing the accuracy and security of the data acquired, to the overall patient care experience.

Baxter offers the choice of either a 17" Capacitive Color Touchscreen or a 17" Color LCD Screen. Both screens feature the ability to tilt up to 120°, while the ERGO touchscreen also includes a swivel of as much as 180°, allowing you to remain by the patient's side. The 380's glass keyboard and display enable more thorough disinfection than electrocardiographs utilizing traditional keyboards. Simplified disinfection assists facilities in complying with infection prevention and control programs.

Features

Baxter ELI 380 Resting ECG Features

  • Simplified workflow decreases exam time and helps prevent manual entry mistakes.
  • Chemically strengthened glass capacitive touchscreen is calibration-free, glare-free, and cannot be pierced or punctured.
  • Delivers a unique set of display capabilities to enhance the interaction with patients while in any position, including swivel and tilt functionality.
  • Glass surfaces on capacitive touch keyboard and ERGO display simplify cleaning and enable more thorough disinfection than electrocardiographs utilizing traditional keyboards.
  • Streamlined barcode workflow eliminates steps and reduces manual entry.
  • Follows ACC, AHA, and HRS recommendations for baseline filtering (0.05 Hz).
  • SECUR-it feature promotes safeguarding of patient health information (PHI).
  • Exceeds ACC, AHA, and HRS upper frequency cutoff (300 Hz) for adults and children.
  • Barcode based workflow: a scan of the patient's ID bracelet automatically initiates a search for the patient's ECG order. If no order has been placed, the device searches for the patient's demographics via HLT ADT.

Specifications

Baxter ELI 380 Resting ECG Specifications

  • Instrument Type: Multi-lead resting electrocardiograph.
  • Input Channel: Simultaneous acquisition of all 12 or 15 leads.
  • Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6.
  • 12-Lead Alternate Lead Groups: Up to three additional groups can be labeled using any combination of 6 precordial leads with V1, V2, V3, V4, V5, V6, V7, V8, V9, V3R, V4R, V5R, V6R, and V7R lead labels.
  • 15-Lead Groups: Three lead groups are available and can be labeled using any combination of 3 leads with V1, V2, V3, V4, V5, V6, V7, V8, V9, V3R, V4R, V5R, V6R, and V7R lead labels.
  • Waveform Display:
    • ERGO: Backlit, 17" color touchscreen display, 180° rotation and 120° tilt.
    • Standard: Backlit, 17" Color LCD with 1280 x 1024 resolution, 120° tilt.
  • Digital Sampling Rate:
    • 40,000 samples/s/channel used for pacemaker spike detection.
    • 1,000 samples/s/channel used for recording and analysis.
  • Paper: Smart (210 x 280 mm), perforated Z-fold thermal cued paper with full grid; 250 sheets stored in paper tray.
  • Thermal Printer: Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical.
  • Thermal Printer Speeds: 5, 10, 25, or 50 mm/s.
  • Gain Settings: 5, 10, or 20 mm/mV.
  • Report Print Formats: Standard or Cabrera: 3+1, 3+3, 6, 6+6, or 12-channel.
  • Rhythm Print Formats: 3, 6, 8, or 12 channel with configurable lead groups.
  • Keyboard: Glass keyboard with alphanumeric keys, soft-key menu, dedicated function keys, and touchpad pointing device.
  • Frequency Response: 0.05 to 300 Hz.
  • Filters: High-performance baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz.
  • A/D Conversion: 20 bits (1.17 microvolt LSB).
  • Device Classification: Class I, Type CF defibrillation-proof applied parts.
  • ECG Storage: Internal storage up to 500 ECGs.
  • Information Exchange: Requires ELI Link software version 4.2.0 or greater.
  • SECUR-IT: Requires software version 1.2.0 or greater and ELI Link software version 4.4.0 or greater.
  • AM12M Compatibility: For use with Quickels Electrode Suction Pump Decapus III or greater.
  • Power Requirements: Universal AC power supply (100 - 240 VAC at 50/60 Hz) 110 VA; internal rechargeable lithium-ion battery with support for a second optional battery.
  • Weight: 27 lb (12 kg) including one battery (without paper).
  • Dimensions: 20" (D) x 15.5" (W) x 5.5" (H) (39 cm x 51 cm x 14 cm).
  • Shipping Weight: 35.8 lb (16.25 kg).
  • Shipping Dimensions: 12.3" x 23.8" x 19.9" (31.2 cm x 60.5 cm x 50.6 cm).

Configurations

Baxter ELI 380 Resting ECG Configurations

  • #ELI380-ACX11: Standard Screen, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-ACX21: Standard Screen, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-DCX11: ERGO Screen, WAM Wireless Acquisition Module; AHA 10 wire, 12- lead lead set with banana plugs.
  • #ELI380-DCX21: ERGO Screen, AM12 Wired Acquisition Module; AHA 10 wire, 12- lead lead set with banana plugs.
  • #ELI380-ACS11: Standard Screen, Security, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-ACS21: Standard Screen, Security, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-DCS11: ERGO Screen, Security, WAM Wireless Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-DCS21: ERGO Screen, Security, AM12 Wired Acquisition Module; AHA 10 wire, 12-lead lead set with banana plugs.
  • #ELI380-DCS43: ERGO Screen, Security, AM15E patient cable; AHA 13 wire, 15- lead lead set with banana plugs.

Frequently asked questions

How does the ELI 380 enhance workflow?

The ELI 380 Resting ECG significantly enhances workflow efficiency through several key features:

  • Streamlined Data Entry: It uses barcode scanning to automatically initiate patient ECG orders, reducing manual data entry errors and decreasing exam time.
  • Superior Infection Control: Its glass surfaces on the capacitive touch keyboard and display allow for simplified cleaning and more thorough disinfection.
  • Flexible Display Options: Offers a 17-inch display, with an ERGO touchscreen option that swivels 180° and tilts 120° for optimal user interaction.
  • Robust Connectivity: Includes WLAN, LAN, USB, DICOM, and Enterprise integration for seamless data exchange.
  • Data Security: Features SECUR-it for safeguarding Protected Health Information (PHI).
Does the ELI 380 have hygienic glass surfaces?

Yes, the Baxter ELI 380 features glass surfaces on both its capacitive touch keyboard and display. This design allows for simplified cleaning and more thorough disinfection, significantly enhancing infection control compared to traditional keyboards and screens.

Can the Baxter ELI 380 operate on battery power?

Yes, the Baxter ELI 380 Resting ECG can operate on its internal rechargeable lithium-ion battery. It also comes with an AC power cord for continuous operation.

Is sensitive patient data protected with advanced security?

Yes, the Baxter ELI 380 is equipped with the SECUR-it framework, which is specifically engineered to safeguard sensitive patient health information (PHI). This integrated security feature ensures data integrity and robust protection of patient records during the diagnostic process, allowing for seamless and secure integration into modern medical environments.

How many leads can the ECG acquire?

The Baxter ELI 380 Resting ECG supports the simultaneous acquisition of all 12 or 15 leads across its input channels. This multi-lead capability is designed to ensure comprehensive and efficient data capture.

Does the ERGO configuration improve bedside patient interaction?

Yes, the ERGO configuration is specifically engineered to enhance clinician-patient interaction. It features a specialized display mount that offers: <ul><li>180° Swivel capability: Allows you to turn the screen toward the patient or away from them as needed.</li><li>120° Tilt adjustment: Provides the perfect viewing angle for clinicians while they remain at the patient’s side, facilitating a more comfortable and efficient workflow.</li></ul>

Can this device handle high-fidelity pacemaker detection?

Absolutely. The Baxter ELI 380 is equipped for high-precision diagnostic requirements with a digital sampling rate of 40,000 samples/s/channel specifically for pacemaker detection. This high-fidelity acquisition ensures accurate data capture, essential for critical cardiac analysis.

Does the ELI 380 offer advanced connectivity?

Yes, the Baxter ELI 380 Resting ECG is designed for seamless integration into modern medical environments. It provides a comprehensive range of connectivity features to support efficient data management and patient record integrity, including:

  • Network Connectivity: Built-in WLAN and LAN capabilities for flexible wired and wireless operation.
  • Standard Protocols: Full support for DICOM and Enterprise environments to ensure compatibility with your existing electronic health record systems.
  • Local Transfer: Integrated USB ports for convenient data handling.
  • Data Security: Engineered with the SECUR-it framework to help safeguard sensitive patient health information during data transmission.
Is the printer designed for high-quality diagnostic output?

Yes, the Baxter ELI 380 features a high-precision, computer-controlled dot array thermal printer. It is designed to deliver clear, professional-grade diagnostic reports using standard 210 x 280 mm perforated Z-fold thermal cued paper. This high-fidelity printing capability ensures that the waveforms captured by the system are accurately documented for clinical review.

Is this ECG device made in the USA?

Yes, the Baxter ELI 380 Resting ECG is manufactured in the USA.
