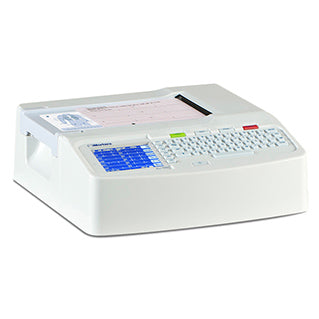

Welch Allyn ELI 150c Resting Electrocardiograph

The Welch Allyn ELI 150c is delivered as a complete package, including all necessary physical supplies and integrated software capabilities to begin high-quality 12-lead ECG acquisition immediately upon setup.

Physical Accessories Included

• Lead Set: AHA 10 wire, 12-lead set with banana plugs.
• Electrodes & Adapters: ECG clip adapters (set of 10) and a pouch of 100 tab electrodes.
• Printing Supplies: One starter pack of Z-fold thermal paper (4.25” x 5.5”).
• Power Supply: US/Canada power cord.

Integrated Capabilities & Software

• Interpretation: Includes the current operating software featuring standard Adult and Pediatric Interpretation capabilities, powered by the accurate VERITAS algorithm.
• Connectivity: Integrated Ethernet LAN and USB connections are included.
• Data Standards: Features DICOM capability for professional integration into EMR, HIS, and PACS systems.

Yes, the Welch Allyn ELI 150c is a highly capable electrocardiograph designed for the simultaneous acquisition of all 12 standard ECG leads.

The leads acquired are:

• Limb Leads: I, II, III, aVR, aVL, aVF
• Precordial Leads: V1, V2, V3, V4, V5, V6

This comprehensive data is recorded at a high digital sampling rate of 1,000 samples/sec/channel for analysis, ensuring high-quality readings.

Yes, the ELI 150c is engineered for robust bidirectional communication, ensuring seamless integration into your existing clinical environment, including EMR, HIS, and PACS. It provides the flexibility required for efficient order retrieval and data transmission.

Connectivity features include:

• Wired: Standard Ethernet LAN and USB support.
• Wireless: Optional Wireless LAN capability when configured with the WAM module.
• Compatibility: Fully supports industry-standard formats for data transfer and archiving, including XML, PDF, UNIPRO, and DICOM.

The Welch Allyn ELI 150c utilizes the industry-recognized VERITAS Interpretation Algorithm.

This robust algorithm is designed to provide a reliable “silent second opinion” to assist clinicians in reading and analyzing 12-lead ECG data.

Key advantages of the VERITAS algorithm include:

• It applies gender-specific criteria for adult analysis.
• It supports comprehensive interpretation for both adult and pediatric patients.

The Welch Allyn ELI 150c Resting Electrocardiograph is equipped with a standard internal storage capacity that allows for the recording and saving of up to 40 ECGs directly on the device. This ensures you can securely capture and store patient data while in the field or during busy clinical sessions before transferring the files to your data management system.

Yes, the Welch Allyn ELI 150c is engineered as an ultra-portable and compact 12-lead ECG system, making it highly effective for mobile diagnostics and diverse clinical environments.

Key features supporting its portability include:

• Compact and Lightweight: The device weighs only 7.2 lb (3.3 kg), including the internal rechargeable battery, for easy transport.
• Power Flexibility: It functions via a universal AC power supply (100–240 VAC) or its internal rechargeable battery, ensuring reliability during patient encounters away from a power outlet.
• Ample Data Storage: The system features standard internal storage for up to 40 ECGs, which can be expanded to 200, allowing for data collection without needing immediate network connectivity.
• Data Integrity: The device automatically captures the cleanest 10 seconds of ECG data during connection to ensure diagnostic accuracy.
• Advanced Connectivity: It supports bidirectional communication through Ethernet LAN, USB, and optional wireless LAN (WAM module), allowing for seamless integration with EMR, HIS, and PACS systems using XML, PDF, and DICOM protocols.

Yes, the ELI 150c utilizes the highly regarded VERITAS Interpretation Algorithm. This sophisticated feature provides a “silent second opinion” for resting ECG interpretation.

It ensures accuracy by applying recognized criteria, including:

• Gender-specific criteria
• Adult and pediatric criteria

The ELI 150c is available with two distinct acquisition modules to suit different clinical needs and settings:

• AM12 Wired Acquisition Module: This configuration provides secure, reliable 12-lead data acquisition via a wired connection. It is available in both Factory New and Certified Refurbished conditions.
• WAM Wireless Acquisition Module: This module enhances workflow flexibility by enabling wireless 12-lead data acquisition. This option is available as Factory New, maximizing portability for dynamic environments.

Yes, the Welch Allyn ELI 150c is specifically engineered for ultra-portability, offering full 12-lead ECG functionality in a compact design suitable for various clinical environments. Its key features contributing to portability include:<ul><li>Lightweight Construction: The device weighs only 7.2 lb (3.3 kg), including the internal rechargeable battery.</li><li>Compact Dimensions: It features a small footprint (11.25” x 11.5” x 3.75”) for easy placement and transport.</li><li>Flexible Power: It operates using a universal AC power supply or the internal rechargeable battery, allowing for seamless, untethered use in any location.</li></ul>

The ELI 150c features a high-quality, backlit 1/4 VGA color LCD with a resolution of 320 x 240.

This display is critical for efficient operation as it enables real-time preview, allowing operators to immediately verify the quality of the ECG tracing upon patient connection. The system offers flexible lead presentation options, including:

• 3 leads
• 4+4 leads
• 6+6 leads
