Description

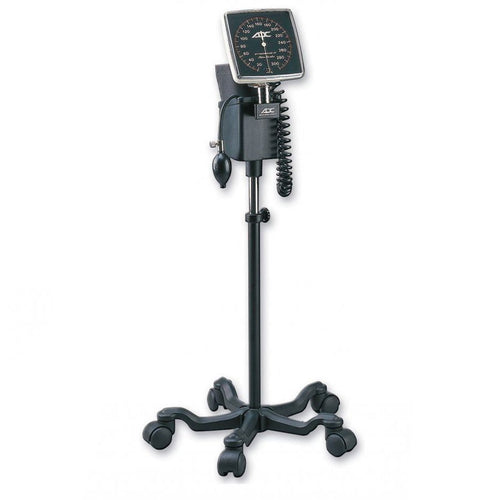

The ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer includes a height adjustable Spider-Leg caster stand, an Adcuff Inflation System which includes the new Adcuff Nylon Cuff, an Adflow bulb and valve, coiled tubing, and comes complete with all necessary hardware and assembly instructions.
Warranty: 3 Years (Manometer carries a lifetime calibration warranty).
Features
ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer Features
- Large, easy-to-read 6" luminescent dial for high visibility in virtually any light condition.
- 300 mm Hg no-pin stop movement withstands the heaviest use.
- Eight foot length (when extended) of coiled tubing not made with natural rubber latex.
- Contemporary Euro-style ivory casing compliments any decor.
- Integral ABS cuff storage compartment.
- Manometer angled back 15 degrees for easy viewing.
- Height adjustable Spider-Leg caster stand with range of 34" to 48" (from bottom of base to top of unit).
- 18" base diameter.
- Meets or exceeds ANSI/AAMI/ISO 81060-1.
- Inspected and packaged in the U.S.A. from foreign components.
- Some assembly required.
Specifications
ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer Specifications
- Sphyg Type: Clock-Mobile.
- Gauge Product Number: #805.
- Gauge Warranty: Lifetime.
- Sphyg Accuracy: +/-3 mm Hg at 50 degrees F (10 degrees C) - 104 degrees F (40 degrees C).
- Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50 degrees F (10 degrees C) and > 104 degrees F (40 degrees C).
- Storage Temp: -4 degrees F (-20 degrees C) - 131 degrees F (55 degrees C).
- Valve Type: ADFLOW.
- Number of Tubes: 2.
- Cuff Type: ADCUFF.
- Inflation Warranty: 3 Years.
Configurations
ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer Configurations
| Cuff Color and Item Number | Cuff Size | Range (in) | Range (cm) |
| Black (#752M-7IBK) or Orange (#752M-7IOR) | Infant | 3.5" - 5.5" | 9 cm - 14 cm |
| Black (#752M-9CBK) or Green (#752M-9CGR) | Child | 5.1" - 7.6" | 13 cm - 19.5 cm |
| Black (#752M-10SABK) or Royal Blue (#752M-10SARB) | Small Adult | 7.4" - 10.6" | 19 cm - 27 cm |
| Black (#752M-11ABK) or Navy (#752M-11AN) | Adult | 9" - 15.7" | 23 cm - 40 cm |
| Black (#752M-12XBK) or Burgundy (#752M-12XBD) | Large Adult | 13.3" - 19.6" | 34 cm - 50 cm |
| Black (#752M-13TBK) or Brown (#752M-13TBR) | Thigh | 15.7" - 25.9" | 40 cm - 66 cm |
Media and Literature
ADC Diagnostix 752M Mobile Aneroid Sphygmomanometer Media and Literature
ADC Diagnostix Aneroid Sphygmomanometers Instructions for Use
ADC Diagnostix Aneroid Sphygmomanometer Accessories Instructions for Use
ADC Diagnostix 750W/752M Sphygmomanometer Schematics and Parts List - Assembly Instructions
