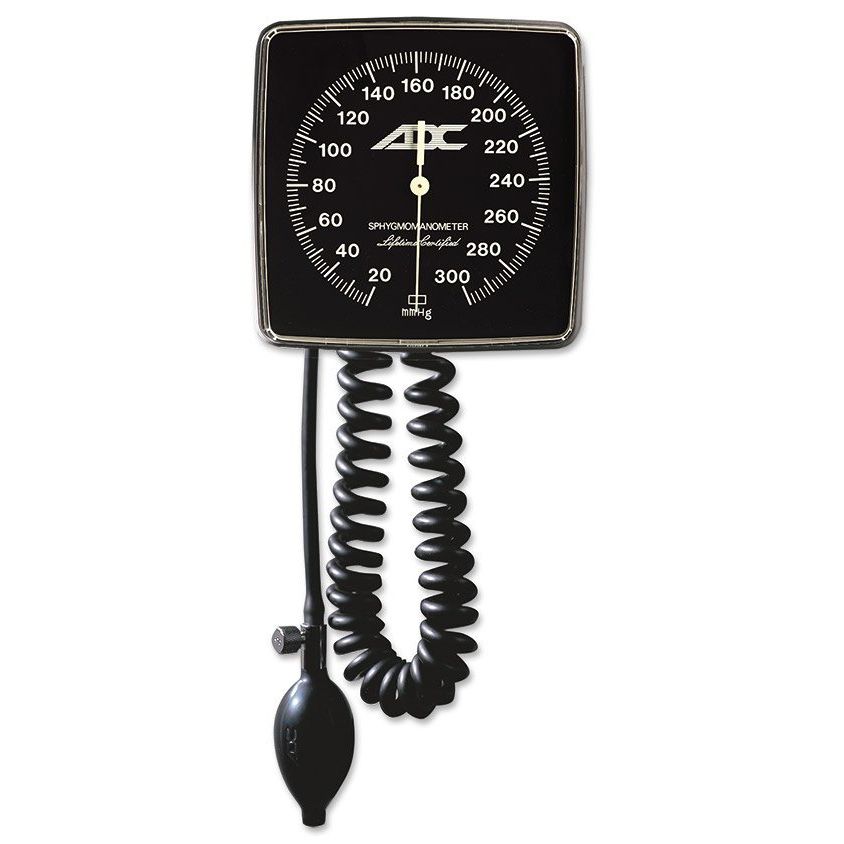

ADC Diagnostix 750W Wall Aneroid Sphygmomanometer

Yes, the ADC Diagnostix 750W is specifically designed for high durability and rigorous use in professional clinical environments.

Key features that ensure its longevity include:

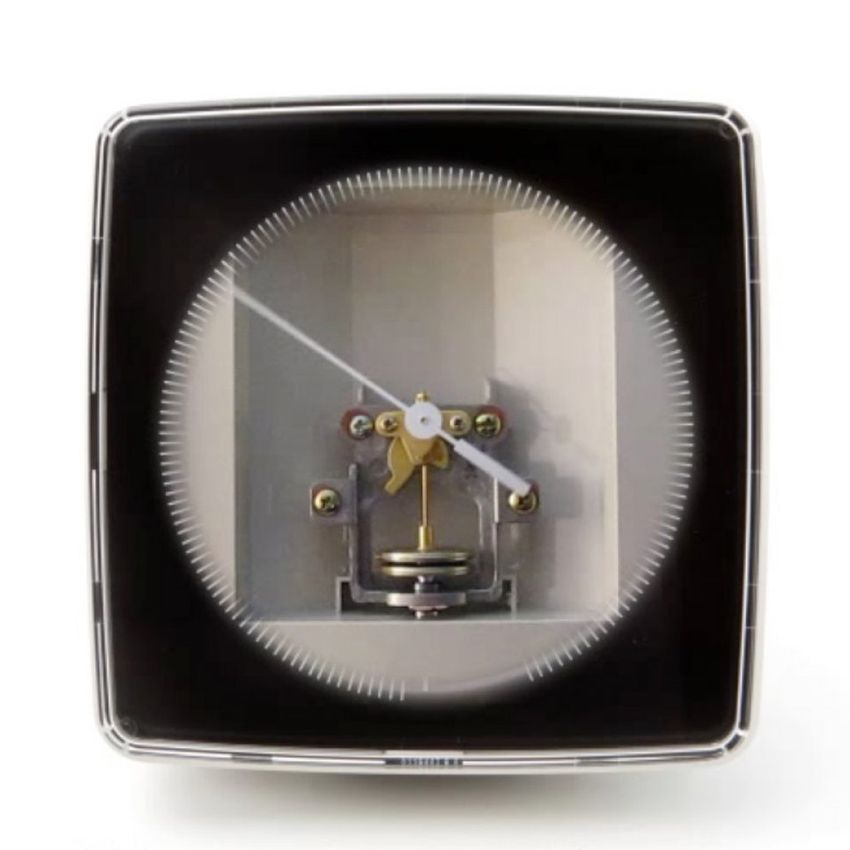

• Robust Movement: It features a heavy-duty 300 mm Hg no-pin stop movement, engineered to withstand frequent and demanding usage without losing accuracy.
• Superior Warranty: The high quality is backed by a lifetime calibration warranty on the manometer unit itself.
• Inflation System Coverage: The Adcuff inflation system components (cuff, bulb, and valve) also carry a substantial 3-year warranty.
• Compliance: The unit meets or exceeds major performance standards (ANSI/AAMI/ISO 81060-1), confirming its reliable construction.

Yes, the ADC Diagnostix 750W is engineered for maximum visibility and reliable performance in clinical environments. This is achieved through several key design features:

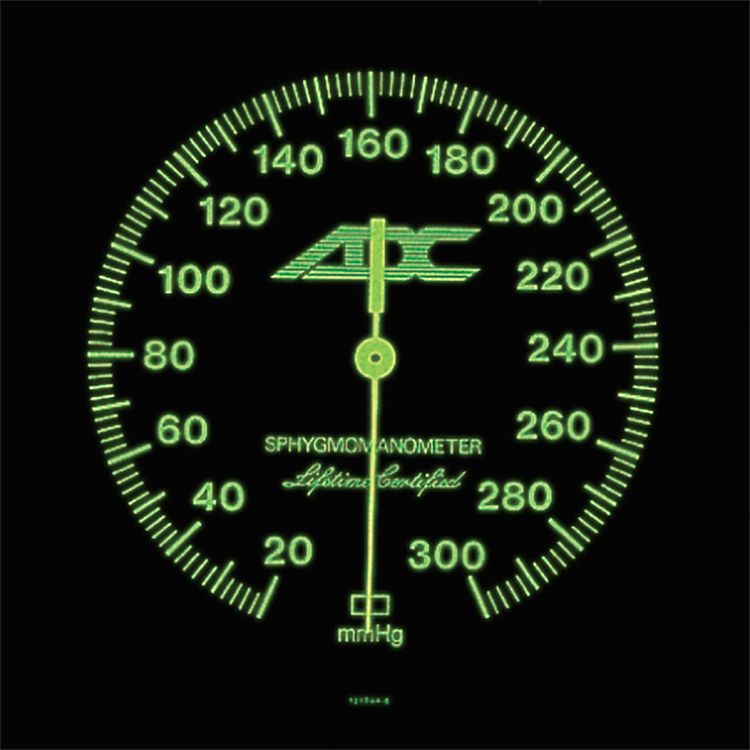

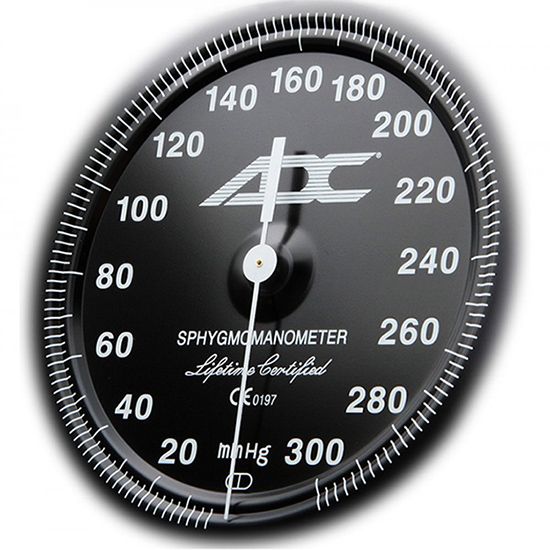

• High-Visibility Dial: It features a large, 6-inch luminescent clock-style dial. This design ensures high contrast and clarity, allowing readings to be easily interpreted even in dim or challenging lighting conditions.
• Flexible Positioning: The included wall bracket allows the manometer unit to swivel 110 degrees, ensuring staff can adjust the display for the optimal viewing angle from anywhere in the room.
• Precision and Durability: The gauge utilizes a heavy-duty 300 mm Hg no-pin stop movement, designed for exceptional durability and long service life. It is guaranteed to meet or exceed ANSI/AAMI/ISO 81060-1 performance standards, providing accurate readings within +/-3 mm Hg (at standard temperatures).

The wall bracket for the Diagnostix 750W is designed to optimize viewing angles in clinical settings. It features a 110-degree swivel range, allowing you to easily reposition the large, 6-inch luminescent dial for maximum visibility. Additionally, the system includes integral cuff storage built right into the bracket for convenient access and organization.

The coiled tubing is designed for high reach and flexibility within a medical environment. When fully extended, the tubing measures eight feet (8 ft) in length. A key feature of the inflation system is that the tubing is not made with natural rubber latex.

Yes, for maximum patient safety, the ADC Diagnostix 750W’s inflation system is designed without natural rubber latex.

This includes all components of the Adcuff Inflation System, ensuring that patient contact points are latex-free:

• The Adcuff Nylon Cuff
• The Adflow bulb and valve
• The 8-foot extended coiled tubing

Yes, the ADC Diagnostix 750W is engineered for professional precision and meets or exceeds the stringent ANSI/AAMI/ISO 81060-1 compliance standard.

Its exceptional accuracy is maintained across varying operating temperatures:

• Standard Temperature (50°F to 104°F / 10°C to 40°C): Accuracy is precisely ±3 mm Hg.
• Extended Temperature (Below 50°F or Above 104°F): Accuracy is ±3 mm Hg or 2%, whichever is greater.

Built for durability, the gauge utilizes a robust 300 mm Hg no-pin stop movement and is backed by a generous lifetime calibration warranty for the manometer unit, ensuring long-term reliability in clinical settings.

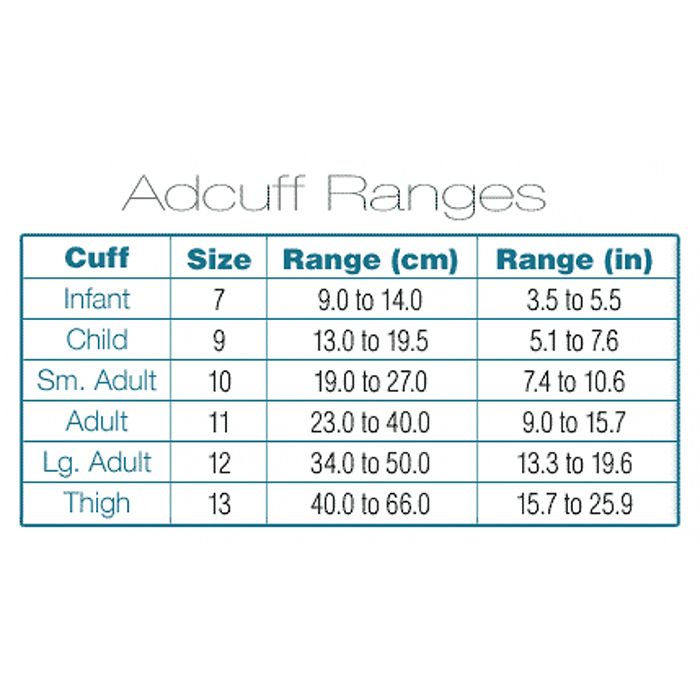

The ADC Diagnostix 750W is offered with a comprehensive range of Adcuff sizes to ensure clinical accuracy across various patient demographics.

The available cuff sizes include:

• Infant
• Child
• Small Adult
• Adult
• Large Adult
• Thigh

This ADC Diagnostix 750W is engineered specifically for fixed-mount, reliable performance in professional clinical environments.

It is best suited for permanent installation in areas requiring easy, high-volume access to blood pressure measurement, such as:

• Examination rooms
• Hospitals and clinics
• Any multi-station facility

Its design enhances convenience and durability in these demanding settings:

• Optimal Visibility: The large, 6-inch luminescent dial is easy to read, even in low light.
• Flexible Positioning: The wall bracket allows the unit to swivel 110 degrees for perfect viewing angles.
• Integrated Storage: Features integral cuff storage to keep the workstation neat and organized.
• Robust Build: The 300 mm Hg no-pin stop movement is built to withstand rigorous daily use, backed by a lifetime calibration warranty on the gauge.

Yes, the ADC Diagnostix 750W is engineered for high performance and durability in clinical settings, meeting strict standards for accuracy and longevity.

• Industry Compliance: The unit meets or exceeds the critical industry standard, ANSI/AAMI/ISO 81060-1, ensuring professional performance.
• Precision: It offers excellent precision with an accuracy of +/-3 mm Hg within the standard operating temperature range.
• Durability: The gauge features a heavy-duty 300 mm Hg no-pin stop movement, designed to prevent damage and maintain calibration despite frequent, heavy clinical use.
• Warranty: The manometer unit is backed by a superior Lifetime Calibration Warranty, while the Adcuff Inflation System components are covered by a 3-year warranty.

Yes, the wall mount is designed for clinical flexibility and convenience. The mounting bracket swivels through 110 degrees of rotation, ensuring the large, 6-inch luminescent dial is easily visible from multiple angles in the examination room.

Additionally, the mounting system includes integral cuff storage, keeping the Adcuff inflation system organized, tidy, and readily accessible.
