Description

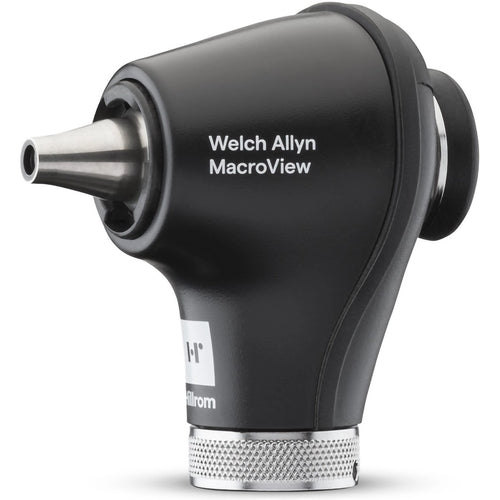

The Welch Allyn MacroView Plus LED Otoscope (#283-3) includes a specula attachment, specula tip, physician eyepiece bumper, insufflation port, and insufflation bulb.
Note: Handle and iExaminer sold separately.
Warranty: 5 Years (Otoscope) / 7 Years (LEDs).
The MacroView Plus LED Otoscope is compatible with existing Welch Allyn 3.5 V power handles. It is intended to be used by clinicians to examine the ear, ear canal, and tympanic membrane under illumination and magnification.
Features
Welch Allyn MacroView Plus LED Otoscope Features
- Focus-Free Design: Extended focal length virtually eliminates the need to focus on the wide-view otoscope.
- Long-lasting SureColor LED illumination with ring fiber optics.
- For use with pediatric and adult patients.
- Digitally capable and can both capture and share images of the ear.
- Backwards compatible with existing Welch Allyn 3.5 V power handles.
- Can be paired with Welch Allyn LumiView clear ear specula for brighter views.
- Sealed pneumatic otoscopy.
Specifications
Welch Allyn MacroView Plus LED Otoscope Specifications
- Weight: 259 g (9.1 oz).
- Dimensions: 7 cm (H) x 4.5 cm (W) x 5.5 cm (D).
- Lamp Life: 60+ years based on typical use.
- Field of View: ~3 times that of a single-lens otoscope, like the standard-style 250-2.
- Magnification: 5x.
- Total Light Output: 5200 lux; 2.5 times brighter than traditional halogen scopes.
- Color Rendering Index (CRI): 95 typical; R9: 90 typical; Color Temperature: 3400 to 4500 K.
Accessories
Welch Allyn MacroView Plus LED Otoscope Accessories
The following accessories are compatible and commonly purchased with the MacroView Plus LED Otoscope:
- #719-3: Li-Ion Plus USB Handle for Desk Charger.
- #11840-IEX-US: iExaminer SmartBracket Assembly.
- Reusable MacroView Ear Specula:
- #24302-U: 2.5 mm.
- #24303-U: 3 mm.
- #24304-U: 4 mm.
- #24305-U: 5 mm.
- #24400-U: Set of 4 (2.5 mm, 3 mm, 4 mm, and 5 mm).
- Welch Allyn SofSeal Specula Tip:
- #24420: Set of 3 (3 mm, 5 mm, 7 mm).
- #24320: Small; 480 / Case.
- #24330: Medium; 480 / Case.
Literature
Welch Allyn MacroView Plus LED Otoscope Literature
Welch Allyn Digital MacroView Otoscope Directions for Use
Welch Allyn MacroView and LED Otoscopes Instructions for Use
