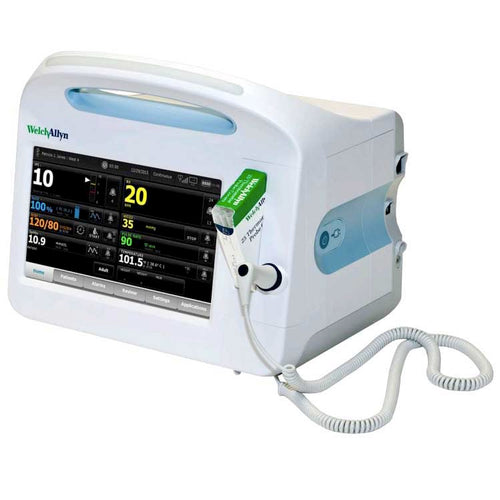

Welch Allyn Connex 6800 Vital Signs Monitor

(0)
$5,671.00
$5,671.00
$6,100.00
Sold out
Quantity must be 1 or more

Description

The Welch Allyn Connex 6800 Vital Signs Monitor includes SureBP Non-invasive Blood Pressure, Pulse Rate, MAP, Custom Scoring, Nurse Call, Four USB Ports for Accessories, Internal 802.11 a/b/g Wireless Radio and power cord.

Warranty: 2 Years.

The Welch Allyn Connex 6800 Vital Signs Monitor is a proven connected vital signs solution for busy general care floors with the option to expand to continuous monitoring for higher-risk patients. Its intuitive, touchscreen monitor features bright, vivid colors for improved workflows and training. Adaptable for most low-acuity healthcare environments and clinical workflow, it can measure pulse oximetry, non-invasive blood pressure, temperature, EtCo, respiration, and more. Multiple profiles support spot check vitals, averaging, intervals, and continuous monitoring workflows.

The 6800 features an internal 802.11a/b/g wireless radio for seamless, wireless communication.

Features

Welch Allyn Connex 6800 Vital Signs Monitor Features

  • SureBP technology can provide BP in only 15 seconds.
  • SureTemp Plus Oral/Axillary or Braun ThermoScan PRO 6000 Tympanic Thermometry.
  • Choice of leading SpO technologies: Masimo and Nellcor.
  • Medtronic Microstream Capnography (EtCo) with Integrated Pulmonary Index (IPI).
  • 3- or 5-Lead ECG with arrhythmia detection.
  • Masimo Acoustic Respiratory Monitoring (RRa).
  • Secure: FIPS-approved encryption of transmitted data and a range of additional security features.
  • Customizable workflow options for documenting patient observations (ie. Is and Os, Pain Scale) and vitals modifiers (ie. BP cuff location).
  • Automated Early Warning Scoring to help clinicians identify and respond to signs of patient deterioration (ie. MEWS, NEWS).
  • Single sign-on options - including integration with Imprivata - available for quick, secure clinician login.
  • Connectivity to Detecto, Health o meter, and SECA scales.
  • Masimo non-invasive continuous monitoring of total hemoglobin(spHb).
  • EarlySense contact-free respiratory monitoring and motion sensing.
  • Connex Central Station integration for centralized monitoring and alarm management.
  • Options for WiFi and Ethernet connectivity to EMR systems.

Specifications

Welch Allyn Connex 6800 Vital Signs Monitor Specifications

  • Physical Dimensions: 10" x 11" x 6" (25.4 cm x 27.9 cm x 15.2 cm).
  • Weight (including battery): 9.5 lb (4.3 kg).
  • Display Area: 8" x 4" (20.3 cm x 10.2 cm).
  • Resolution: 1024 x 600 pixels.
  • Battery: 9-cell battery.
    • Rating: 10.8 V, 6.75 Ah (73 Wh).
    • Composition: Lithium-ion.
    • Charge Time to 80% Capacity: 2 hr 25 min.
    • Charge Time to 100% Capacity: 4 hr.
    • Battery Life: 7.8 hr.
  • NIBP:
    • Systolic Range:
      • Adult: 30 to 260 mmHg (StepBP, SureBP).
      • Pediatric: 30 to 260 mmHg (StepBP, SureBP).
      • Neonate: 20 to 120 mmHg (StepBP).
    • Diastolic Range:
      • Adult: 20 to 220 mmHg (StepBP, SureBP).
      • Pediatric: 20 to 220 mmHg (StepBP, SureBP).
      • Neonate: 10 to 110 mmHg (StepBP).
    • Cuff Inflation Target:
      • Adult: 160 mmHg (StepBP).
      • Pediatric: 120 mmHg (StepBP).
      • Neonate: 90 mmHg (StepBP).
    • Maximum Target Pressure:
      • Adult: 280 mmHg (StepBP, SureBP).
      • Pediatric: 280 mmHg (StepBP, SureBP).
      • Neonate: 130 mmHg (StepBP).
    • Blood Pressure Determination Time (Typical): 15 seconds (SureBP).
    • Blood Pressure Accuracy Meets or Exceeds: ANSI.AAMI SP10:2002 standards.
  • SureTemp Temperature Range: 80 degrees F to 110 degrees F (26.7 degrees C to 43.3 degrees C).
  • Braun Temperature Range: 68 degrees F to 108 degrees F (20 degrees C to 42.2 degrees C).
  • SpO Performance Measurement Range: 1 to 100%.
  • Operating Temperature: 50 degrees F to 104 degrees F (10 degrees C to 40 degrees C).
  • Storage Temperature: -4 degrees F to 122 degrees F (-20 degrees C to 42.2 degrees C).
  • Operating Altitude: -557 to 10,000 feet (-170 m to 3,048 m).
  • Operating Humidity: 15 to 95% non-condensing.
  • Storage Humidity: 15% to 95% non-condensing.
  • Wireless Radio:
    • Wireless Network Interface: IEEE 802.11 a/b/g/n.
    • Frequency: 2.4 GHz – 2.483 GHz (2.4 GHz bands) 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz (5 GHz bands).
    • Authentication/Encryption: Wireless Equivalent Privacy (WEP, RC4 Algorithm); Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2); TKIP, RC4 Algorithm; AES, Rijndael Algorithm; Encryption Key Provisioning; Static (40-bit and 128-bit lengths); PSK; Dynamic; EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC 1; PEAPMSCHAPv2; PEAP-TLS.
    • FIPS 140-2: Yes.
    • Device Data Security Features: FIPS approved encryption algorithms of transmitted data; Server authentication of the device; Digitally signed software images and encryption files.

Configurations

Welch Allyn Connex 6800 Vital Signs Monitor Configurations

  • #68MXTX-B: Masimo SpO, SureTemp Plus Thermometry.
  • #68NXTX-B: Nellcor SpO, SureTemp Plus Thermometry.
  • #68MXTP-B: Masimo SpO, SureTemp Plus Thermometry, Internal Printer.
  • #68NXTP-B: Nellcor SpO, SureTemp Plus Thermometry, Internal Printer.
  • #68MCTX-B: Masimo SpO, Covidien Capnography, SureTemp Plus Thermometry.
  • #68NCTX-B: Nellcor SpO, Covidien Capnography, SureTemp Plus Thermometry.
  • #68NSTX-B: Nellcor SpO, EarlySense Contact-Free Monitoring (Includes One Contact-Free Sensor #105481), SureTemp Plus Thermometry.
  • #68NCTP-B: Nellcor SpO, Covidien Capnography, SureTemp Plus Thermometry, Internal Printer.

Literature

Welch Allyn Connex 6800 Vital Signs Monitor Literature

Welch Allyn Connex Vital Signs Monitor 6000 Series Specifications Sheet

Welch Allyn Connex Vital Signs Monitor 6000 Series Brochure

Welch Allyn Connex Vital Signs Monitor 6000 Series Service Manual
