Description

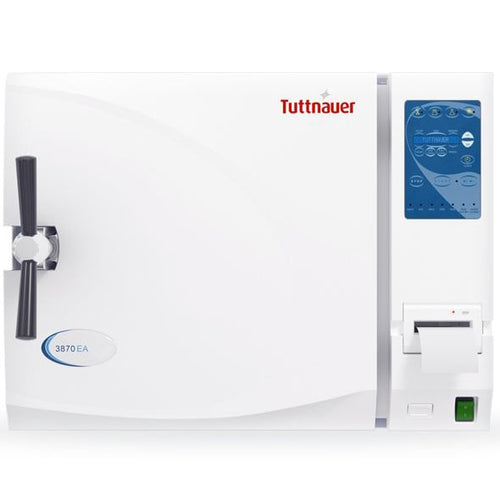

The Tuttnauer 3870EA Large Capacity Automatic Autoclave includes a stand.
All refurbished autoclaves include a power cable and new PM (preventative maintenance) kit installed which includes a new gasket and filters. We also perform a complete calibration to manufacturer specifications, spore test, and complete flush of the system.
Warranty:
- Certified Refurbished: 90 Days - Parts and Labor.
- Factory New: 2 Years - Parts and Labor (Unit) / 10 Years (Chamber).
The 3870EA is Tuttnauer's largest table top autoclave. It is perfect for multi-practitioner practices, clinics, or surgery centers. It's large chamber accommodates longer instruments or a large number of small instruments. It has the capacity for 15 full size IMS cassettes. The steam pressure autoclave can also be used in busy group practices, emergency clinics, nursing homes, veterinary clinics, and small hospitals.
This autoclave is not hardwired, and comes with a standard 230 V Plug. It is recommended that upon purchase of this product, an electrician be the one to install a box booster to handle the voltage fluctuation. No additional plumbing is required.
Features
Tuttnauer 3870EA Large Capacity Automatic Autoclave Features
- Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches.
- A long life electro polished chamber and door are made to last.
- Hepa filter 0.2 μm air filter (replaceable).
- Rapid cycles optimize the availability of ready-to-use sterile instruments.
- Easy-to-use, brighter single touch control system increases productivity.
- Three pre-set sterilization programs:
- Unwrapped instruments.
- Wrapped instruments and porous loads.
- Glassware.
- Program and customize cycle parameters to suit your needs and maximize flexibility.
- Interdependent temperature and pressure monitoring.
- Cycle information recovery in the case of power failure or cycle interruption.
- Insufficient water detector with automatic shut-off.
- Designed to meet the most current sterilization standards.
- Integrated printer for cycle documentation such as date and time, temperature, pressure, and system messages and alerts (optional).
Specifications
Tuttnauer 3870EA Large Capacity Automatic Autoclave Specifications
- Chamber Dimensions: 15" x 30" (384 mm x 760 mm).
- Chamber Volume: 22 gallons (85 L).
- Overall Dimensions: 34.5" (D) x 26" (W) x 20.6" (H) (875 mm x 665 mm x 525 mm).
- Standard Cassettes Capacity: 15 Full.
- Number of Trays: 2.
- Tray Dimensions:
- 26.6" (D) x 11.3" (W) x 1" (H) (675 mm x 286 mm x 25 mm).
- 26.6" (D) x 13.8" (W) x 1" (H) (675 mm x 350 mm x 25 mm).
- Standard Unwrapped Cycle Time (cycle times are approximate and may vary depending on instrument loads):
- Cold: 32 minutes.
- Hot: 23 minutes.
- Voltage: 230 V.
- Frequency: 50/60 Hz.
- Power: 3000 W.
- Current: 13.6 A.
Configurations
Tuttnauer 3870EA Large Capacity Automatic Autoclave Configurations
| Part Number | Condition | Internal Printer |
|---|---|---|
| #MFI-TTN-3870EA | Certified Refurbished | Not Included |
| #MFI-TTN-3870EAP | Certified Refurbished | With Internal Printer* |
| #3870EAP | Factory New | With Internal Printer* |
*Includes one roll of Tuttnauer Chart Recording Paper.
Accessories
Tuttnauer 3870EA Large Capacity Automatic Autoclave Accessories
The following accessories are compatible and commonly purchased with the 3870EA Large Capacity Automatic Autoclave:
- #AR920: Autoclave Pouch Rack - For Large Capacity Autoclaves.
- Chamber Brite Powdered Autoclave Cleaner:
- #CB0010-1: Box (10 Packets).
- #CB0010: Case (120 Packets).
- Clean and Simple Ultrasonic/Enzymatic Tablets:
- #CS0004: Pack of 4.
- #CS0064: Box of 64.
- #CS0144: Box of 144.
- #CS0064-CS: Case of 768.
- #CS0144-CS: Case of 1728.
- Clean and Simple Ultrasonic Cleaner:
- #CSU1: 0.85 gallon.
- #CSU1H: 0.85 gallon with Heater.
- #CSU3: 3.25 gallon.
- #CSU3H: 3.25 gallon with Heater.
- #CSU6: 6.5 gallon.
- #CSU6H: 6.5 gallon with Heater.
- #DS 1000: Steam Distiller Purification System.
Literature
Tuttnauer 3870EA Large Capacity Automatic Autoclave Literature
Tuttnauer Table Top Line Autoclaves and Accessories Catalog
Tuttnauer Operation And Maintenance Manual Electronic Tabletop Autoclaves
