Description

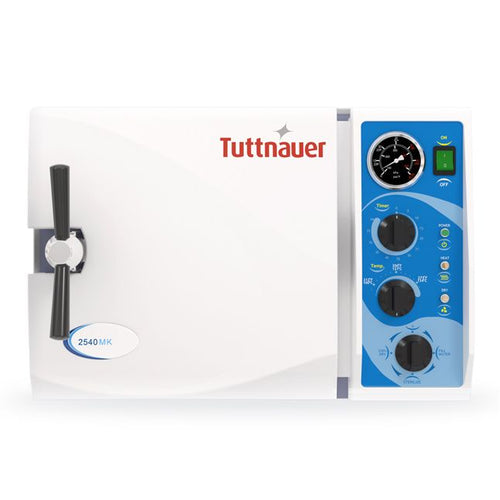

The Tuttnauer 2540MK Kwiklave Autoclave offers all of the dependable features of the Tuttnauer M Series Manual Autoclaves, with the added benefit of reducing the total heat up time. This manual, quick-cycle model is the perfect choice for quick instrument turn-around or a high volume office. Speed and reliability are accomplished without sacrificing load size.
All certified autoclaves include a power cable and new PM (preventative maintenance) kit installed which includes a new gasket and filters. We also perform a complete calibration to manufacturer specifications, spore test, and complete flush of the system.
Warranty:
- Certified Refurbished: 90 Days - Parts and Labor.
- Factory New: 1 Year - Parts and Labor (Autoclave) / 10 Years (Chamber).
The 2540MK's cycle time is approximately nine minutes faster than the Tuttnauer M Series Manual Autoclaves (models 2340M and 2540M).
This steam pressure autoclave is used in a range of settings, including the active surgery center, medical practice, dental office, schools, veterinary facility, doctor's clinic, or tattoo establishment.
The 2540MK requires between 220 V and 235 V for proper operation. When applicable, a buck/boost transformer (0.5 kVA) may be required.
Features
Tuttnauer 2540MK Kwiklave Autoclave Features
- Automatic shut-off at the end of both the sterilization and dry cycles.
- A long life electro polished stainless steel chamber and door made to last.
- Double safety locking device prevents door from opening while chamber is pressurized.
- Drain valve is conveniently located in the front, allowing for quick and easy draining of water reservoir.
- Dual safety thermostat and automatic shut-off to protect against overheating.
- Designed with the operator in mind, the colorful control panel is intuitive and easy to use.
- International certifications.
Specifications
Tuttnauer 2540MK Kwiklave Autoclave Specifications
- Chamber Dimensions: 10" x 19" (254 mm x 475 mm).
- Chamber Volume: 6 gallons (23 L).
- Overall Dimensions: 21.5" (D) x 20" (W) x 14.4" (H) (545 mm x 510 mm x 365 mm).
- Standard Cassette Capacity: 3 full and 3 half.
- Standard Full Size Cassette: 8" x 11".
- Standard Half Size Cassette: 8" x 5.5".
- Tray Dimensions: 16.3" (D) x 6.7" (W) x 0.8" (H) (415 mm x 170 mm x 20 mm).
- Number of Trays: 4.
- Standard Unwrapped Cycle Time (cycle times are approximate and may vary depending on instrument loads):
- Cold: 21 minutes.
- Hot: 11 minutes.
- Voltage: 230 V.
- Frequency: 50/60 Hz.
- Power: 2200 W.
- Current: 10 A.
- Shipping Weight: 85 lb (39 kg).
- Standards: ASME, UL/EN 61010-1, FDA, IS0 13485:2003, ISO 9001:2000.
Conditions
Tuttnauer 2540MK Kwiklave Autoclave Conditions
- #MFI-TTN-2540MK: Certified Refurbished.
- #2540MK: Factory New.
Accessories
Tuttnauer 2540MK Kwiklave Autoclave Accessories
The following accessories are compatible and commonly purchased with the 2540MK Kwiklave Autoclave:
- Chamber Brite Powdered Autoclave Cleaner:
- #CB0010-1: Box (10 Packets).
- #CB0010: Case (120 Packets).
- Clean & Simple Ultrasonic/Enzymatic Tablets:
- #CS0004: Pack of 4.
- #CS0064: Box of 64.
- #CS0144: Box of 144.
- #CS0064-CS: Case of 768.
- #CS0144-CS: Case of 1728.
- Clean & Simple Ultrasonic Cleaner:
- #CSU1: 0.85 gallon.
- #CSU1H: 0.85 gallon with Heater.
- #CSU3: 3.25 gallon.
- #CSU3H: 3.25 gallon with Heater.
- #CSU6: 6.5 gallon.
- #CSU6H: 6.5 gallon with Heater.
- #DS 1000: Steam Distiller Purification System.
