Description

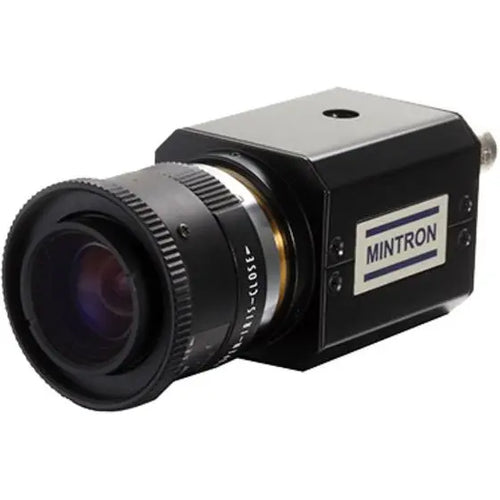

The Mintron HD CCD Camera Package includes the HD CCD Camera (#MHD-33MN2S-P), HD Video Converter (#MHD-61S2SH-P), interconnecting cables, and power supply.
Warranty: 1 Year - Parts and Labor.
This versatile package can be used as an accessory for colposcopes, dental microscopes, ENT microscopes, and more.
Features
Mintron HD CCD Camera Package Features
- HD CCD Camera (HD-SDI/Coax-Link Box Camera):
- 1.3 Megapixels.
- Full HD 720p HD-SDI.
- HDV and SDV video out simultaneously.
- One cable (HD, Ctrl, POC over same cable).
- Day and night IR-cut removable control.
- DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP.
- White Balance - ATW/AWB/R-Y/R-B.
- OSD.
- HD Video Converter (Hi-Vision Link/HD-SDi Converter):
- Supports HD-SDI in and converts to HDMI output.
- Supports HD-SDI loop-out.
- Supports video format 720p @ 25/30/50/60 Hz, 1080p @ 25/30 Hz, and 1080i @ 50/60 Hz.
- Built-in equalizer and re-clock.
- Supports HD Coax-link application, which transmits HD-SDI video and audio, power, and Ctrl (bi-directional) in the same coaxial cable.
Specifications
Mintron HD CCD Camera Package Specifications
- HD CCD Camera:
- Image Sensor: 1/3" MP CMOS WDR Sensor (Rolling shutter).
- Total Pixels: 1384 (H) x 1076 (V) approximately 1.3M pixel.
- Effective Pixels: 1280 (H) x 960 (V).
- Scanning System: Progressive Scan.
- Sync System: Internal.
- Lens: C/CS mount.
- Minimum Illumination: 0.05 Lux @ AGC on/Sens-up off/F1.2.
- Resolution: Over 800 TV-Line.
- ICR-Set Control: Auto, Ext-Control.
- Gain Control: Auto.
- Exposure Control: Auto, Manual, IRIS priority.
- S/N Ratio: 48 dB (TYP) (Gamma, Aperture, AGC OFF).
- Auto Iris: AES / ALC-DC lens.
- Video Format Out: 720p, 50/60 Hz.
- DNR Control: Off/Low/Middle/High.
- Digital Video Out (HDV): HD-SDI.
- Analog Video Out (SDV): CVBS.
- Gamma Correction: 0.45 / 0.5 / 0.55 / 0.6 / 0.65.
- Digital Zoom: 1.0 ~ 8.0.
- Function: Brightness/Sens-up/Level (hlc)/BLC/WDR/XDR/Shading/Privacy/Motion.
- Operation Temperature: -20 to 50 °C.
- Operational Humidity: Within 85% RH.
- Power Supply: DC 12 V ± 1 V / 200 mA.
- HD Video Converter:
- BNC-Inputs:
- Embedded Audio: 2 ch.
- DC Power out supply (power over cable) automatically.
- AUX Linking: Bi-directional communication.
- BNC-Outputs:
- Embedded Audio: 2 ch.
- DC Jack: Power Supply in: 12 V ~ 24 VDC Regulated / 500 mA.
- AUX-Port: RS-232 for camera control.
- BNC-Inputs:
