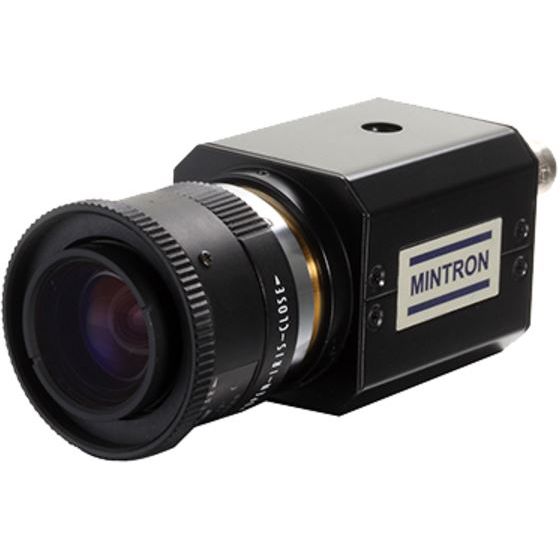

Mintron HD CCD Camera Package

Mintron HD CCD Camera Package

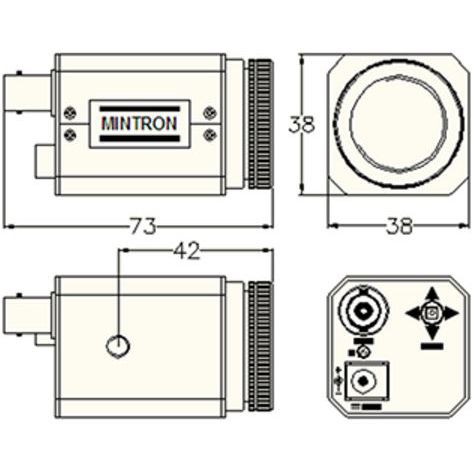

Mintron HD CCD Camera Package - Schematic

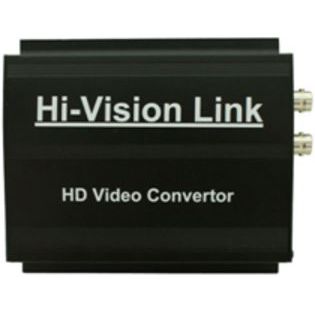

Mintron HD CCD Camera Package - Hi-Vision Link

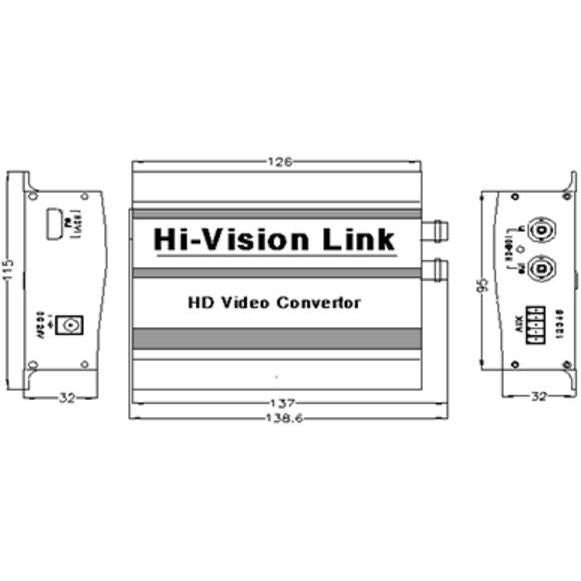

Mintron HD CCD Camera Package - Hi-Vision Link Schematic
Mintron HD CCD Camera Package
Mintron HD CCD Camera Package - Schematic
Mintron HD CCD Camera Package - Hi-Vision Link
Mintron HD CCD Camera Package - Hi-Vision Link Schematic
Key Features
  • SKU: MTN-MHD-PACKAGE
  • Condition: Factory New
  • Country of Origin: Taiwan
  • Warranty: 1 Year
  • Weight: 3.15 lb
  • 1.3 Megapixel HD CCD Camera
  • Full HD 720p HD-SDI
  • HD Video Converter: Supports HD-SDI in and converts to HDMI output
  • Can be used as an accessory for colposcopes, dental microscopes, ENT microscopes, and more

  • Learn more:

Contact The Manufacturer
  • MFR: Mintron Ships from MFI Medical
  • Phone: (800) 633-1558
$895.68

+Free Shipping*

8+ In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Mintron HD CCD Camera Package includes the HD CCD Camera (#MHD-33MN2S-P), HD Video Converter (#MHD-61S2SH-P), interconnecting cables, and power supply.

Warranty: 1 Year - Parts and Labor.

This versatile package can be used as an accessory for colposcopes, dental microscopes, ENT microscopes, and more.

Features

Mintron HD CCD Camera Package Features

  • HD CCD Camera (HD-SDI/Coax-Link Box Camera):
    • 1.3 Megapixels.
    • Full HD 720p HD-SDI.
    • HDV and SDV video out simultaneously.
    • One cable (HD, Ctrl, POC over same cable).
    • Day and night IR-cut removable control.
    • DNR/AGC/3DNR/BLC/HLC/XDR/MIRROR/FLIP.
    • White Balance - ATW/AWB/R-Y/R-B.
    • OSD.
  • HD Video Converter (Hi-Vision Link/HD-SDi Converter):
    • Supports HD-SDI in and converts to HDMI output.
    • Supports HD-SDI loop-out.
    • Supports video format 720p @ 25/30/50/60 Hz, 1080p @ 25/30 Hz, and 1080i @ 50/60 Hz.
    • Built-in equalizer and re-clock.
    • Supports HD Coax-link application, which transmits HD-SDI video and audio, power, and Ctrl (bi-directional) in the same coaxial cable.

Specifications

Mintron HD CCD Camera Package Specifications

  • HD CCD Camera:
    • Image Sensor: 1/3" MP CMOS WDR Sensor (Rolling shutter).
    • Total Pixels: 1384 (H) x 1076 (V) approximately 1.3M pixel.
    • Effective Pixels: 1280 (H) x 960 (V).
    • Scanning System: Progressive Scan.
    • Sync System: Internal.
    • Lens: C/CS mount.
    • Minimum Illumination: 0.05 Lux @ AGC on/Sens-up off/F1.2.
    • Resolution: Over 800 TV-Line.
    • ICR-Set Control: Auto, Ext-Control.
    • Gain Control: Auto.
    • Exposure Control: Auto, Manual, IRIS priority.
    • S/N Ratio: 48 dB (TYP) (Gamma, Aperture, AGC OFF).
    • Auto Iris: AES / ALC-DC lens.
    • Video Format Out: 720p, 50/60 Hz.
    • DNR Control: Off/Low/Middle/High.
    • Digital Video Out (HDV): HD-SDI.
    • Analog Video Out (SDV): CVBS.
    • Gamma Correction: 0.45 / 0.5 / 0.55 / 0.6 / 0.65.
    • Digital Zoom: 1.0 ~ 8.0.
    • Function: Brightness/Sens-up/Level (hlc)/BLC/WDR/XDR/Shading/Privacy/Motion.
    • Operation Temperature: -20 to 50 °C.
    • Operational Humidity: Within 85% RH.
    • Power Supply: DC 12 V ± 1 V / 200 mA.
  • HD Video Converter:
    • BNC-Inputs:
      • Embedded Audio: 2 ch.
      • DC Power out supply (power over cable) automatically.
      • AUX Linking: Bi-directional communication.
    • BNC-Outputs:
      • Embedded Audio: 2 ch.
    • DC Jack: Power Supply in: 12 V ~ 24 VDC Regulated / 500 mA.
    • AUX-Port: RS-232 for camera control.

Frequently asked questions

What video outputs are supported?

The Mintron HD CCD Camera Package provides highly versatile video output options:

  1. Simultaneous Dual Output (Direct from Camera): The camera unit provides both High-Definition and Standard-Definition outputs simultaneously:
    • HDV (High Definition Video): Full HD 720p resolution via HD-SDI (High-Definition Serial Digital Interface).
    • SDV (Standard Definition Video): Simultaneously provided as a standard CVBS output.
  2. HDMI Output (Via Converter): The included HD Video Converter takes the HD-SDI input and provides a clean HDMI output, supporting formats such as 720p, 1080p (25/30 Hz), and 1080i (50/60 Hz).

Additionally, the system features Coax-Link capability, which allows HD-SDI video, power, audio, and bi-directional control signals to be transmitted efficiently over a single coaxial cable.

Does the Mintron HD CCD Camera Package include everything needed for setup?

Yes, the package includes the HD CCD Camera, HD Video Converter, interconnecting cables, and a power supply.

What video output does the HD Video Converter provide?

The HD Video Converter supports HD-SDI input and converts it to HDMI output, ensuring compatibility with modern displays.

Which types of microscopes is the Mintron HD CCD Camera Package compatible with?

The Mintron HD CCD Camera Package is compatible with a wide range of microscopes, including colposcopes, dental microscopes, and ENT microscopes.

What type of image sensor does the camera use?

The camera’s image sensor is a 1/3” MP CMOS WDR Sensor (Rolling shutter).

What is the minimum illumination required for the camera to operate effectively?

The minimum illumination required for the camera is 0.05 Lux @ AGC on/Sens-up off/F1.2.

What are the specific model numbers of the camera and video converter included in the package?

The package includes the HD CCD Camera (#MHD-33MN2S-P) and the HD Video Converter (#MHD-61S2SH-P).

Does this camera deliver Full HD video?

Yes, the Mintron camera package is designed for professional high-definition imaging:

  • Full HD Capability: The camera provides high-quality video output at Full HD 720p resolution via HD-SDI. The included HD Video Converter further supports multiple HD formats, including 1080i/60 Hz, for monitor compatibility.
  • High Performance Sensor: It utilizes a 1.3 Megapixel 1/3” MP CMOS WDR Sensor with 1280 (H) x 960 (V) effective pixels, achieving a horizontal resolution of over 800 TV-Line.
  • Image Optimization: The camera includes built-in advanced image controls like 3D Digital Noise Reduction (3DNR) and Wide Dynamic Range (WDR/XDR) to maintain optimal image clarity under varying light conditions.
