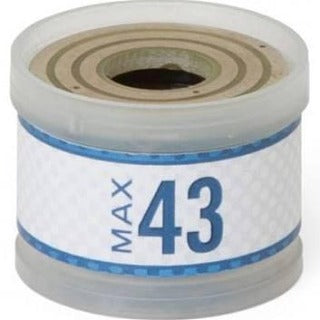

This Maxtec MAX-43 O Cell is compatible with Datex Ohmeda Giraffe, Maxtec, and Nuova systems. It is an equivalent replacement for the Maxtec MAX-43 and several other oxygen sensors (see below).

*Note: Can only be shipped within the U.S.

Warranty: 1 Year Shelf Life.

Maxtec MAX-43 O Cell Specifications:

• Equivalent to:
  • Maxtec: MAX-43 R109P07.
  • Mercury Medical: 10-103-16.
  • Nuova: E-43/0.
  • GE: 6600-1278-600.
• G0-430 (Maxtec Equivalent) Specifications:
  • Response Time: < 17 seconds.
  • Connector Type: Gold plated slip rings.
• R109P07 (Maxtec) Specifications:
• Output: 25 to 35 mV.
• Response Time: ‰¤ 17 seconds.
• Linearity: 3.0% of full scale.

Maxtec MAX-43 O Cell Configurations:

• G0-430: Maxtec MAX-43 Cell Equivalent. Manufactured by Cables and Sensors.
• R109P07: Maxtec MAX-43 Cell. Manufactured by Maxtec.

Maxtec MAX-43 O Cell Literature:

Maxtec KOH Oxygen Sensors Safety Data Sheet

Maxtec MAX-43 Oxygen Cell Specifications Sheet
