Description

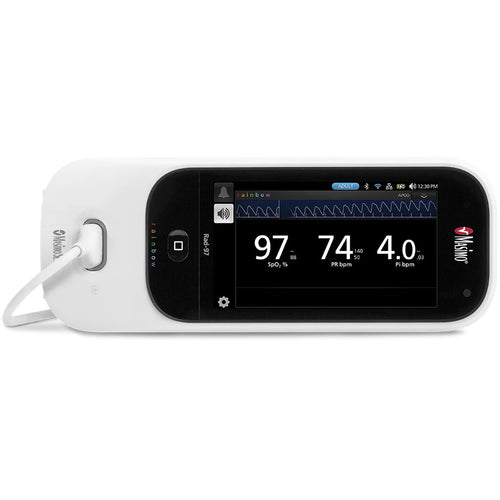

The Masimo Rad-97 Pulse CO-Oximeter includes a patient cable and power cord.
Warranty: 1 Year - Free from Defects in Workmanship or Materials.
The Rad-97 is a highly customizable pulse co-oximeter that allows clinicians to tailor the monitor to best suit their patient monitoring needs. Its customizable display allows for quick assessment of patient status and provides pertinent data at a glance.
The Rad-97 patient monitor features Masimo SET Measure-through Motion and Low Perfusion pulse oximetry with Oxygen Saturation (SpO), Pulse Rate (PR), Perfusion Index (Pi), and Pleth Variability Index (PVi) all standard. It can also be upgraded with rainbow SET technology including Total Hemoglobin (SpHb), Methemoglobin (SpMet), Carboxyhemoglobin (SpCO), Oxygen Content (SpOC), and Acoustic Respiration Rate (RRa).
Features
Masimo Rad-97 Pulse CO-Oximeter Features
- Bright, high resolution LCD color display.
- Automatic display rotation.
- Customizable display allows for quick assessment of patient status and provides pertinent data at a glance.
- Configurable patient profile settings for a variety of patient populations.
- Connectivity solutions for electronic charting of patient data in the EMR, automated by Patient SafetyNet or Iris Gateway.
- Communication Options: WiFi (802.11abg), Bluetooth LE, nurse call interface, ethernet, USB port.
- Ambient light sensor automatically adjusts screen brightness, optimizing visibility.
- Profile icon changes and home button illuminates in corresponding colors to provide visual indicators of the current Profile setting.
- System status light provides visual indications of alarms and system messages.
- Rechargeable Li-ion battery holds approximately four hours of power.
- Swivel foot provides additional support when in vertical orientation.
- AC power connector (110 V / 220 V, 47 to 63 Hz) provides a more secure hold between power cable and device.
- Trend 96 hours of parametric data to analyze patient status over time.
- Connector: Slim profile design provides tactile feedback upon proper connection.
- Audible and visual alarms for quick identification of alarming parameter.
Specifications
Masimo Rad-97 Pulse CO-Oximeter Specifications
- Weight: 2 lb (0.91 kg).
- Dimensions: 9" x 6.5" x 4" (22.9 cm x 16.5 cm x 10.2 cm).
- Environmental Operating Temperature: 32 to 104 °F (0 to 40 °C).
- Environmental Atmospheric Pressure: 540 to 1,060 mBar.
- Mode of Operation: Continuous.
- Safety Standards: ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1, IEC/EN 60601-1, 3rd Ed.
- Pulse Oximeter Standard: ISO 80601-2-61.
- Alarm Standard: IEC 60601-1-8.
- EMC Standard: EN 60601-1-2, Class B.
- Type of Protection: Class I (AC power) / Class II (Internally Powered).
- Degree of Protection: Type BF, Defib Proof-Applied Part.
- Enclosure Degree of Protection: IP21.
Configurations
Masimo Rad-97 Pulse CO-Oximeter Configurations
- #9738: Standard (No NIBP or Capnography).
- #9797: With integrated Noninvasive Blood Pressure (NIBP) technology.
- #9799: With integrated NomoLine Capnography technology.
Literature
Masimo Rad-97 Pulse CO-Oximeter Literature
Masimo Rad-97 Telehealth Solutions Brochure
Masimo Rad-97 Pulse CO-Oximeter Service Manual
