Description

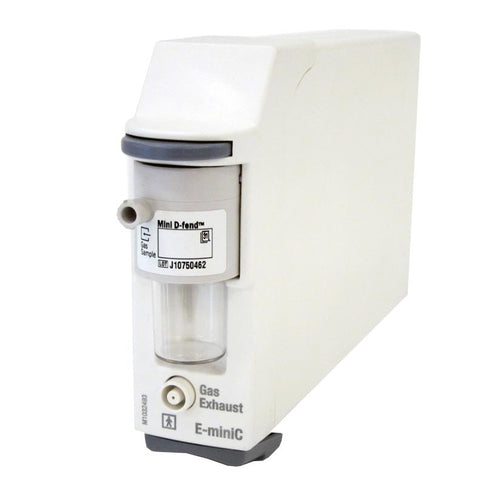

The GE E-miniC CO2 Module (#E-MINIC-00-EN) is a single width airway module that connects to GE CARESCAPE Monitors, including the GE B125, B450, and B650. It is available in both Certified Refurbished and Factory New conditions.
Warranty: 1 Year.
Features
GE E-miniC CO2 Module Features
- CO side-stream measurement is done at the patient's airway.
- Very small and reliable measurement technology.
- Inspired and end-tidal CO values displayed on the screen as waveforms and in numerical format.
- Full numerical and graphical trends of all measured data.
- Measurement of respiration rate up to 80 breaths per minute.
- Fast response time.
- Wide measurement range for CO.
- Adjustable high and low alarm limits for EtCO and FiCO.
- Manual adjustment for NO and O allowed for improved CO measurement accuracy.
- Accommodates water separation system which is lightweight and has good tolerance for tilting.
Specifications
GE E-miniC CO2 Module Specifications
- Sampling Rate: 150 +/- 25 ml/min.
- Respiration Rate:
- Measurement Range: 4 to 80 breaths/min.
- Breath Detection: 1% variation in CO level.
- Accuracy: +/- 1/min. in the range 4 to 20 breath/min. +/- 5% in the range 20 to 80 breath/min.
- Resolution: 1/min.
- Adjustable low and high limits for respiration rate; alarm for apnea.
- Carbon Dioxide:
- EtCO: End-tidal CO concentration.
- FiCO: Inspired CO concentration.
- Measurement Range: 0 to 20 vol% (0 to 20 kPa, 0 to 150 mmHg).
- Accuracy: CO concentration 0 to 15 vol% +/- (0.2 vol% + 2% of reading). CO concentration 15 to 20 vol% +/- (0.7 vol% + 2% of reading).
- Rise Time: Less than 300 ms with nominal flow.
- Adjustable low and high limits for EtCO or FiCO.
Conditions
GE E-miniC CO2 Module Conditions
- #MFI-GEH-E-MINIC-00-EN: Certified Refurbished.
- #E-MINIC-00-EN: Factory New.
