Description

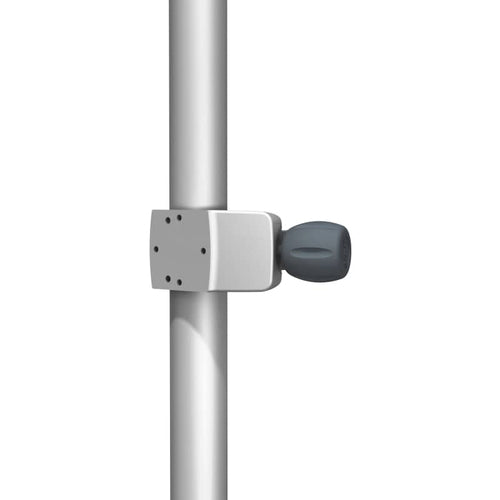

The GCX PRC Post/Rail Clamp (#PRC-0001-01) is ideal for mounting to a post or a 10 x 25 mm rail - one clamp works for both applications. The compact, durable design provides the performance expected from a GCX product. A device can be interfaced directly to the clamp, or an adapter plate can be designed to ensure compatibility.
Warranty: 1 Year.
Features
GCX PRC Post/Rail Clamp Features
- Comfort grip for ease of use.
- One clamp, multiple uses.
- Compact yet durable design.
Specifications
GCX PRC Post/Rail Clamp Specifications
- Post Grip Range: 0.75 to 1.5" (19 to 38 mm).
- Rail Grip Range: 10 mm x 25 mm.
- Interface Options:
- 2X M4 thru holes 1.455" (37 mm) hole centers.
- 4X 10-32 tapped holes 1.6" x 1.6" (40.6 mm x 40.6 mm) diamond pattern.
- Duty Rating: 30 lb (13.6 kg).
- Materials:
- Die cast aluminum.
- Stainless steel.
- Injection molded santoprene.
- Finish: Clear E Coating - withstands hospital cleaning solutions.
- Dimensions: 5.13" (L) x 2" (W) x 2.5" (D) (13 cm x 5.1 cm x 6.4 cm).
Literature
GCX PRC Post/Rail Clamp Literature
GCX Mounting Clamp Installation Guide
