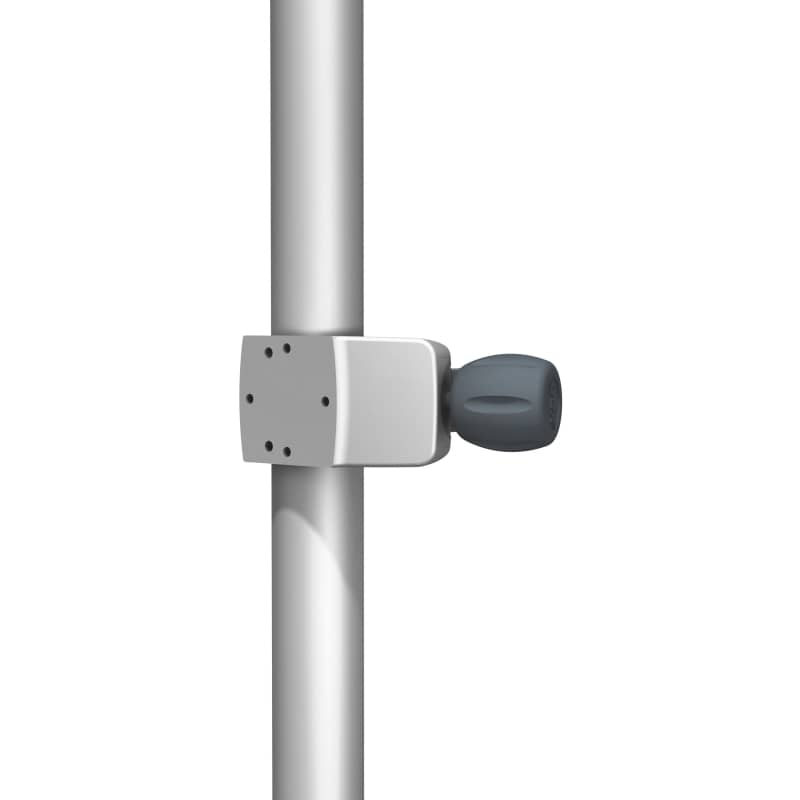

GCX PRC Post/Rail Clamp

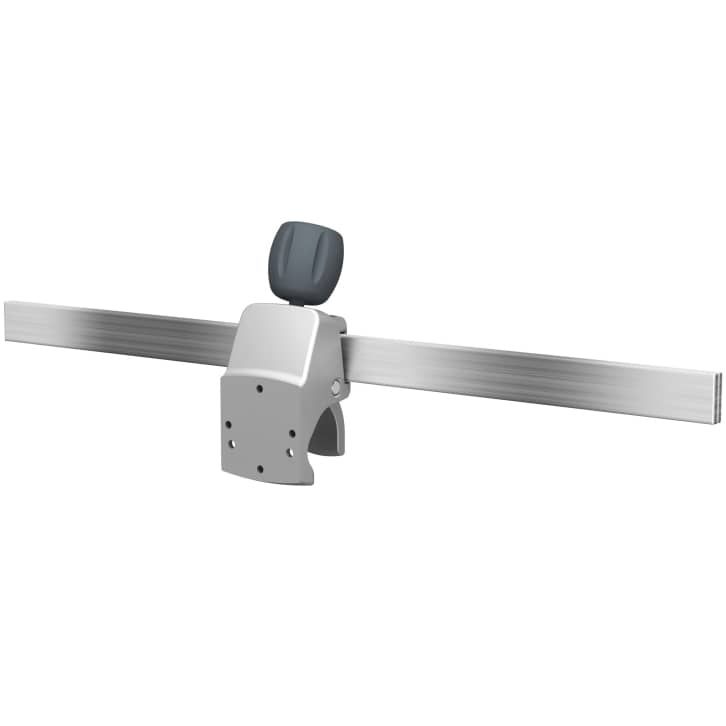

GCX PRC Post/Rail Clamp horizontal attachment

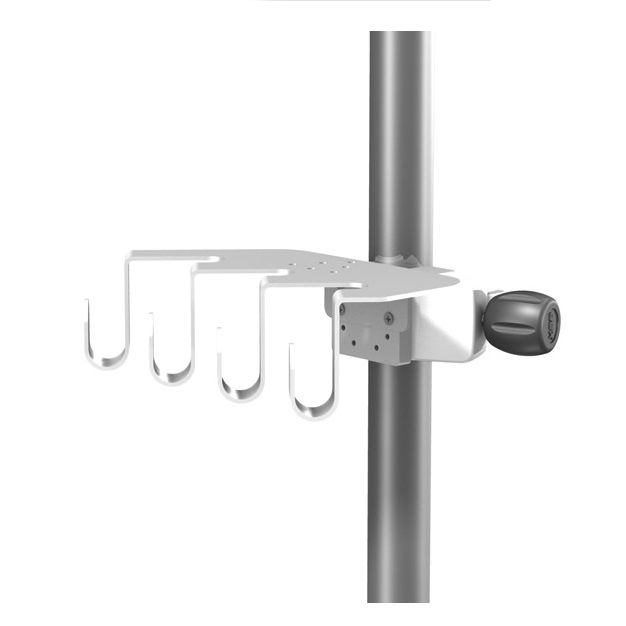

GCX PRC Post/Rail Clamp with attachment

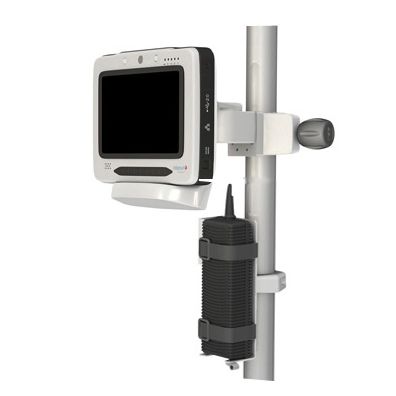

GCX PRC Post/Rail Clamp with patient monitor

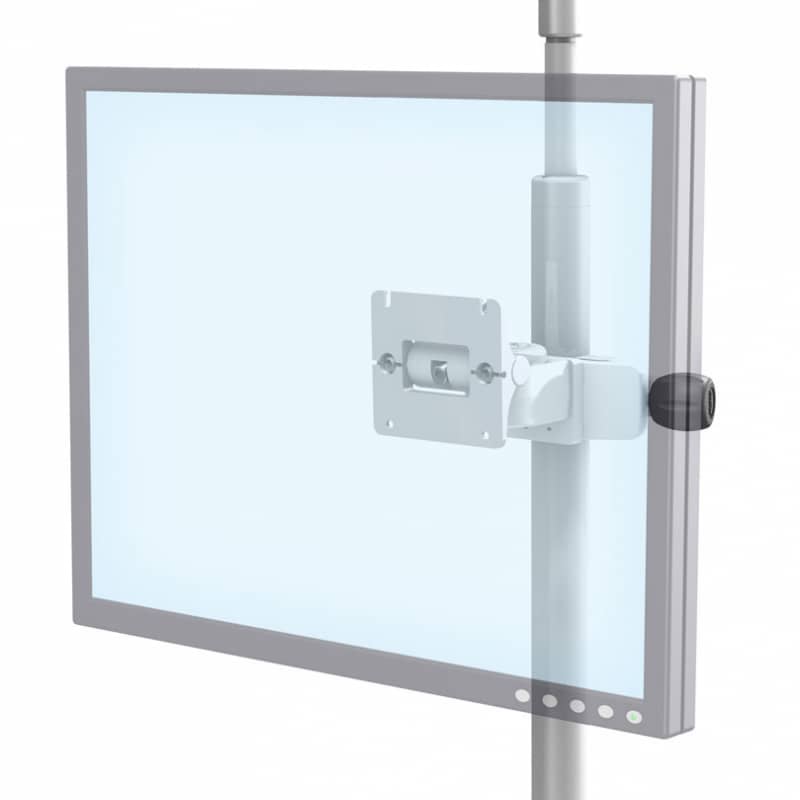

GCX PRC Post/Rail Clamp with VESA Flat Panel Monitor

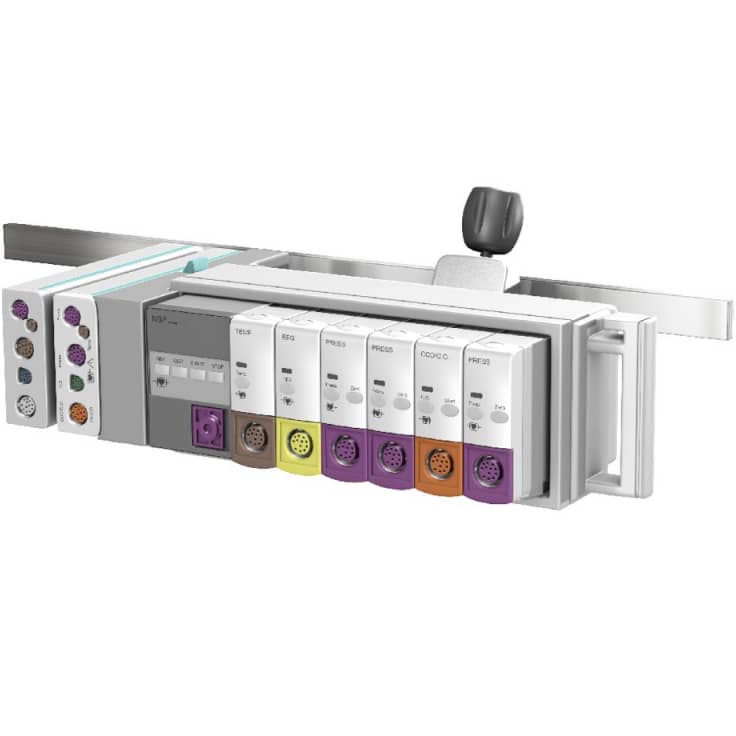

GCX PRC Post/Rail Clamp with patient monitor accessories

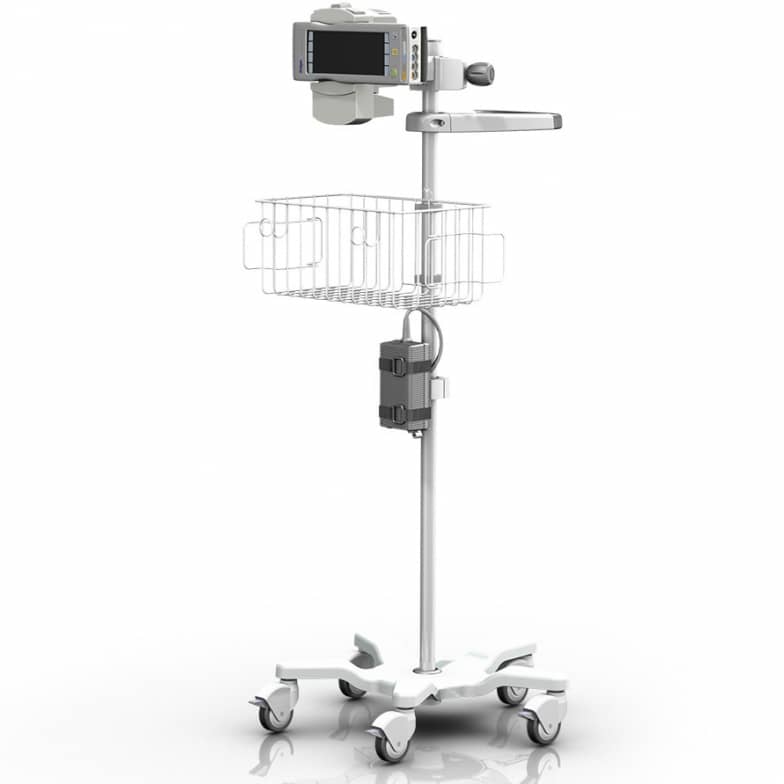

GCX PRC Post/Rail Clamp on cart
GCX PRC Post/Rail Clamp
GCX PRC Post/Rail Clamp horizontal attachment
GCX PRC Post/Rail Clamp with attachment
GCX PRC Post/Rail Clamp with patient monitor
GCX PRC Post/Rail Clamp with VESA Flat Panel Monitor
GCX PRC Post/Rail Clamp with patient monitor accessories
GCX PRC Post/Rail Clamp on cart
Key Features
  • SKU: GCX-PRC-0001-01
  • Condition: Factory New
  • Warranty: 1 Year
  • Post Grip Range: 0.75 to 1.5" (19 to 38 mm)
  • Rail Grip Range: 10 mm x 25 mm
  • Duty Rating: 30 lb (13.6 kg)
  • Ideal for mounting to a post or a 10 x 25 mm rail - one clamp works for both applications

  • Learn more:

Contact The Manufacturer
  • MFR: GCX Ships from MFI Medical
  • MPN: PRC-0001-01
  • Phone: (800) 228-2555
$87.43

+Free Shipping*

Only 11 In Stock

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The GCX PRC Post/Rail Clamp (#PRC-0001-01) is ideal for mounting to a post or a 10 x 25 mm rail - one clamp works for both applications. The compact, durable design provides the performance expected from a GCX product. A device can be interfaced directly to the clamp, or an adapter plate can be designed to ensure compatibility.

Warranty: 1 Year.

Features

GCX PRC Post/Rail Clamp Features

  • Comfort grip for ease of use.
  • One clamp, multiple uses.
  • Compact yet durable design.

Specifications

GCX PRC Post/Rail Clamp Specifications

  • Post Grip Range: 0.75 to 1.5" (19 to 38 mm).
  • Rail Grip Range: 10 mm x 25 mm.
  • Interface Options:
    • 2X M4 thru holes 1.455" (37 mm) hole centers.
    • 4X 10-32 tapped holes 1.6" x 1.6" (40.6 mm x 40.6 mm) diamond pattern.
  • Duty Rating: 30 lb (13.6 kg).
  • Materials:
    • Die cast aluminum.
    • Stainless steel.
    • Injection molded santoprene.
  • Finish: Clear E Coating - withstands hospital cleaning solutions.
  • Dimensions: 5.13" (L) x 2" (W) x 2.5" (D) (13 cm x 5.1 cm x 6.4 cm).

Frequently asked questions

What post sizes is the GCX PRC Post/Rail Clamp compatible with?

The GCX PRC Post/Rail Clamp is compatible with posts ranging from 0.75 to 1.5 inches (19 to 38 mm).

What rail size does the GCX PRC Post/Rail Clamp accommodate?

The GCX PRC Post/Rail Clamp is designed to be used with 10 x 25 mm rails.

What is the weight capacity of the GCX PRC Post/Rail Clamp?

The GCX PRC Post/Rail Clamp has a duty rating of 30 lb (13.6 kg).

What materials are used in the construction of the GCX PRC Post/Rail Clamp?

The GCX PRC Post/Rail Clamp is constructed with:

  • Die-cast aluminum
  • Stainless steel
  • Injection molded santoprene
What kind of finish does the GCX PRC Post/Rail Clamp have?

The GCX PRC Post/Rail Clamp features a clear E coating designed to withstand hospital cleaning solutions.

What are the dimensions of this clamp?

The GCX PRC Post/Rail Clamp features a compact design ideal for clinical environments. Its overall dimensions (Length x Width x Depth) are:

  • Length: 5.13 inches (13 cm)
  • Width: 2 inches (5.1 cm)
  • Depth: 2.5 inches (6.4 cm)
Where is the GCX PRC Post/Rail Clamp typically used?

The GCX PRC Post/Rail Clamp is ideal for use in hospitals, clinics, and other healthcare settings to enhance the mobility and accessibility of medical devices.

What device mounting interface options are available?

The GCX PRC Post/Rail Clamp provides multiple standardized interfaces for securely attaching devices or adapter plates directly to the clamp body. This enhances versatility for various medical or technical devices.

The available interface options are:

  • Two (2X) M4 thru holes with 1.455-inch (37 mm) hole centers.
  • Four (4X) 10-32 tapped holes arranged in a 1.6 in x 1.6 in (40.6 mm x 40.6 mm) diamond pattern.
How does the comfort grip enhance the use of the GCX PRC Post/Rail Clamp?

The comfort grip on the GCX PRC Post/Rail Clamp enhances ease of use, making it simpler to tighten and adjust the clamp.

Does the clamp offer dual mounting capability?

Yes, the GCX PRC Post/Rail Clamp features dual mounting capability, making it highly versatile for mounting devices in various clinical settings. It is engineered to securely attach to two distinct types of surfaces:

  • Vertical Posts: Grips posts ranging from 0.75 to 1.5 inches (19 to 38 mm).
  • Horizontal Rails: Clamps standard 10 mm x 25 mm rails.
