Description

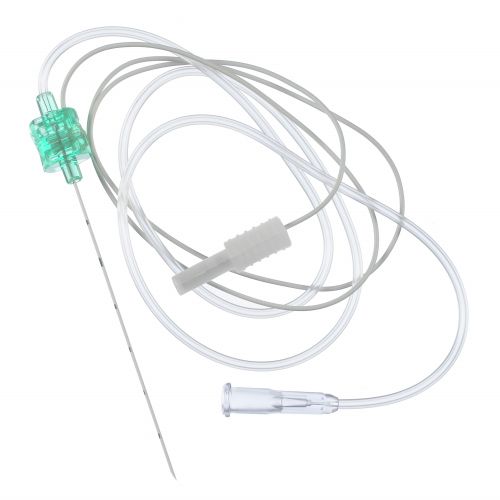

The B. Braun Stimuplex D Insulated Needle with Extension Set (25/Case) makes use of a micro-point electrode tip to concentrate the current for precise nerve location.
Warranty: Not Available.
Note: For use with HNS11/12 Nerve stimulators.
Available with either a 15° or 30° microdot electrode, the B. Braun Stimuplex D Insulated Needle features an extension set. This stimulating, non-echogenic needle is specially designed for single-shot nerve block.
Features
B. Braun Stimuplex D Insulated Needle with Extension Set Features
- Fully coated stimulation needle.
- Attraumatic non-cutting 15° or 30° bevel.
- Pin point electrode allows for more pronounced motor response at closer nerve to needle distances.
Specifications
B. Braun Stimuplex D Insulated Needle with Extension Set Specifications
| Configuration | BPA Information | DEHP Information | Latex Information | PVC Information | Total Shelf Life (Months) | Ordering Unit | Units per Case | Dimensions per Case | Shipping Weight per Case | Sterile |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 Ga x 1-3/8 in (35 mm) with 15° Bevel | Components do not contain BPA | Components do not contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 23 Ga x 2-3/4 in (70 mm) with 15° Bevel | Components do not contain BPA | Components do not contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 22 Ga x 3-1/8 in (80 mm) with 15° Bevel | Components do not contain BPA | Components do not contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.772 lb | Yes |
| 22 Ga x 3-1/8 in (80 mm) with 30° Bevel | Components do not contain BPA | Components do not contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 22 Ga x 2 in (50 mm) with 30° Bevel | Components do not contain BPA | Components do not contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 22 Ga x 4-3/8 in (120 mm) with 15° Bevel | Components do not contain BPA | Components do contain DEHP | Components do not contain natural rubber | Contains PVC | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.992 lb | Yes |
Configurations
B. Braun Stimuplex D Insulated Needle with Extension Set Configurations
- #333670: 25 Ga x 1-3/8 in (35 mm) with 15° Bevel.
- #333672: 23 Ga x 2-3/4 in (70 mm) with 15° Bevel.
- #333674: 22 Ga x 3-1/8 in (80 mm) with 15° Bevel.
- #333684: 22 Ga x 3-1/8 in (80 mm) with 30° Bevel.
- #333689: 22 Ga x 2 in (50 mm) with 30° Bevel.
- #333676: 22 Ga x 4-3/8 in (120 mm) with 15° Bevel.
Literature
B. Braun Stimuplex D Insulated Needle with Extension Set Literature
B. Braun Stimuplex HNS12 with SENSe Nerve Stimulator Brochure
