Condition:
Factory New
-
Warranty:
Not Available
- Weight: 0.88 lb
-
Learn more:
-
MFR:
B. Braun
Ships from MFI Medical
-
MPN: 333672
- Phone: (800) 227-2862
+Free Shipping*
Shop with Confidence
Free Shipping
Free Returns
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions

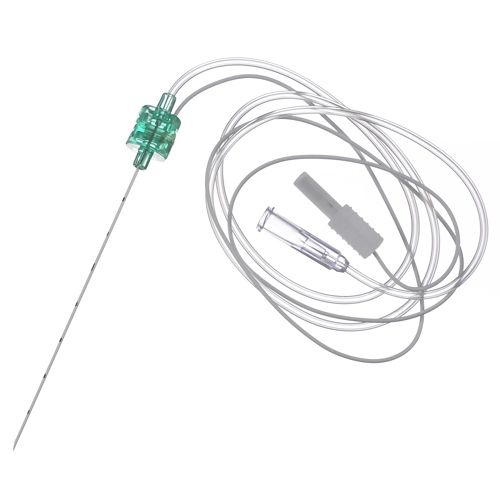

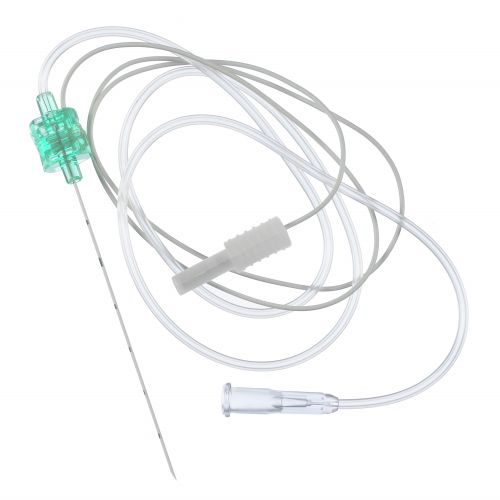

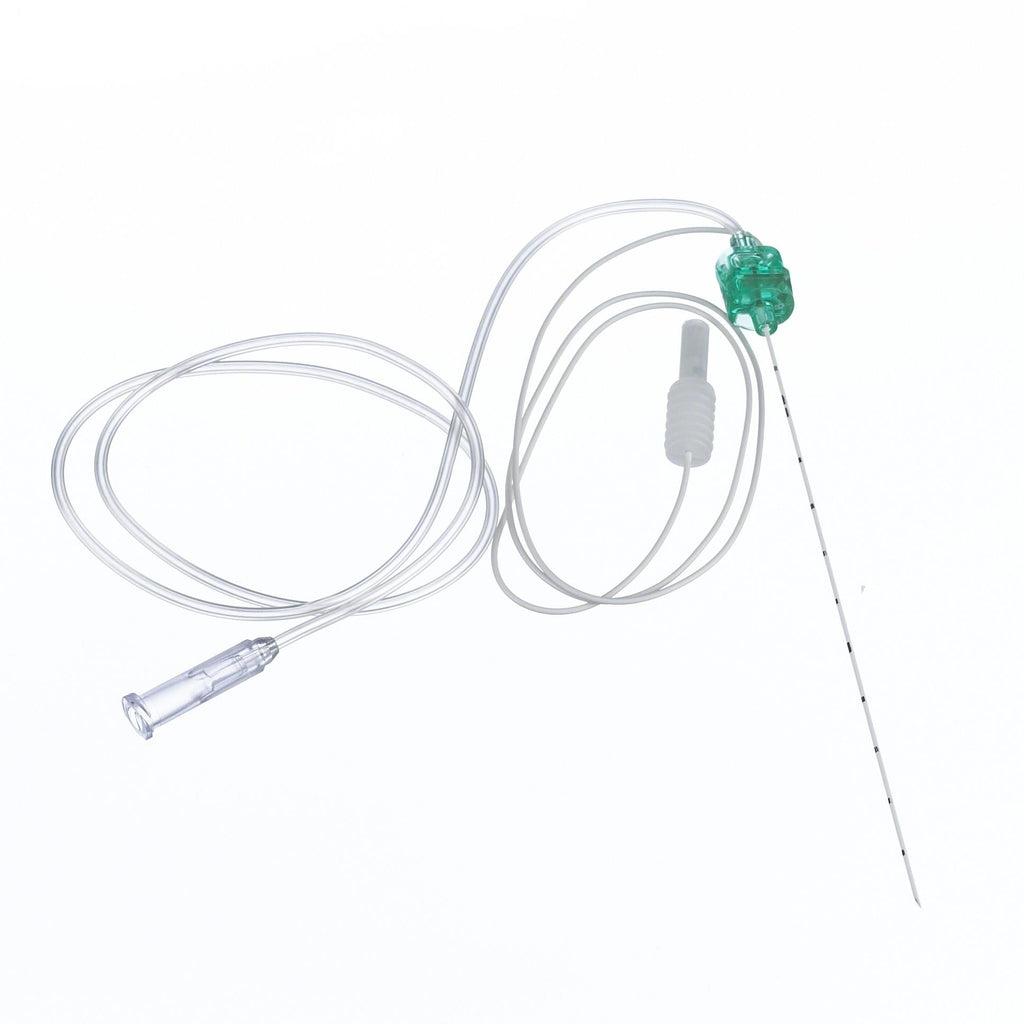

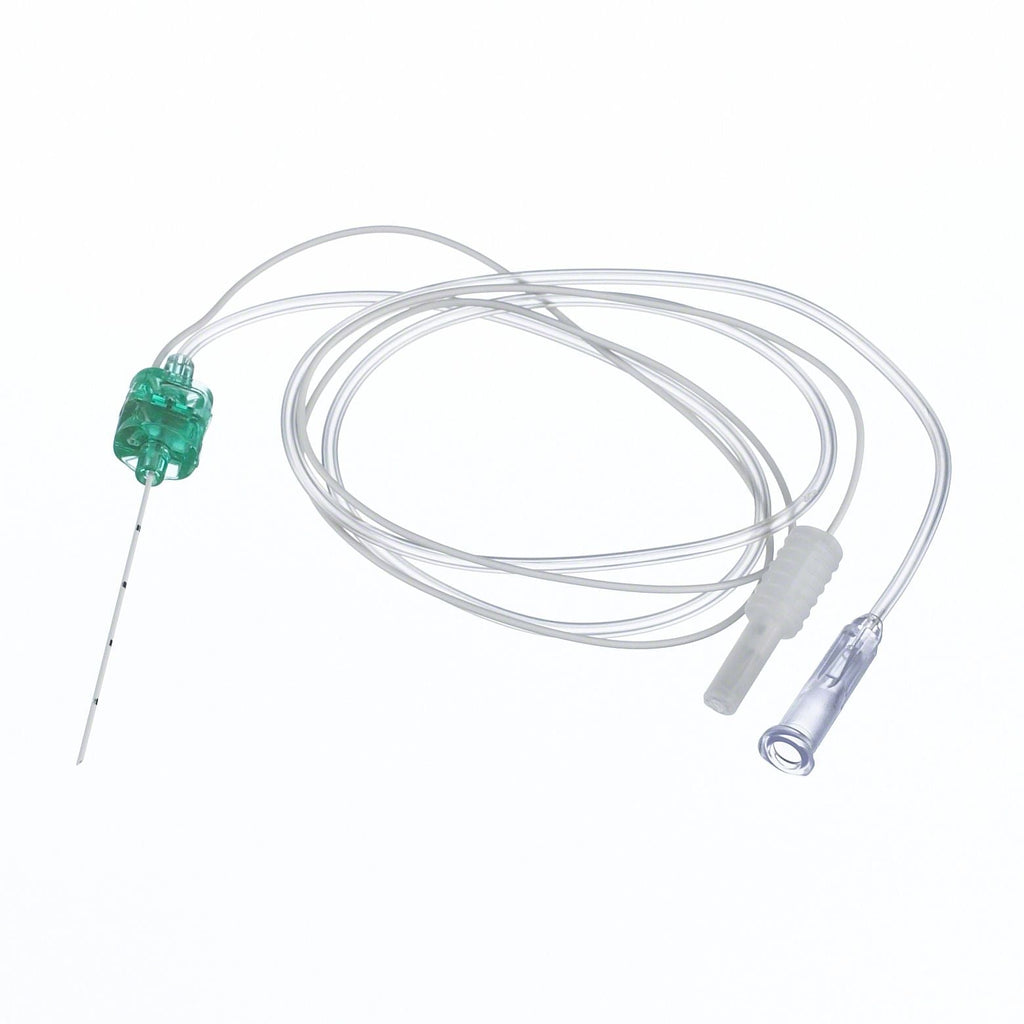

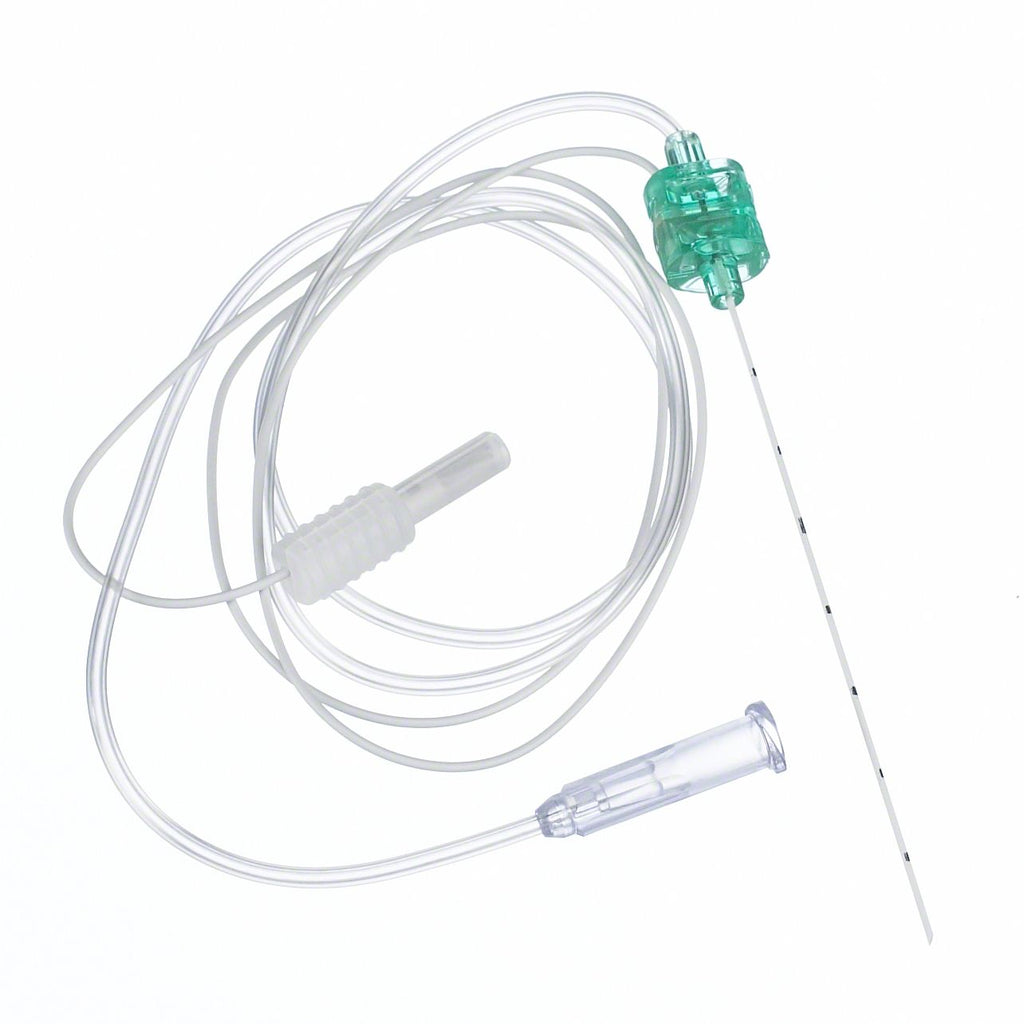

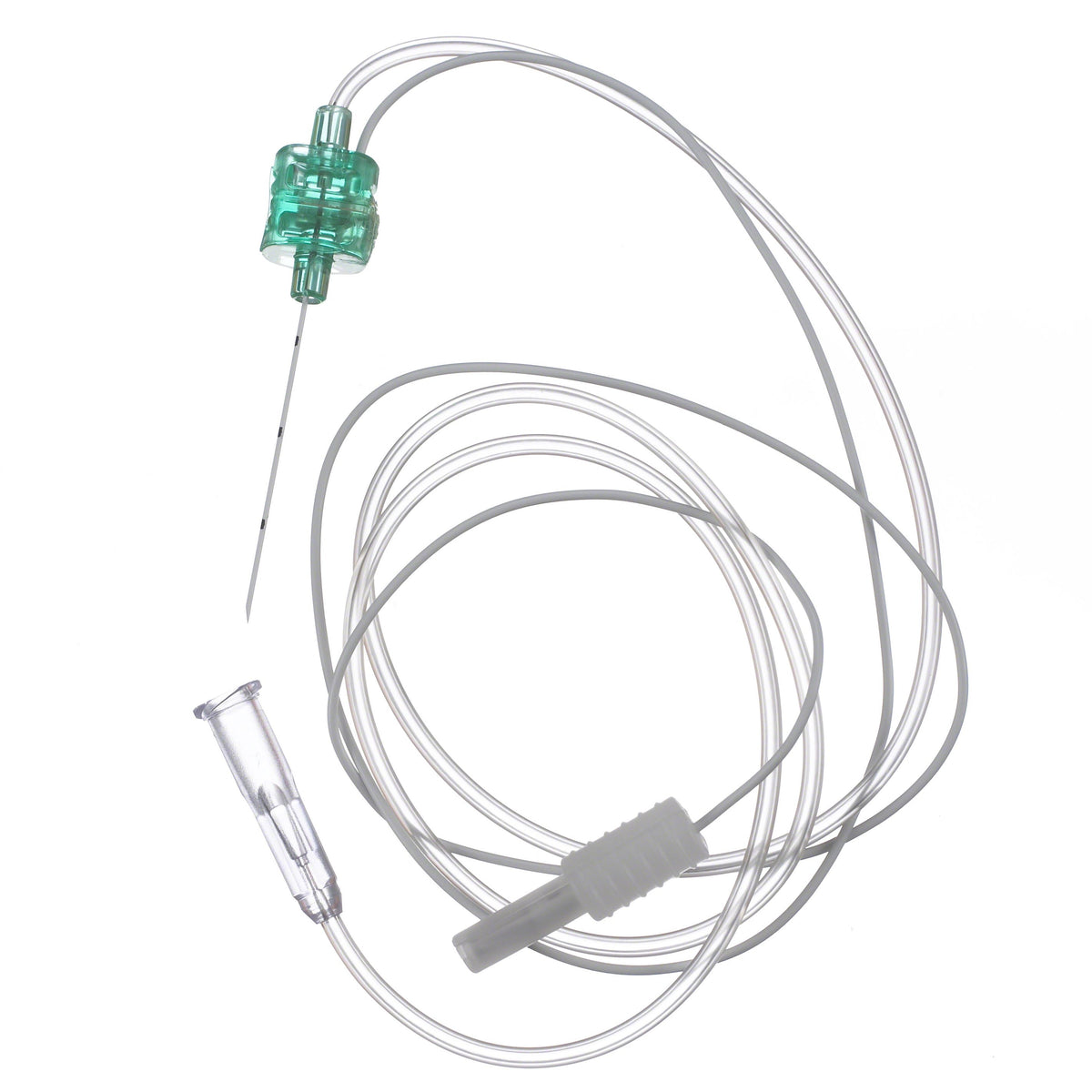

What is the B. Braun Stimuplex D needle used for?
The B. Braun Stimuplex D needle is designed for single-shot nerve block procedures. It utilizes a micro-point electrode tip to concentrate current, allowing for very precise nerve location during the procedure.
What atraumatic bevel angles are offered?
The B. Braun Stimuplex D Insulated Needle features an atraumatic, non-cutting bevel designed to minimize tissue trauma during single-shot nerve block procedures. It is offered in two precise angle options:
- 15° Bevel
- 30° Bevel
All configurations include a micro-point electrode tip to ensure high current concentration for accurate nerve localization and a pronounced motor response.
Are the needle components BPA and latex free?
Yes, the B. Braun Stimuplex D Insulated Needle components are confirmed to be BPA-free and do not contain natural rubber latex.
However, shoppers should be aware of the following material details:
- The product composition generally includes PVC (Polyvinyl Chloride).
- The presence of DEHP (Di-2-ethylhexyl phthalate) varies by configuration. While most components are designed to avoid DEHP, some specific gauge/length variants may contain it. It is essential to check the specific configuration details if DEHP content is a concern.
How many needles come in a case of B. Braun Stimuplex D Insulated Needles?
Each case of B. Braun Stimuplex D Insulated Needles contains 25 individual needles, each with its own extension set.
Which nerve stimulators are compatible with the B. Braun Stimuplex D needle?
The B. Braun Stimuplex D needle is compatible with HNS11/12 Nerve Stimulators. Ensure you are using a compatible stimulator to achieve optimal performance.
What needle gauge and bevel options are available?
The B. Braun Stimuplex D needle is designed for precise, single-shot nerve block procedures and features an atraumatic, non-cutting bevel to optimize approach and minimize tissue trauma. All variants use a fully coated stimulation needle with a micro-point electrode tip for concentrated current delivery and precise nerve localization.
Available configuration options include:
- Bevel Angles: You can select a 15 deg; or 30 deg; microdot bevel angle.
- Needle Gauges: Offered in 25 Ga, 23 Ga, and 22 Ga.
- Needle Lengths: Available lengths range from 1-3/8 inch (35 mm) up to 4-3/8 inch (120 mm).
Is the needle system BPA and latex-free?
Yes, the B. Braun Stimuplex D Insulated Needle with Extension Set is free from several common sensitizers:
- BPA-Free: The components do not contain BPA.
- Latex-Free: The system is free from natural rubber latex.
Important Material Disclosures
It is important to note the presence of other materials:
- The product composition generally contains PVC.
- The presence of DEHP (a plasticizer) varies by configuration. While most variants are DEHP-free, some specific configurations may contain DEHP.
Does the micro-point tip ensure accurate nerve location?
Yes, the Stimuplex D needle is engineered with a micro-point electrode tip to ensure accurate nerve location during single-shot nerve block procedures. This key feature works by concentrating the electrical current, leading to precise nerve stimulation.
What sizes and atraumatic bevel angles are offered?
The Stimuplex D needle is designed with an atraumatic, non-cutting microdot bevel (available in 15° and 30°) to optimize the approach during single-shot nerve block procedures.
The available configurations offer various combinations of gauges, lengths, and bevel angles:
| Gauge | Length | Bevel Angle |
|---|---|---|
| 25 Ga | 1-3/8 in (35 mm) | 15° |
| 23 Ga | 2-3/4 in (70 mm) | 15° |
| 22 Ga | 2 in (50 mm) | 30° |
| 22 Ga | 3-1/8 in (80 mm) | 15° |
| 22 Ga | 3-1/8 in (80 mm) | 30° |
| 22 Ga | 4-3/8 in (120 mm) | 15° |
Does this needle feature precise nerve location?
Yes, the B. Braun Stimuplex D Insulated Needle is specifically engineered for precise nerve location during single-shot nerve block procedures. This accuracy is achieved through advanced design features:
- Micro-Point Electrode Tip: This design concentrates the electrical current, enabling precise localization.
- Enhanced Motor Response: The pin-point electrode allows for a more pronounced motor response, even when the needle is close to the nerve.
- Attraumatic Bevel: The non-cutting bevel (available in 15° or 30° angles) is designed for atraumatic tissue navigation.
Please note that this stimulating needle requires compatibility with HNS11/12 Nerve stimulators.
B. Braun Stimuplex D Insulated Needle...
