Description

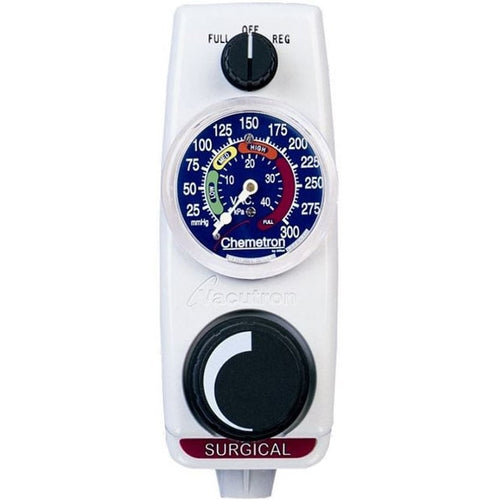

The Allied Healthcare Vacutron Surgical Suction Regulator is a reliable suction device specifically designed for surgical suites and procedures. Available with two operational modes: regulated vacuum and full line mode.
Warranty: 10 Years.
Caregivers have access to a vacuum level between 0 and 300 mm Hg, and also has a full line mode that delivers unregulated vacuum pressure equal to vacuum line pressure. For safety, there's an internal safety relief valve that monitors the maximum vacuum level and keeps it restricted to 320 mm Hg. This device is available in United States models only.
Features
Allied Healthcare Vacutron Surgical Suction Regulator Features
- Safety relief valve restricts maximum vacuum level to 320 mm Hg.
- Regulation ensures stable suction.
- Full line mode issues unregulated suction and vacuum line pressure.
- Available in United States-compatible models only.
Specifications
Allied Healthcare Vacutron Surgical Suction Regulator Specifications
- Dimensions: 6.8" (H) x 2.65" (W) x 4.07" (D) (17.3 cm x 6.7 cm x 10.4 cm).
- Weight: 1.3 lb (0.59 kg).
- Operating Modes: OFF, Regulated, and Full Line.
- Regulated Vacuum Range: 0 - 300 mm Hg.
- Safety Relief Valves: 1 @ 320 mm Hg.
- Vacuum Gauge Scale:
- 0 - 300 mm Hg in 5 mm Hg increments.
- 0 - 40 kPa in 2 kPa increments
Configurations
Allied Healthcare Vacutron Surgical Suction Regulator Configurations
Please note that these configurations are United States-compatible only. No international configurations available.
| Configuration | Inlet to Wall Fitting | Outlet to Patient Fitting |
|---|---|---|
| #22-12-0100 | 1/8" NPT Female | DISS Male |
| #22-12-0102 | Serrated Hose Stem | DISS Male |
| #22-12-1100 | 1-1/4" x 1/8" NPT Extension | DISS Male |
| #22-12-1104 | Oxequip Med*Star | DISS Male |
| #22-12-1105 | Puritan Bennett | DISS Male |
| #22-12-1106 (recommended) | Ohmeda Diamond | DISS Male |
| #22-12-1107 | DISS Female | DISS Male |
| #22-13-1108 (recommended) | Chemetron Quick-Connect | DISS Male |
| #22-12-1111 | DISS Hand Tight | DISS Male |
| #22-12-1113 (recommended) | Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) | DISS Male |
| #22-12-0200 | 1/8" NPT Female | Metal Barbed Stem |
| #22-12-1200 | Extension 1-1/4" x 1/8" NPT | Metal Barbed Stem |
| #22-12-1204 | Oxequip Med*Star | Metal Barbed Stem |
| #22-12-1205 | Puritan Bennett | Metal Barbed Stem |
| #22-12-1206 (recommended) | Ohmeda Diamond | Metal Barbed Stem |
| #22-12-1207 | DISS Female | Metal Barbed Stem |
| #22-12-1208 (recommended) | Chemetron Quick-Connect | Metal Barbed Stem |
| #22-12-1211 | DISS Hand Tight | Metal Barbed Stem |
| #22-12-1213 (recommended) | Chemetron Quick-Connect / round striker (for pre-1966 Chemetron outlets) | Metal Barbed Stem |
| #22-12-0402 | Serrated Hose Stem | 45° DISS Male |
| #22-12-1406 | Ohmeda Diamond | 45° DISS Male |
| #22-12-1408 | Chemetron Quick-Connect | 45° DISS Male |
| #22-13-1506 | Ohmeda Diamond | Bacteria Filter |
| #22-13-1508 | Chemetron Quick-Connect | Bacteria Filter |
Accessories
Allied Healthcare Vacutron Surgical Suction Regulator Accessories
The Allied Healthcare Vacutron Surgical Suction Regulator is typically purchased with:
- Disposable Collection Canisters.
- Collection Canister Carrier.
- Canister Holder.
- Specimen Bag.
- Critical Measurement Insert.
Literature
Allied Healthcare Vacutron Surgical Suction Regulator Literature
Allied Healthcare Vacutron Suction Regulators and Accessories Guide
